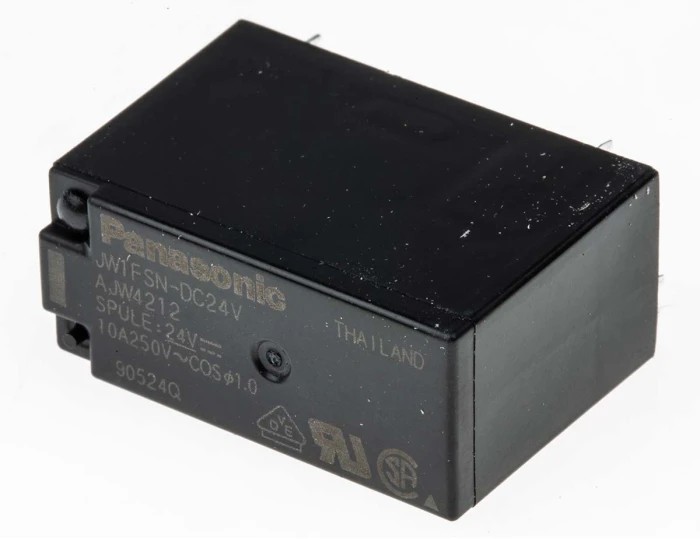

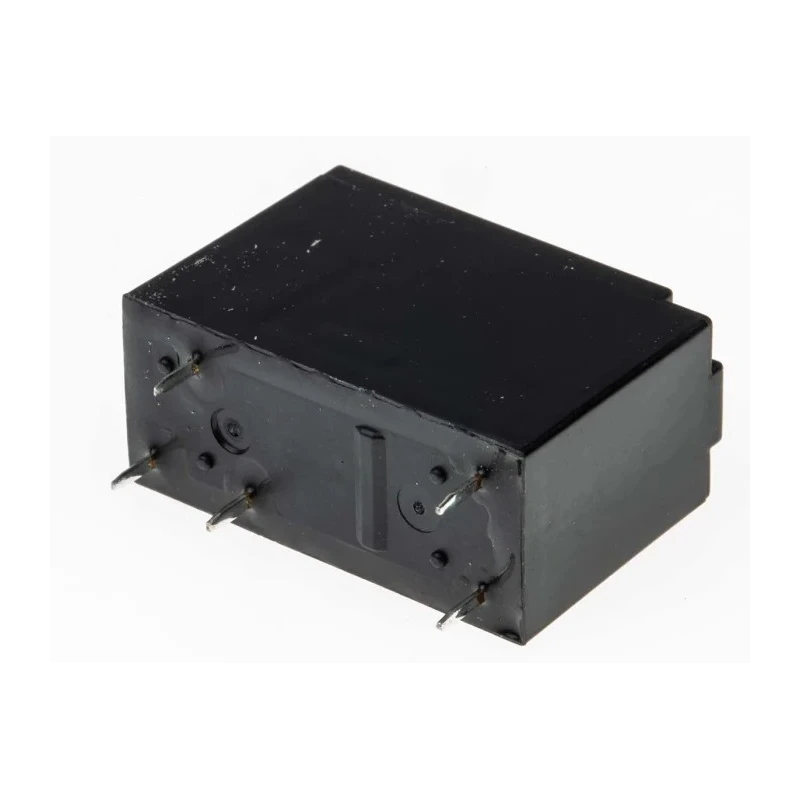

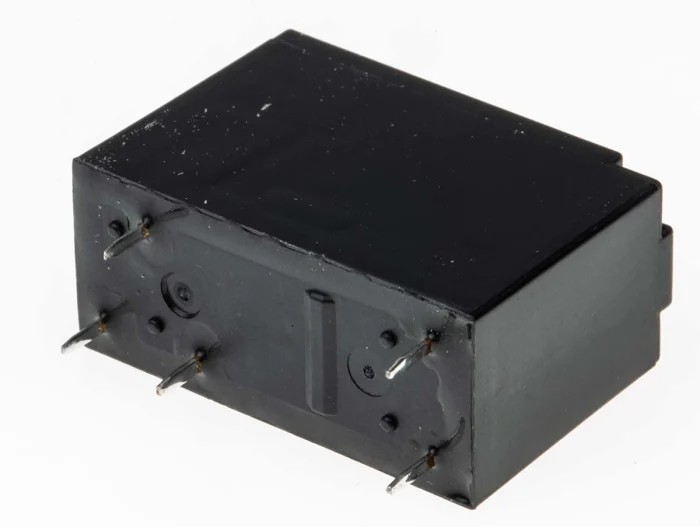

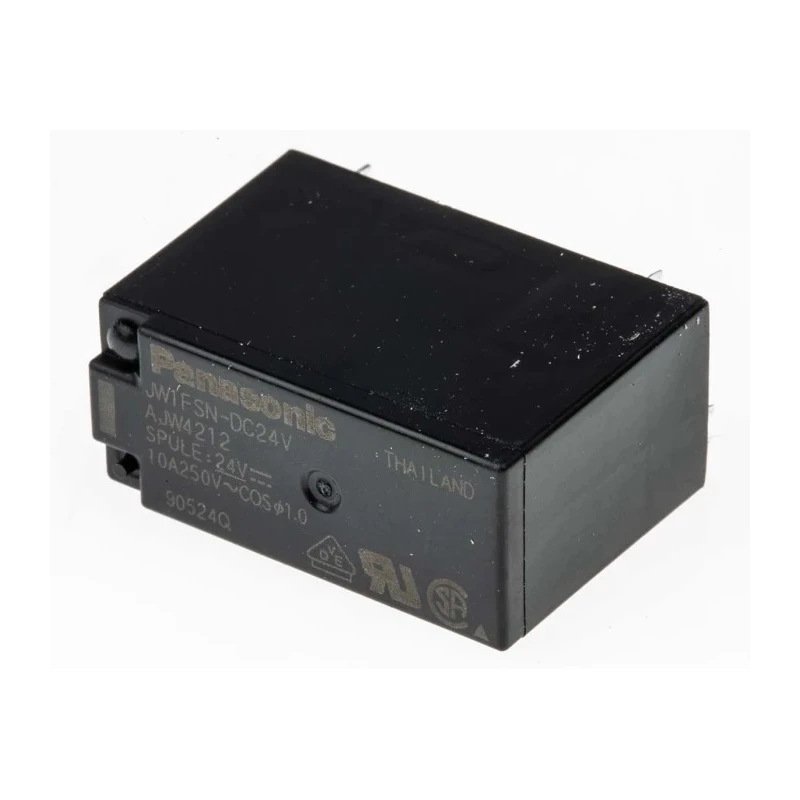

Panasonic PCB Power Relay 24V dc Coil 4mA Switching Current SPDT JW1FSN-DC24V
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Panasonic |
| Height | 20mm |
| Length | 28.6mm |
| Model | JW1FSN-DC24V |
| Width | 12.8mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | JW |
| Maximum Operating Temperature | 60°C |
| Contact Configuration | SPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 4mA |
| Terminal type | Through Hole |
| Standards/Approvals | VDE, TUV, CE, RoHS, UL, IEC |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 115V ac |
| Coil Power | 4kW |
Key Features
- The relay operates with a coil voltage of 24V dc ensuring efficient power control.
- Features a Silver Alloy contact material for durable and reliable contact performance.
- Designed with through-hole terminal type for easy PCB mounting compatibility.
- Operates within a temperature range of -40°C to 60°C suitable for various environments.
- High switching power capability up to 2.5 kVA and AC switching voltage rating of 115V ac.
- Coil resistance is 1.1 kΩ with coil power rating of 4kW facilitating stable coil operation.
- JW series relays are sealed construction with high surge withstand capability up to 10,000V.
- Approved by standards VDE, TUV, CE, RoHS, UL, and IEC ensuring compliance and safety.
Product Description
Panasonic JW1FSN-DC24V PCB Power Relay is a high-quality, sealed monostable power relay featuring a 24V dc coil voltage and a low switching current of 4mA. It is designed for PCB mounting with through-hole terminals and offers a Silver Alloy contact configuration of SPDT (Single Pole Double Throw), making it suitable for a diverse range of electrical switching applications.
This relay supports a maximum switching power of 2.5 kVA and switching AC voltage of up to 115V ac. The coil resistance is 1.1 kΩ, and the coil power is rated at 4kW, ensuring stable operation with efficient energy use. The unit measures 20mm in height, 12.8mm in width, and 28.6mm in length, providing a compact solution for space-constrained industrial and commercial environments.
Engineered to withstand extreme conditions, it functions reliably within an operating temperature window of -40°C to 60°C, making it robust for both ambient and harsh industrial conditions. The sealed construction enhances durability and protects against environmental contaminants, while a high surge withstand surge rating of 10,000V between contacts and coil demonstrates exceptional resilience.
Compliant with international standards such as VDE, TUV, CE, RoHS, UL, and IEC, this relay assures quality and safety. Its applications span across home appliances, office machines, and a variety of industrial equipment, providing dependable switching performance.
The relay’s SPDT contact configuration offers versatile switching control. Coil voltage and power ratings support efficient circuit integration. Compact form factor allows ease of PCB mounting and layout flexibility. Sealed design ensures long operational life even in challenging environments.
International standards approvals ensure regulatory compliance and safety. High surge withstand capability protects against transients and voltage spikes. Suitable for industrial, manufacturing, automation, and home appliance applications.
Explore further Panasonic Power Relays at EnvMart for reliable, high-performance electrical switchgear options for your projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is 24V DC, ensuring efficient power control during operation.
This model has a maximum switching power capability of 2.5 kVA, making it suitable for various electrical applications.
The contact configuration of this relay is SPDT (Single Pole Double Throw), providing versatile switching control.
The coil resistance is 1.1 kΩ, which facilitates stable coil operation.
The relay measures 20mm in height, 12.8mm in width, and 28.6mm in length, providing a compact design for PCB mounting.
It operates within a temperature range of -40°C to 60°C, making it suitable for various environments.
The switching AC voltage rating for this relay is up to 115V AC.
This model features through-hole terminals, allowing for easy PCB mounting compatibility.
The contact material is Silver Alloy, which contributes to reliable contact performance.
It is approved by several standards including VDE, TUV, CE, RoHS, UL, and IEC, ensuring compliance and safety.
The coil power rating is 4kW, which supports efficient energy use during operation.
This relay is suitable for applications in home appliances, office machines, and various industrial equipment.
