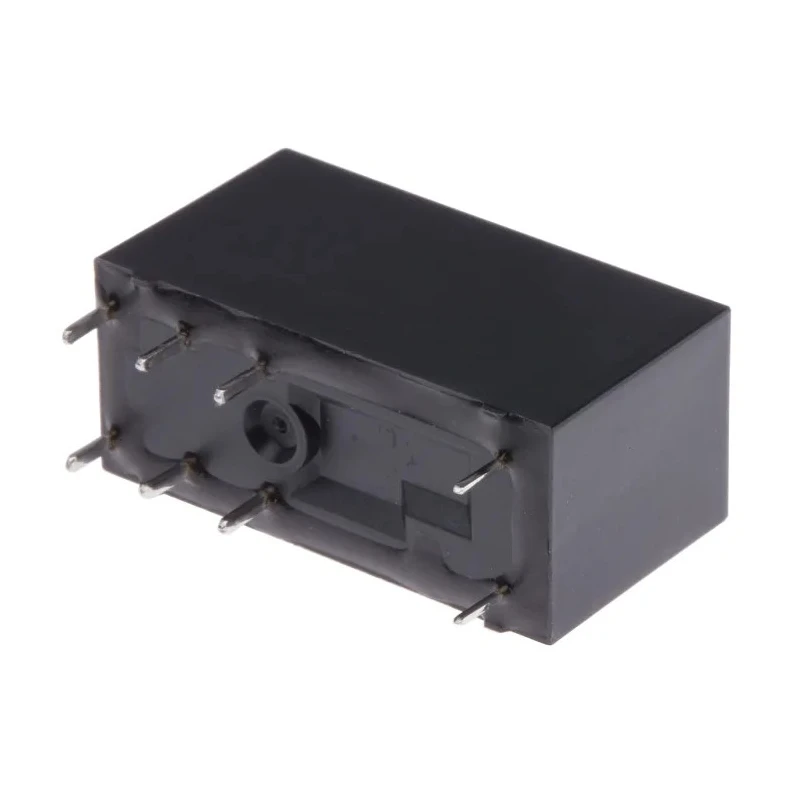

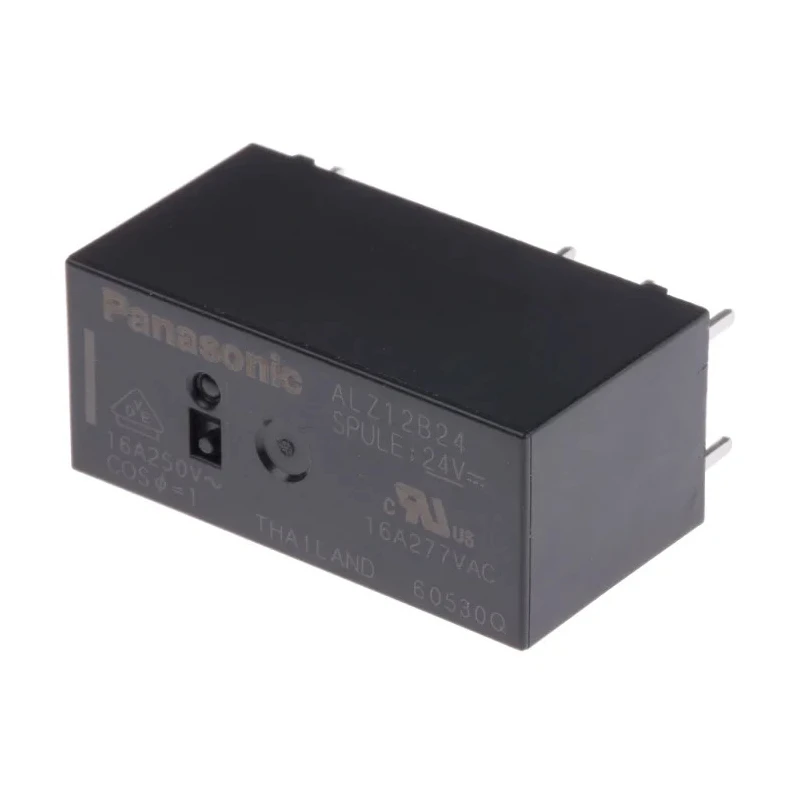

Panasonic PCB Power Relay 24V dc Coil 16A Switching Current SPDT ALZ12B24

Panasonic ALZ12B24 PCB Power Relay is a high-quality relay designed for efficient electrical switching with a 24V dc coil and 16A switching current. This SPDT (single-pole double-throw) relay is optimized for PCB mounting via its PCB pin terminals, providing secure and compact integration for industrial and household electronic applications.

The relay operates reliably in harsh conditions, supporting a broad operating temperature range from -40°C to 85°C and delivering dependable performance with a coil resistance of 1.4kΩ and coil power consumption as low as 400mW.

Constructed with silver alloy contact material, it offers low contact resistance of 100mΩ which ensures low signal loss and high conductivity. It can handle switching voltages of up to 5V dc (DC) and 440V (AC), and a switching power rating of 4kVA, making it suitable for various electronic devices and equipment.

The ALZ Series relays come with sealed flux protection, providing enhanced durability against environmental factors such as moisture. These relays are compliant with important international safety standards including VDE, UL, and CSA, promoting safe and reliable operation.

This relay is manufactured in Thailand, reflecting strict quality controls and industry-grade manufacturing standards. The coil voltage is precisely rated at 24V dc for stable operation. The single-pole double-throw (SPDT) contact configuration offers versatile switching control.

The relay features a robust switching current capacity of 16A suitable for various industrial and household devices. Constructed with silver alloy contacts to ensure high conductivity and durability. Designed for PCB mount with PCB pin terminals providing easy integration into electronic circuits.

Operates effectively in a temperature range from -40°C up to 85°C. The coil resistance is 1.4kΩ with low coil power consumption of 400mW. Compact dimensions include a length of 28.8mm, width of 12.5mm, and height of 15.7mm.

Complies with safety and quality standards including VDE, UL, and CSA approvals. Encased in a sealed flux protection design for extended reliability in humid environments. Made in Thailand, ensuring quality manufacturing practices.

Ideal for industrial, electrical, and automation applications, this Panasonic PCB Power Relay ensures reliable and efficient switching in devices such as household appliances, office equipment, and industrial machinery.
