Hirose Right Angle Surface PCB Header, 2 Contact(s), 2 mm Pitch, 1 Row, Shrouded DF3EA-2P-2H(21)

Free Delivery in India | Lowest Global Shipping Charges

Hirose Right Angle Surface PCB Header, 2 Contact(s), 2 mm Pitch, 1 Row, Shrouded DF3EA-2P-2H(21)

Name: Hirose Right Angle Surface PCB Header, 2 Contact(s), 2 mm Pitch, 1 Row, Shrouded DF3EA-2P-2H(21)
Brand: Hirose
SKU: 202179
Price: 0.5 USD
Availability: InStock



Category PCB Header Brand Hirose Condition New

Specifications

Country of Origin	Japan
Voltage	250V
Brand	Hirose
Orientation	Right Angle
Current	3A
Model	DF3EA-2P-2H(21)
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Brass
Series	DF3
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board, Wire-to-Board

Key Features

Low profile design suitable for compact electronic assemblies.
Friction locking mechanism ensures a secure mating connection.
PCB mounting bosses provide accurate positioning during soldering process.
Reinforced metal fittings prevent peeling and enhance attachment strength to the PCB.
Constructed with polyamide housing and brass contacts plated with tin for durability.
Designed for board-to-board and wire-to-board connector systems.
Right angle orientation facilitates efficient PCB layout.
Operates reliably within -55°C to 105°C temperature range.

Product Description

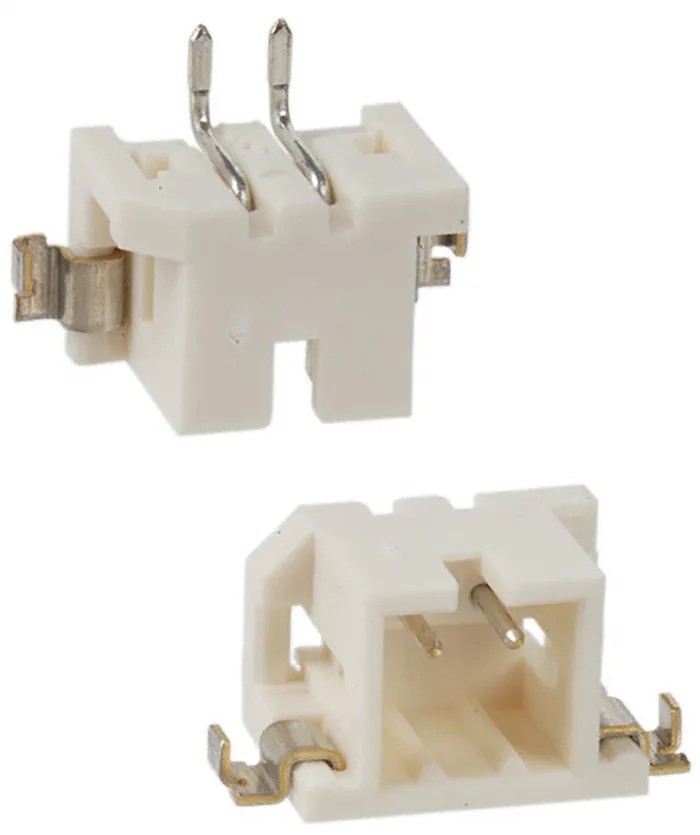

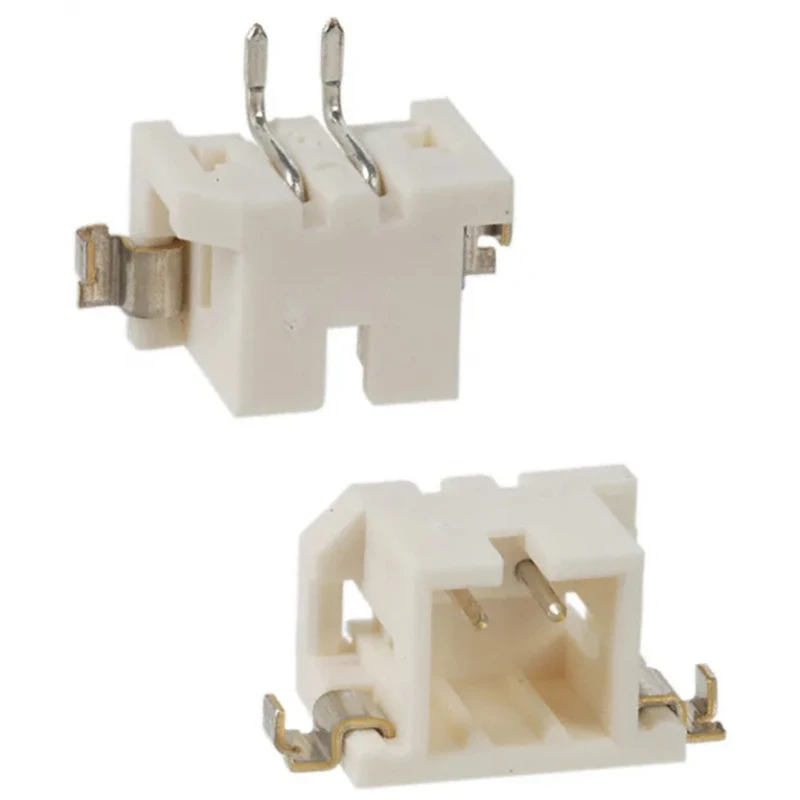

Hirose DF3EA-2P-2H(21) is a right angle surface mount PCB header belonging to the DF3 series, featuring 2 contacts with a 2 mm pitch in a single-row configuration. It incorporates a shrouded design to ensure mating reliability in electrical connections, making it ideal for electronic applications such as business equipment, including copy machines and printers.

The connector housing is made from durable polyamide material, and the contacts are constructed from brass with tin plating to enhance corrosion resistance and conductivity. Its low profile design supports compact PCB layouts, while the friction locking mechanism guarantees a secure connection to mating sockets. Additionally, PCB mounting bosses facilitate precise positioning during soldering, and reinforced metal fittings on both sides improve mechanical stability and prevent solder joint peeling.

This PCB header supports board-to-board and wire-to-board connection systems and mounts via surface mount technology on PCBs. Operating temperatures range from -55°C to 105°C, with current capacity rated at 3A and a voltage rating of 250V.

The design complies with no specific approvals or certifications but delivers reliable performance for industrial and commercial electronic equipment. Low profile design suitable for space-constrained electronics. Friction locking mechanism provides connection security.

PCB mounting bosses ensure accurate placement on PCB. Reinforced metal fittings secure attachment and solder joint integrity. Polyamide housing and brass contacts with tin plating for durability. Right angle orientation supports flexible PCB layouts.

Rated for 3A current and 250V voltage operation. Temperature range from -55°C to 105°C for varied environments.

This Hirose DF3 Series PCB Header is ideal for use in electronic manufacturing, business equipment assembly, and repair tasks requiring dependable board-to-board or wire-to-board connections. Explore more high-quality PCB components and connectors in the Electronics & Electricals category at EnvMart.
