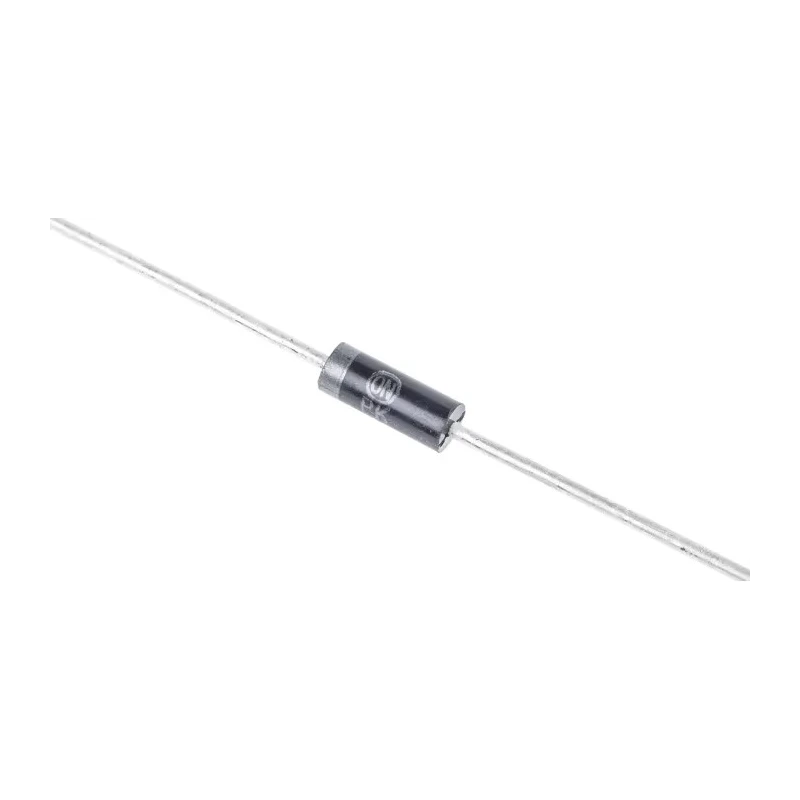

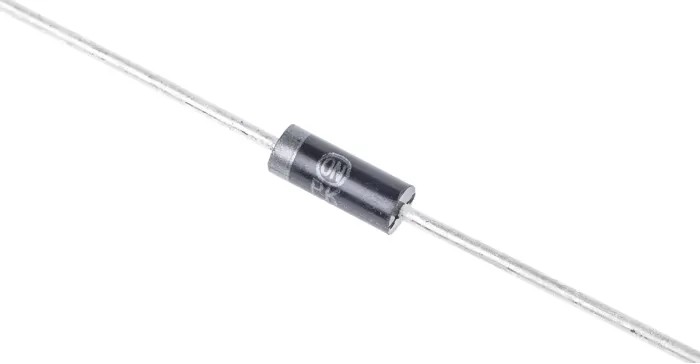

onsemi Zener Diode 3.9 V Single 5W 5% Through Hole 2-Pin DO-15 1N5335BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5335BRLG |
| Mount Type | Through Hole |
| Series | 1N5335B |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 320mA |
| Maximum Reverse Leakage Current | 50μA |
| Nominal Zener Voltage Vz | 3.9V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 2Ω |
| onsemi, 3.6V Zener Diode 5% 5 W Through Hole 2-Pin 017AA-01Brand | ON Semiconductor |
Key Features
- The diode features a single diode configuration for voltage regulation.
- Nominal Zener voltage is 3.9 V, suited for precise voltage clamping.
- Power dissipation rating of 5 W ensures robust performance in demanding environments.
- Constructed with a DO-15 package type for easy through-hole mounting.
- Tolerates operating temperatures ranging from -65°C to 200°C.
- Maximum Zener impedance is 2 Ω at test current of 320 mA.
- Maximum reverse leakage current is limited to 50 μA for improved efficiency.
- Axial-leaded design with molded thermosetting plastic offers environmental protection.
Product Description
onsemi 1N5335BRLG Zener Diode is a reliable 3.9 V single diode designed for voltage regulation applications. Rated for 5 W power dissipation and packaged in a DO-15 axial-leaded through-hole configuration, this device provides superior silicon-oxide passivated junction characteristics with tight voltage tolerance of ±5%.
The diode operates efficiently within a temperature range from -65°C to 200°C and is engineered with a molded, void-free transfer-molded thermosetting plastic package providing robust environmental protection. Its corrosion-resistant surfaces and solderable leads facilitate easy integration into electronic assemblies.
Key electrical parameters include a test current of 320 mA, maximum Zener impedance of 2 Ω, and a maximum reverse leakage current of 50 μA, ensuring stable and efficient voltage regulation.
This 5 W Surmetic™ Zener diode series, spanning part numbers 1N5333 to 1N5346, is optimized for industrial and power management circuits requiring precise voltage clamps. Its axial lead form factor is conducive for through-hole PCB mounting commonly used in discrete semiconductor assemblies.
Applications include industrial electronics, power supplies, and other systems needing dependable voltage regulation with high thermal endurance. The device is suitable for manufacturing, laboratory, and industrial environments.
The diode features a single diode configuration for voltage regulation. Nominal Zener voltage is 3.9 V, suited for precise voltage clamping. Power dissipation rating of 5 W ensures robust performance in demanding environments.
Constructed with a DO-15 package type for easy through-hole mounting. Tolerates operating temperatures ranging from -65°C to 200°C. Maximum Zener impedance is 2 Ω at test current of 320 mA. Maximum reverse leakage current is limited to 50 μA for improved efficiency.
Axial-leaded design with molded thermosetting plastic offers environmental protection. The device's external surfaces are corrosion resistant and leads are readily solderable. Ideal for industrial voltage regulation and electronic component applications.
Explore more semiconductor components and Zener Diodes by onsemi on EnvMart for diverse industrial and manufacturing requirements.
