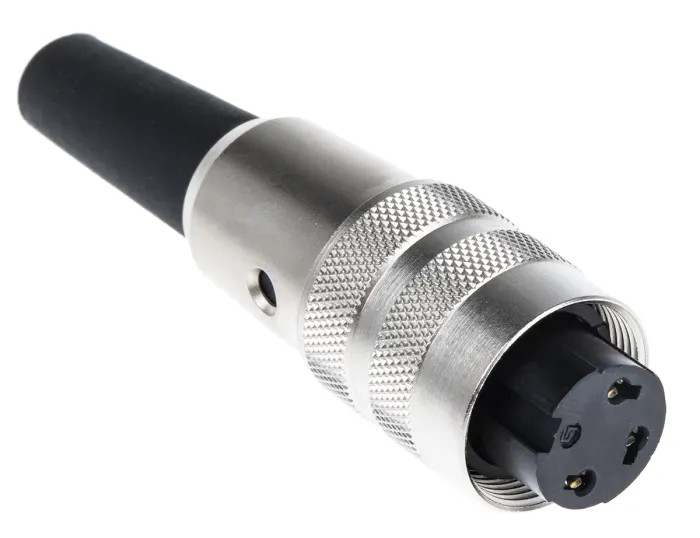

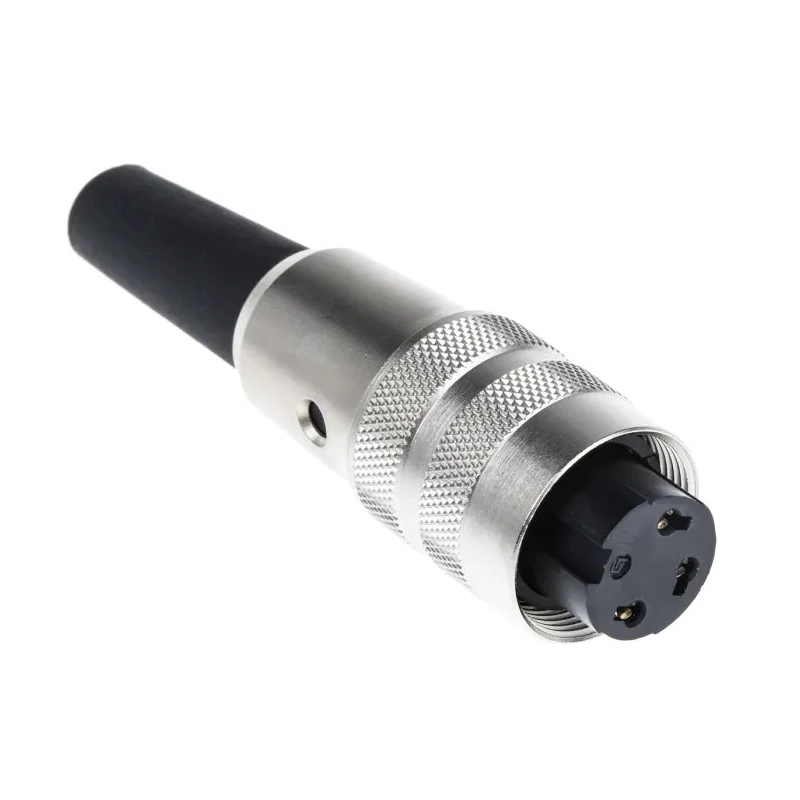

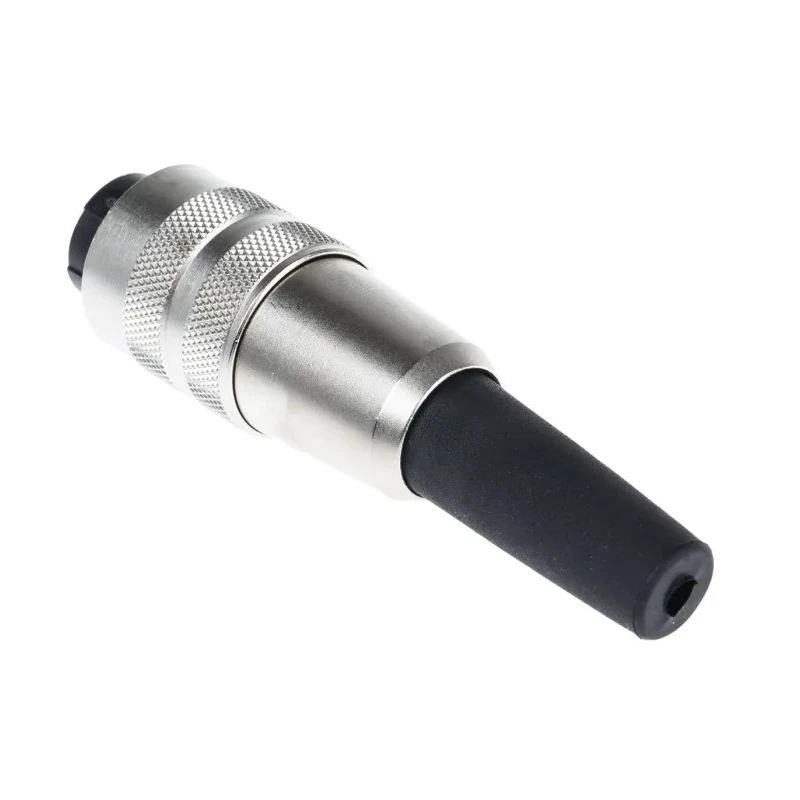

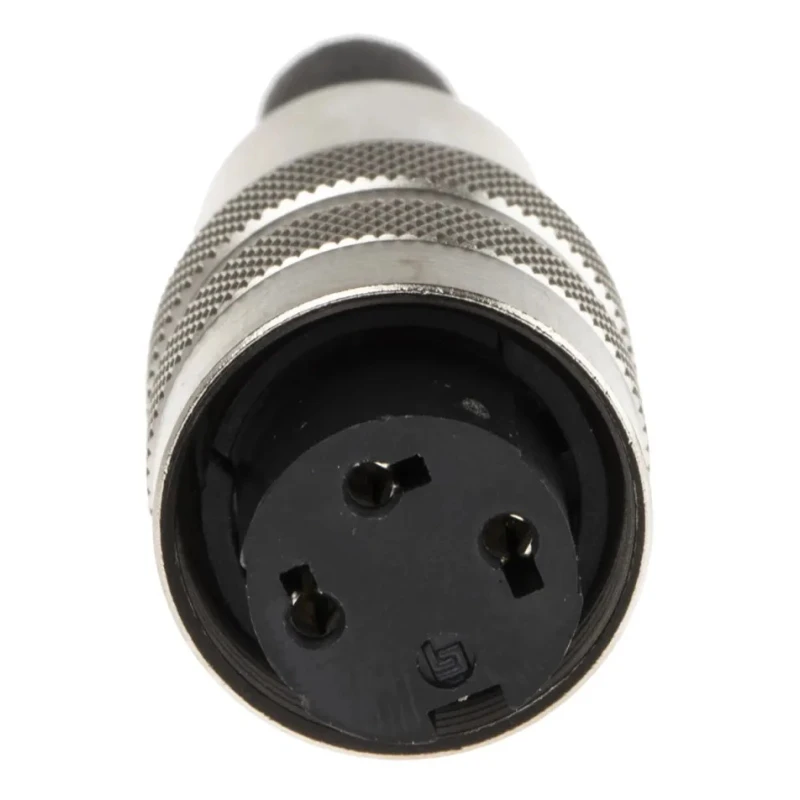

binder Circular Connector, 3 Contacts, Cable Mount M16 Connector Socket Female, IP40, 7A, 250V, Polyamide 09-0306-00-03
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | binder |
| Orientation | Straight |
| Current | 7A |
| IP Rating | IP40 |
| Mount Type | Cable |
| Housing Material | Polyamide |
| Contact Material | Bronze |
| Series | 680 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | DIN EN 61076-2-106 |
| Contact Plating | Silver |
| Number of Contacts | 3 |
| Contact Gender | Female |
| Shell Size | 18.5 mm |
| Mating Type | Screw Lock |
| Connector Size | M16 |
| Plug/Socket | Socket |
Key Features
- Compact miniature design with an M16 connector size and 3 contacts for reliable connections.
- Rated at 7A current and 250V voltage suitable for automation and instrumentation.
- Features a robust polyamide housing offering durability and lightweight properties.
- Socket type with female contact gender and screw lock mating for secure connections.
- Provides IP40 ingress protection, suitable for indoor use without exposure to dust or moisture.
- Operates within a temperature range from -40°C to 85°C for varied industrial environments.
- Contact material is bronze with silver plating ensuring conductivity and resistance to corrosion.
- Solder termination type enables reliable cable mounting with strain relief and bending protection.
Product Description
binder 09-0306-00-03 Circular Connector M16 is a high-quality industrial circular connector featuring 3 contacts and a female socket configuration. It is designed for cable mounting applications requiring secure and reliable electrical connections at 7A current and 250V voltage.
The connector has a compact miniature design with an M16 thread and polyamide housing, ensuring ruggedness and durability while maintaining lightweight properties. It features a screw lock mating type for secure engagement and an IP40 rating, making it suitable for indoor industrial environments where exposure to dust and moisture is minimal.

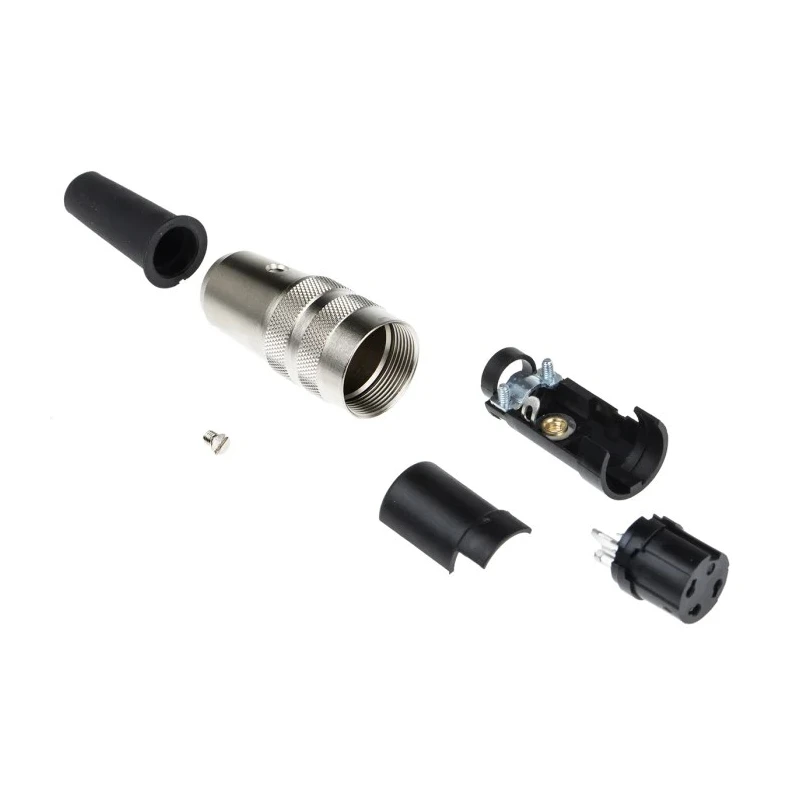

This cable mount connector is terminated by soldering and includes an internal bend protection sleeve and strain relief to maximize cable stability and longevity. The connector meets DIN EN 61076-2-106 standards and is part of the 680 series, known for robust performance and excellent EMI shielding through its metal shells.
Applications for the binder 680 series connectors include industrial instrumentation, process control equipment, machine tools, medical devices, plant equipment, electrical systems, and automation setups requiring miniature, reliable connections.
The robust design and high number of mating cycles offered by the 680 series make these connectors ideal for demanding industrial settings. Note that the IP40 ingress protection limits usage to indoor environments without exposure to moisture or dust penetration.
Compact miniature design with M16 thread and 3 contacts. 7A current rating and 250V voltage rating for industrial use. Polyamide housing provides robust, lightweight construction. Screw lock mating mechanism ensures secure connection.
Solder termination with internal strain relief and bend protection. IP40 protection rating suitable for indoor, dust-free applications. Complies with DIN EN 61076-2-106 quality and industrial standards. Silver-plated bronze contacts for enhanced conductivity and corrosion resistance.
Operating temperature range from -40°C to 85°C supports diverse environments. Ideal for industrial automation, instrumentation, and machine tools. Explore EnvMart's extensive selection of Industrial Circular Connectors for dependable power and signal transmission components in various electronic and electrical applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 7A and a voltage of 250V, making it suitable for various industrial applications.
It has an IP40 ingress protection rating, which means it is suitable for indoor use without exposure to dust or moisture.
The housing is made of polyamide, while the contacts are bronze with silver plating for enhanced conductivity and corrosion resistance.
This unit operates within a temperature range from -40°C to 85°C, making it suitable for diverse industrial environments.
This circular connector features 3 contacts, designed for reliable electrical connections in various applications.
It uses solder termination, which allows for reliable cable mounting with strain relief and bending protection.
The connector features a screw lock mating type, ensuring secure engagement during operation.
It complies with the DIN EN 61076-2-106 standards, ensuring quality and performance in industrial applications.
The shell size of this model is 18.5 mm, which corresponds to its M16 connector size.
It is suitable for industrial instrumentation, process control equipment, machine tools, medical devices, and automation setups.
This connector has a straight orientation, which is typical for cable mount applications.
The country of origin for this product is Germany, known for its engineering and manufacturing standards.
