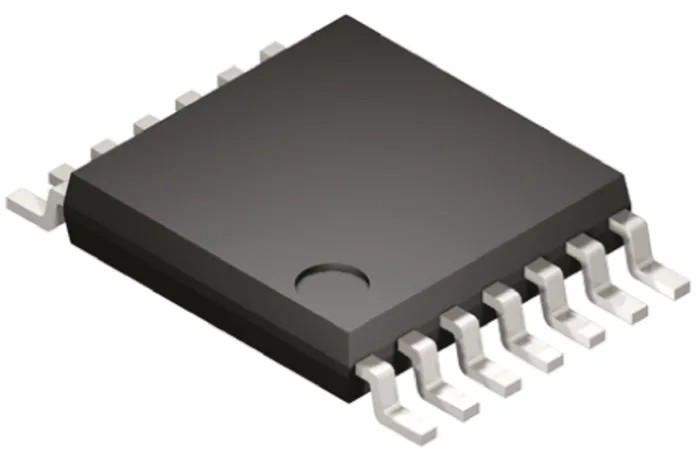

Texas Instruments Operational Amplifier, 2.5 MHz Gain Bandwidth, 14-Pin TSSOP, 12V, Surface Mount LMP7704MT/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 0.9mm |
| Length | 5mm |
| Model | LMP7704MT/NOPB |
| Width | 4.4mm |
| Mount Type | Surface |
| Series | LMP7704 |
| Output Current | 15mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 2.5MHz |
| Input Bias Current | 50 pA |
| Slew Rate | 1V/μs |
| Input Offset Current | 40 fA |
Key Features
- Precision low voltage operational amplifier suitable for various industrial applications.
- Supports a wide supply voltage range from 3V to 12V.
- Offers a slew rate of 1 V/μs for responsive signal changes.
- Four channels in a compact TSSOP 14-pin package for multi-channel use.
- Input offset voltage of 520 μV ensures high accuracy signal amplification.
- Extends operating temperature from -40°C up to 125°C for reliable performance in harsh environments.
- Ultra-low input bias current of 50 pA and input offset current of 40 fA for precision applications.
- Output current capability of 15 mA supports a range of load requirements.
Product Description
Texas Instruments LMP7704MT/NOPB is a high-precision, low-voltage operational amplifier designed for surface mount applications. It features a 2.5 MHz gain bandwidth product and is packaged in a 14-pin TSSOP housing that facilitates high-density PCB layouts. This amplifier supports a wide supply voltage range of 3 V to 12 V and offers a stable slew rate of 1 V/μs, making it ideal for precision signal conditioning in industrial, laboratory, and electronic instrumentation applications.
The device includes four independent channels, providing versatile multi-channel signal amplification options. It maintains an ultra-low input bias current of 50 pA and an input offset current of 40 fA, delivering high fidelity and precision in measurement systems. Its input offset voltage is tightly controlled at 520 μV, with an output current capacity of 15 mA suitable for a variety of load conditions.
Designed to operate reliably in challenging environments, the LMP7704MT/NOPB supports ambient temperatures from -40°C to 125°C. The compact 14-pin TSSOP package measures just 5 mm in length, 4.4 mm in width, and 0.9 mm in height, enabling efficient use of board space without compromising electrical performance.
The product complies with RoHS environmental standards, assuring customers of its safety and reduced environmental impact. It is especially suited for industrial electronics, automated machinery, signal processing, and instrumentation where high precision and reliability are crucial.
Precision low voltage operational amplifier. Wide supply voltage range from 3 V to 12 V. 2.5 MHz gain bandwidth product ensures high-speed amplification. Four channels in a single device with 14-pin TSSOP package. Ultra-low input bias and offset currents for enhanced measurement accuracy.
Operating temperature range from -40°C to 125°C for industrial environments. RoHS compliant product ensuring environmental safety. Compact dimensions facilitate high-density PCB designs. Output current capability up to 15 mA for diverse application requirements.
Ideal for laboratory, industrial automation, and electronic instrumentation use cases. Explore EnvMart's comprehensive selection of semiconductor Operational Amplifiers for precision electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LMP7704MT/NOPB has a gain bandwidth product of 2.5 MHz, which ensures high-speed amplification for various applications.
It has an output current capability of 15 mA, suitable for a variety of load requirements in different circuits.
The compact TSSOP package measures 5 mm in length, 4.4 mm in width, and 0.9 mm in height, facilitating efficient PCB design.
It features four independent channels, allowing for multi-channel signal amplification in a single device.
The input offset voltage is tightly controlled at 520 μV, ensuring high accuracy in signal amplification.
The slew rate is 1 V/μs, which allows for responsive signal changes in various applications.
It has an ultra-low input bias current of 50 pA, enhancing measurement accuracy in precision applications.
Yes, the LMP7704MT/NOPB complies with RoHS environmental standards, ensuring safety and reduced environmental impact.
This model is designed for surface mounting, which is ideal for high-density PCB layouts.
The input offset current is 40 fA, which contributes to the precision of the device in measurement systems.
