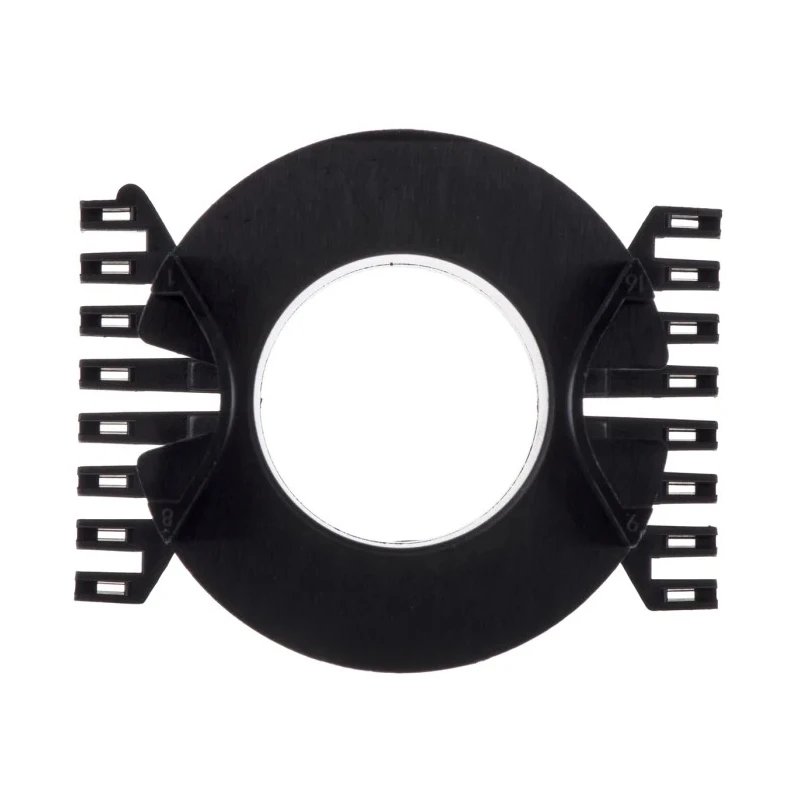

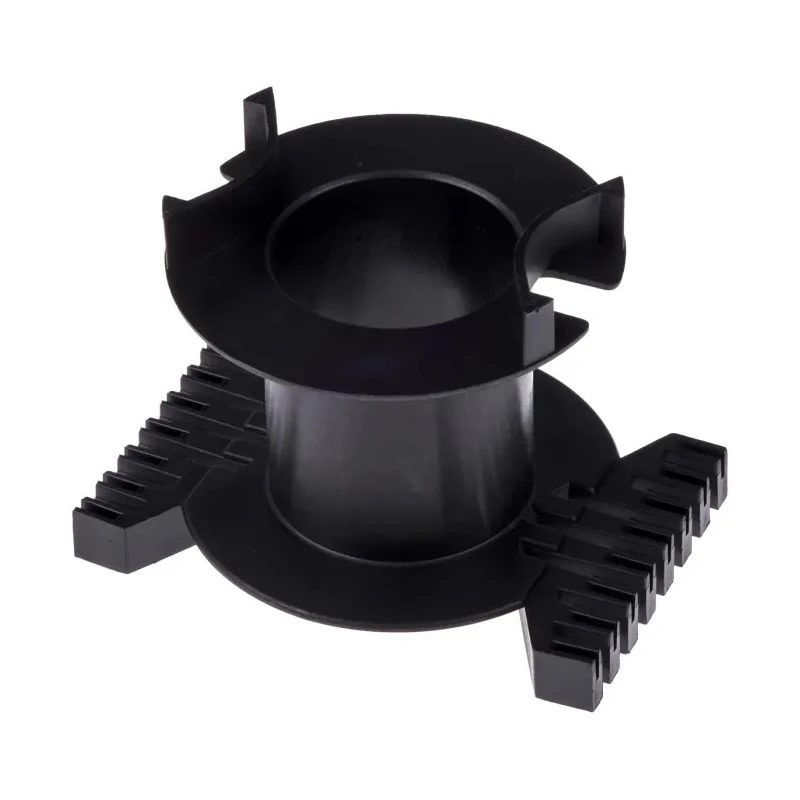

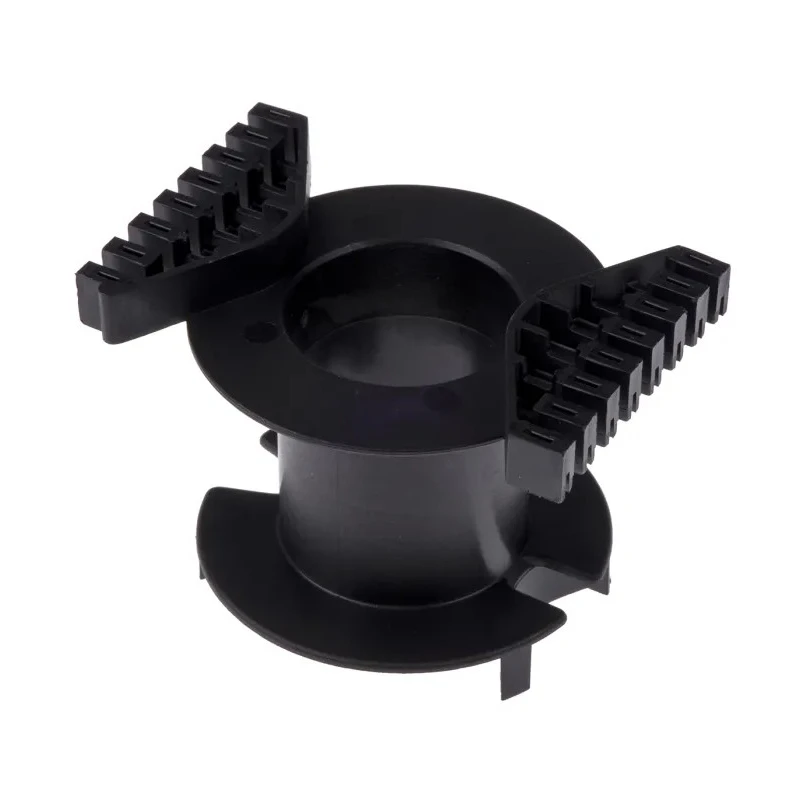

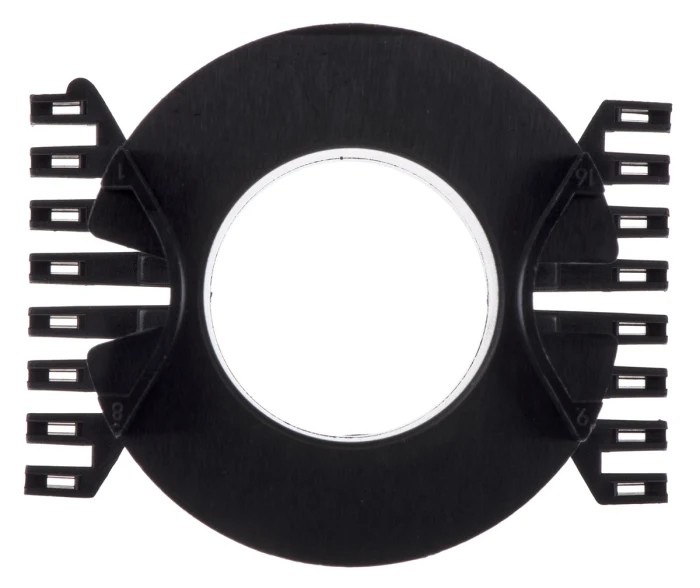

TDK Coil Former for Use with PM 62/49 Core Fibreglass Reinforced PolyTerephthalate 155°C B65685A1000T001

TDK B65685A1000T001 Coil Former is a high-quality transformer accessory specifically designed for use with PM 62/49 cores. Constructed from fibreglass reinforced polyterephthalate, it offers excellent durability and stability under electrical and mechanical stress.

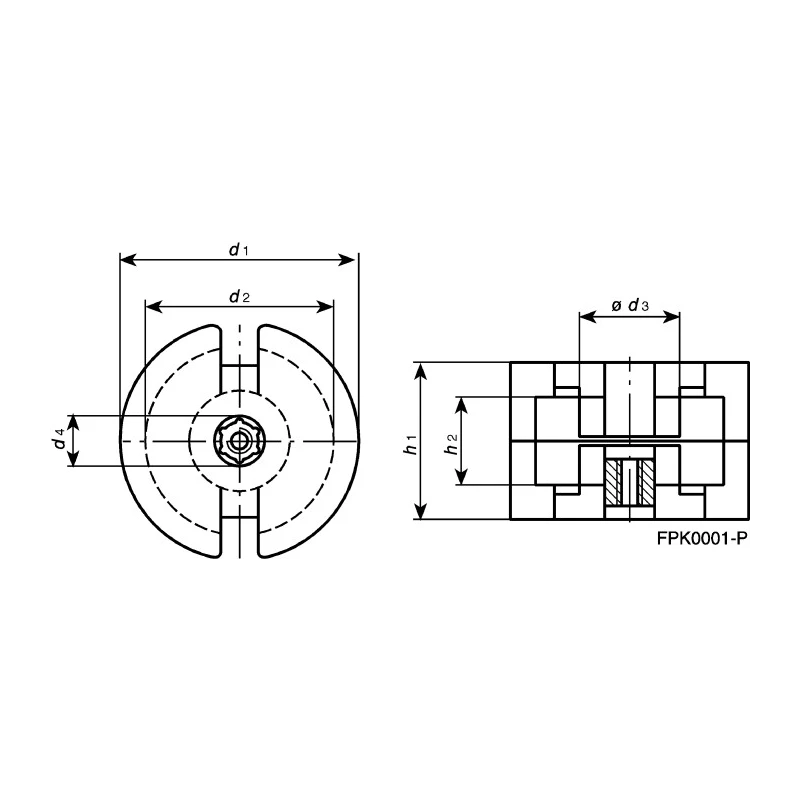

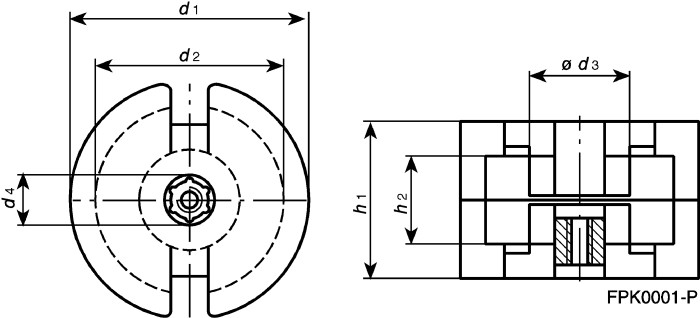

This coil former supports maximum operating temperatures up to 155°C, making it suitable for high-performance and industrial environments. With precise dimensions of 75.5 mm length, 48.5 mm width, and 53.7 mm depth, it ensures a perfect fit for PM series ferrite cores used in power repeaters, storage coils for high-energy timed power supply devices, and communications technology equipment.

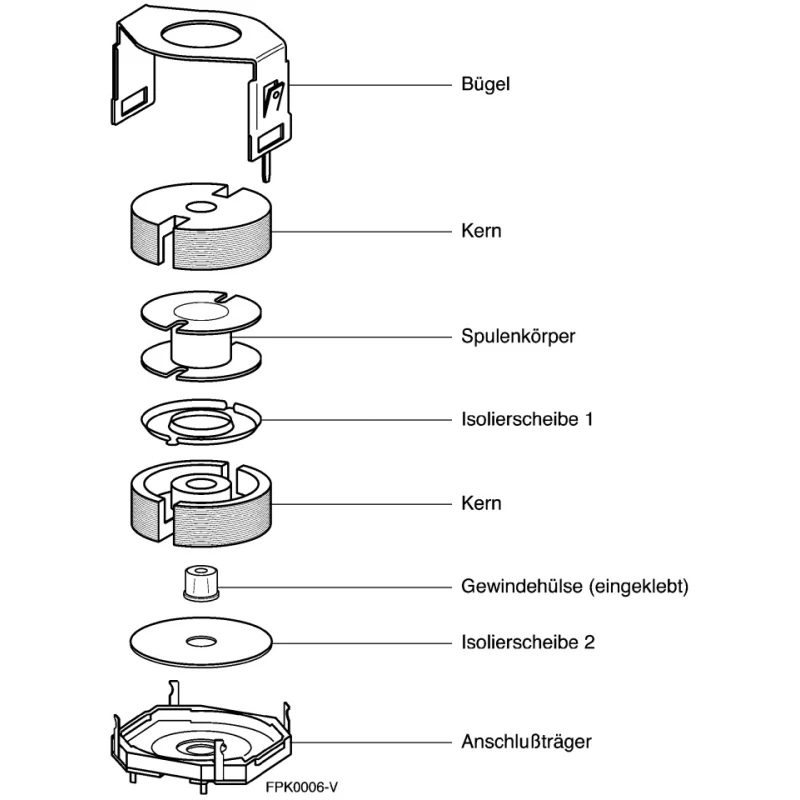

The coil former includes a holder comprising a clip and baseplate, complete with nuts and washers for secure chassis or PCB assembly. When installed, the coil must have its soldered connections oriented uppermost to maintain electrical integrity.

It is an essential component for industrial, communications, and electronic manufacturing applications requiring reliable coil mounting solutions. Constructed from durable fibreglass reinforced polyterephthalate material.

Compatible with PM 62/49 ferrite cores for reliable transformer assembly. Maximum operating temperature of 155°C ensures performance in demanding conditions. Dimensions: length 75.5 mm, width 48.5 mm, depth 53.7 mm for precise fitting.

Complete with nuts and washers suitable for chassis assembly or PCB mounting. Designed to hold coil assemblies securely with soldered connections facing upwards. RoHS compliant, meeting environmental and safety standards.

Ideal for applications in communications technology, industrial electronics, and high-energy timed power devices. Explore the broad range of Transformer Accessories available at EnvMart for comprehensive transformer and coil assembly solutions.
