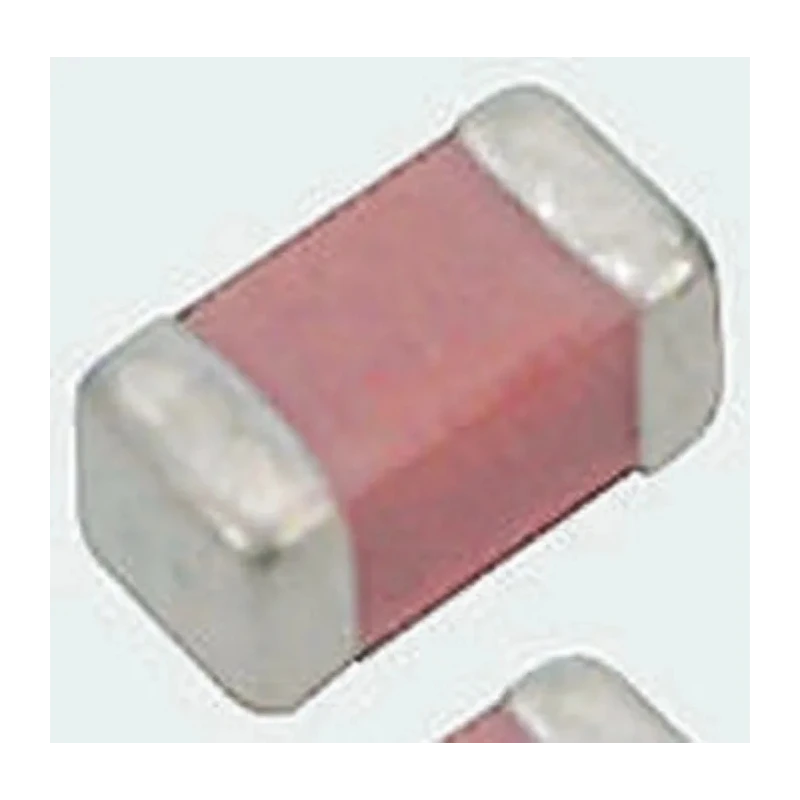

Vishay 56 pF Multilayer Ceramic Capacitor 100V DC ±5% Surface Mount 0603 VJ0603A560JXBAC

Free Delivery in India | Lowest Global Shipping Charges

Vishay 56 pF Multilayer Ceramic Capacitor 100V DC ±5% Surface Mount 0603 VJ0603A560JXBAC

Name: Vishay 56 pF Multilayer Ceramic Capacitor 100V DC ±5% Surface Mount 0603 VJ0603A560JXBAC
Brand: Vishay
SKU: 201572



Category MLCCs - Multilayer Ceramic Capacitors Brand Vishay Condition New

Specifications

Country of Origin	India
Voltage	100V dc
Brand	Vishay
Height	0.94mm
Length	1.6mm
Model	VJ0603A560JXBAC
Packaging	7 in Reel/Paper Tape
Width	0.8mm
Mount Type	Surface
Series	VJ
Termination Type	Surface Mount
Maximum Operating Temperature	150°C
Tolerance	±5 %
Capacitance	56pF
Minimum Operating Temperature	-55°C
Standards/Approvals	IEC 61249-2-21, RoHS, JEDEC JS709A
Package/Case	0603
Dielectric	C0G

Key Features

The capacitor has a C0G dielectric providing ultra-stable capacitance and low temperature coefficient.
It supports operating temperatures from -55°C to 150°C ensuring reliability in harsh environments.
Compact 0603 package size with dimensions 1.6mm length, 0.8mm width, and 0.94mm height.
Features reliable surface mount termination suitable for automated assembly processes.
Ideal for timing, tuning circuits, decoupling, filtering, and high voltage surge suppression applications.
Complies with IEC 61249-2-21, RoHS, and JEDEC JS709A standards for quality and safety.
The product is packaged in 7 inch reel with paper tape for efficient handling and placement.
Designed for use in consumer electronics, automotive, and industrial electronics sectors that require precision multilayer ceramic capacitors.

Product Description

Vishay VJ0603A560JXBAC is a high-quality multilayer ceramic capacitor with 56 pF capacitance and a voltage rating of 100V DC, featuring a ±5% capacitance tolerance. This capacitor utilizes a C0G dielectric (also known as NP0), which is characterized by its ultra-stable dielectric properties and very low temperature coefficient of capacitance. The compact 0603 surface mount package measuring 1.6mm x 0.8mm x 0.94mm makes it suitable for high-density circuit boards and automated placement.

Its operating temperature range spans from -55°C to 150°C, enabling usage in environments requiring thermal stability and durability. The surface mount terminations are designed for reliable soldering and mechanical strength, ensuring consistent performance during operation.

This capacitor is part of Vishay's VJ series, which offers capacitors optimized for timing, tuning circuits, sensor and scanner applications, decoupling and filtering of signals, and surge suppression in electronic circuits. The product complies with IEC 61249-2-21, RoHS, and JEDEC JS709A standards, confirming its quality and environmental compliance.

Packaging on a 7 inch reel with paper tape supports manufacturing efficiency and supports placement machines for surface mount technology (SMT). The C0G dielectric offers exceptional stability and low aging characteristics.

High voltage surge suppression capability supports protection of sensitive electronic components. Ultra-compact dimensions facilitate space-saving electronic device designs. Excellent electrical performance across a wide temperature range.

Fully RoHS compliant ensuring environmental safety. Reliable surface mount termination for automated assembly. Compliant with stringent international standards for quality assurance. 7 inch reel packaging compatible with automated SMT equipment.

This capacitor is ideal for use in industrial, automotive, consumer electronics, and telecommunications equipment where precision and durability are critical. For more options in multilayer ceramic capacitors, explore the comprehensive catalogs at EnvMart.
