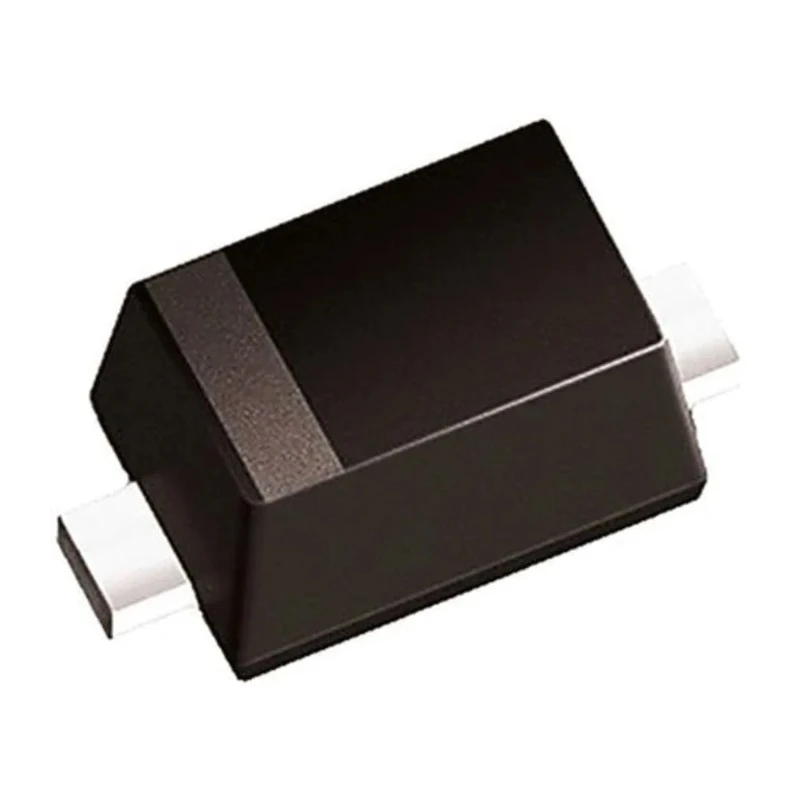

ROHM 30 V 200 mA Surface Mount Schottky Diode 2-Pin SOD-523 RB531SM-30T2R

Free Delivery in India | Lowest Global Shipping Charges

ROHM 30 V 200 mA Surface Mount Schottky Diode 2-Pin SOD-523 RB531SM-30T2R

Name: ROHM 30 V 200 mA Surface Mount Schottky Diode 2-Pin SOD-523 RB531SM-30T2R
Brand: ROHM
SKU: 201495
Price: 0.06 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Height	0.7mm
Length	1.25mm
Model	RB531SM-30T2R
Width	0.85mm
Mount Type	Surface
Series	RB531SM
Maximum Operating Temperature	150°C
Package Type	SOD-523
Pin Count	2
Maximum Continuous Forward Current If	200mA
Peak Reverse Repetitive Voltage Vrrm	30V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	10μA
Peak Non-Repetitive Forward Surge Current Ifsm	1A
Maximum Forward Voltage Vf	350mV

Key Features

Compact 2-pin SOD-523 package suitable for surface mount applications.
Peak reverse voltage rating of 30 V ensures reliability in voltage-sensitive applications.
Maximum continuous forward current of 200 mA supports low power rectification tasks.
Maximum forward voltage drop of 350 mV minimizes power loss and improves efficiency.
High peak non-repetitive forward surge current rating of 1 A allows brief overload conditions.
Maximum operating temperature of 150°C enables stable operation in various environments.
Small physical dimensions with length 1.25 mm, width 0.85 mm, and height 0.7 mm facilitate compact circuit designs.
Schottky barrier diode type provides fast switching speed and low forward voltage drop.

Product Description

ROHM RB531SM-30T2R is a high-quality Schottky diode designed for low power electronic applications requiring efficient rectification and low forward voltage drop. This surface mount device is housed in a compact SOD-523 package with two pins, offering easy installation on printed circuit boards for industrial, commercial, and consumer electronics.

The diode features a peak reverse repetitive voltage rating of 30 V and can handle a maximum continuous forward current of 200 mA, making it suitable for power supply circuits, signal detection, and switching regulators. With a maximum forward voltage of 350 mV, it ensures low conduction losses, enhancing system efficiency.

It is capable of withstanding a maximum non-repetitive forward surge current of 1 A, providing resilience against transient load conditions. The device operates reliably up to 150°C ambient temperature, making it versatile for various thermal environments.

Physically small, with dimensions of 1.25 mm length, 0.85 mm width, and 0.7 mm height, the ROHM RB531SM-30T2R allows designers to optimize PCB space while maintaining performance. Its Schottky barrier technology offers faster switching speeds and lower forward voltage compared to standard diodes, benefiting high-frequency and low-noise applications.

Compact surface mount 2-pin SOD-523 package. 30 V peak reverse voltage rating. 200 mA maximum continuous forward current. Low forward voltage drop of 350 mV. 1 A peak non-repetitive forward surge current capacity. Operating temperature up to 150°C.

Dimensions: 1.25 mm length x 0.85 mm width x 0.7 mm height. Single diode configuration with minimal leakage current.

This Schottky diode is ideal for use in industrial electronics, power management circuits, automotive applications (non-automotive standard), consumer devices, and communication equipment. Its performance characteristics align with requirements for fast, efficient rectification and signal processing.
