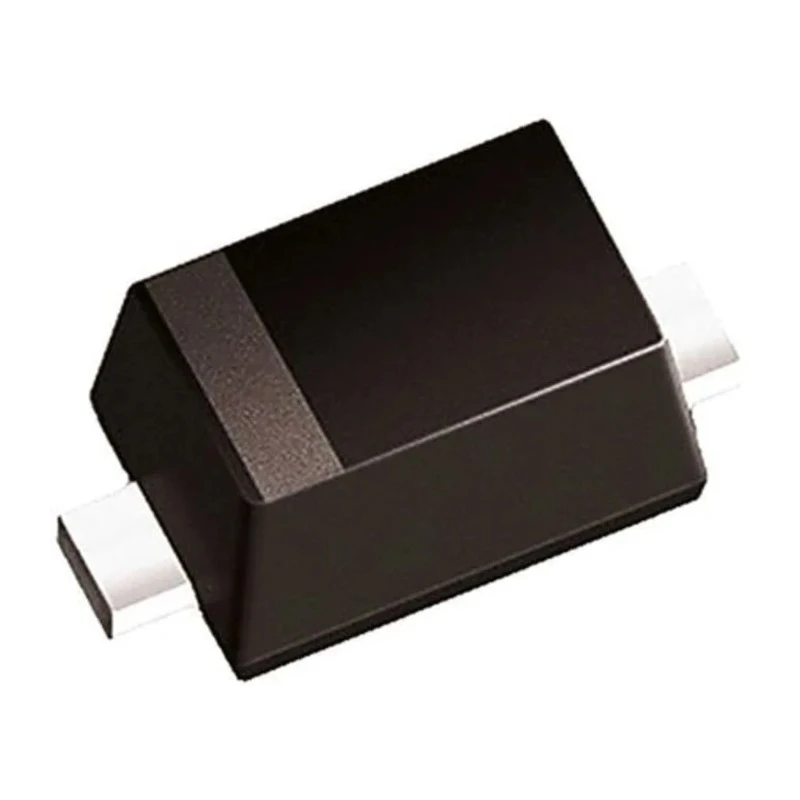

ROHM 1.12 V Zener Diode Single 150 mW Surface Mount 2-Pin SOD-523 EDZVT2R12B

The ROHM EDZVT2R12B is a high-quality Zener diode designed for precise voltage regulation in electronic circuits. It is a single diode configuration with a nominal zener voltage of 12 V and supports a maximum power dissipation of 150 mW, making it suitable for low-power voltage adjustment and stabilization tasks.

This diode is housed in a compact surface-mounted SOD-523 package that features two pins, facilitating easy PCB assembly in space-constrained electronics. The device is engineered to operate efficiently with a test current of 5 mA and maintain a maximum reverse leakage current of only 100 nA, ensuring minimal leakage in circuits.

With a maximum operating temperature of 150°C, the EDZVT2R12B provides reliable performance under demanding thermal conditions. Its maximum zener impedance of 80Ω and physical dimensions of 1.7 mm length and 0.7 mm height reflect its compact and robust design.

This component belongs to ROHM’s EDZV series of voltage regulator Zener Diodes and is intended for use in a range of semiconductor and discrete electronic component applications. It is ideal for industrial, commercial, and manufacturing sectors requiring stable voltage reference components.

This Zener diode has a nominal voltage of 12 volts. Supports a maximum power dissipation of 150 milliwatts. Features a surface mount type with a compact SOD-523 package. Comprises two pins and a single diode configuration for reliable operation.

Operates with a maximum test current of 5 mA and maximum reverse leakage current of 100 nA. Maximum operating temperature is rated at 150°C for extended durability. Has an impedance of 80Ω and chip length of 1.7 mm and height of 0.7 mm.

Suitable for voltage regulation in discrete semiconductor applications.

This ROHM Zener diode is a reliable component for precise voltage regulation and protection in electronic circuits. Browse EnvMart for more semiconductor and diode solutions from ROHM and other trusted manufacturers.
