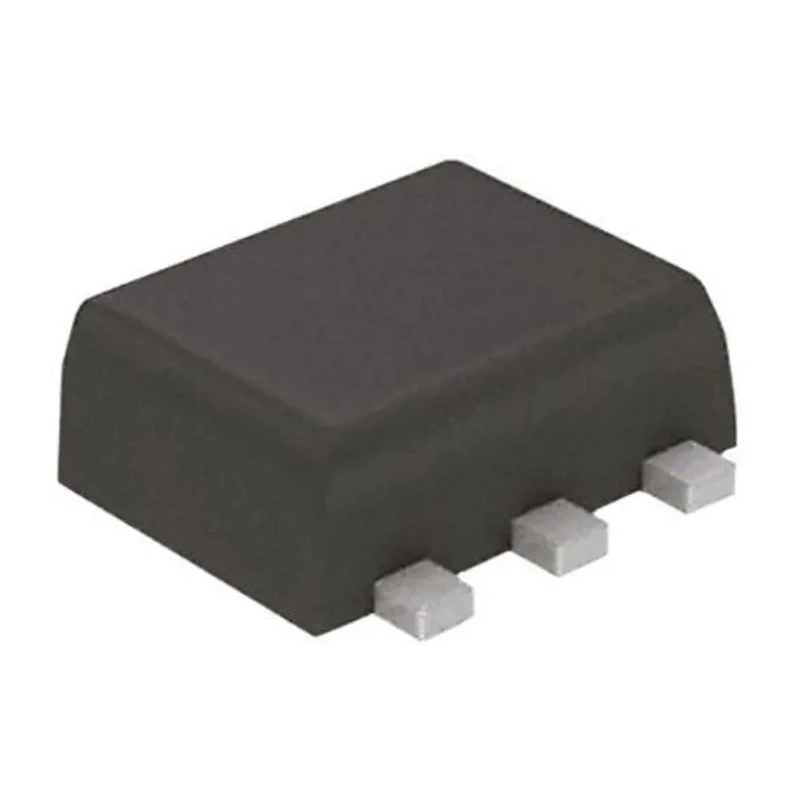

ROHM Digital Transistor 50 V NPN + PNP 100 mA Surface SOT-563 6-Pin EMD22T2R

ROHM EMD22T2R digital transistor features a dual base configuration combining both NPN and PNP transistors integrated with bias resistors. This design allows direct interfacing with digital logic outputs without the need for external resistors, simplifying circuit design and saving PCB space. It is housed in a compact 6-pin SOT-563 surface mount package measuring 1.7 mm in length, 1.3 mm in width, and 0.55 mm in height.

This device withstands a maximum collector emitter voltage (Vceo) of 50 volts and supports a continuous collector current (Ic) of 100 milliamps. Its maximum power dissipation (Pd) is 150 milliwatts, ensuring stable performance in low power electronic circuits. The transistor saturation voltage (VceSAT) is typically 300 millivolts, allowing efficient switching with minimal voltage drop.

The minimum DC current gain (hFE) of 80 ensures effective signal amplification, suitable for switching and amplification in digital circuits. Rated for a maximum operating temperature of 150°C, it guarantees reliable operation in various industrial and commercial electronic applications.

Typical use cases include integration in electronic devices, power controllers, signal amplification, and digital interfacing circuits in industrial, laboratory, and consumer electronics contexts. Being a surface mount device, it is ideal for automated assembly and compact system designs.

This transistor package enables easy surface mounting on PCBs. Robust design supports stable operation under industrial conditions. Low saturation voltage improves energy efficiency in switching applications. Dual transistor configuration reduces component count and PCB real estate.

Compact physical size fits modern miniaturized electronics. This product aligns with industry standards for bipolar transistors and is not specified with automotive standards or additional certifications. Explore the Electronics & Electricals category at EnvMart for a broad selection of Digital Transistors and semiconductor components to suit diverse engineering requirements.
