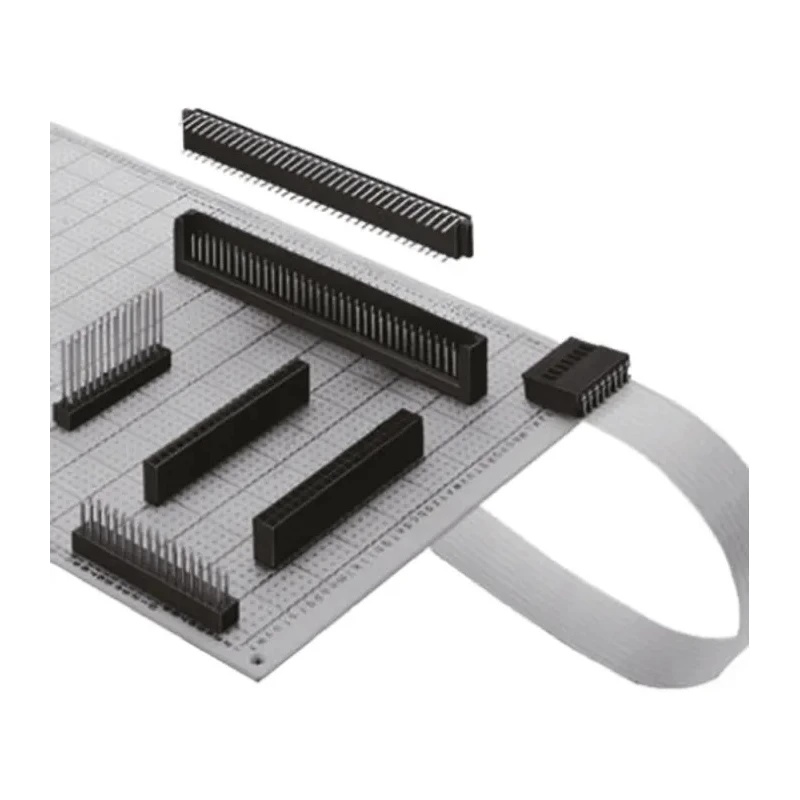

Hirose 50-Contact 2 Row Straight Through Hole PCB Socket 2.54 mm Pitch Solder Rated 12A 300V HIF3H
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 300V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 12A |
| Model | HIF3H |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Bronze |
| Series | HIF3H |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 50 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Constructed with polybutylene terephthalate housing for durability and flame resistance.
- Gold plated bronze contacts provide excellent conductivity and corrosion resistance.
- Designed for through-hole mounting on printed circuit boards.
- Rated for 12A current and 300V voltage operation ensuring reliable performance.
- Operates between -55°C to 85°C for use in varying environmental conditions.
- Board-to-board connector system with female contact gender type.
- Polarization guides prevent mis-insertion for assembly ease.
- Ideal for computer, electronic equipment, termination equipment, and office automation machines.
Product Description
Hirose HIF3H series 50-contact Board-to-Board PCB socket with a 2-row configuration and 2.54 mm pitch is designed for reliable soldered through-hole mounting. The connector features a durable black UL94V-0 rated polybutylene terephthalate housing, offering excellent flame retardant properties, and selective gold-plated bronze contacts that ensure strong electrical conductivity and corrosion resistance.
Designed with polarization guides to prevent mis-insertion, this female contact type connector supports a current rating of 12A and voltage rating up to 300V. Its operating temperature range extends from -55°C to 85°C, making it resilient in diverse industrial and electronic environments.
The HIF3H series provides a stable, high-quality board-to-board connection solution suitable for computers, termination equipment, office automation machines, and other electronic devices requiring robust interconnection reliability. The socket's straight orientation and through-hole mount design facilitate durable mechanical and electrical bonding to PCBs.
Durable polybutylene terephthalate housing with flame resistance. Selective gold-plated bronze contacts for superior conductivity. Polarization guides for error-free insertion during assembly. Rated 12 amperes and 300 volts for heavy-duty electronic applications.
Wide operating temperature range from -55°C to 85°C. Designed specifically for board-to-board through-hole connections. Female contact gender for secure and consistent connection. Applications include computers, electronic devices, and office automation machinery.
Choose the Hirose HIF3H 50-contact PCB Socket for high-performance, reliable PCB connections in demanding electrical and electronic assembly environments. Explore more connectors and components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 12A and a voltage of 300V, ensuring reliable performance in various applications.
It operates within a temperature range of -55°C to 85°C, making it suitable for diverse environmental conditions.
The housing is constructed from polybutylene terephthalate, which provides durability and flame resistance.
This PCB socket features 50 contacts, arranged in a 2-row configuration with a 2.54 mm pitch.
It uses a solder termination type, designed for through-hole mounting on printed circuit boards.
The contacts are made of bronze and are selectively gold-plated to enhance conductivity and corrosion resistance.
This model utilizes a board-to-board connector system with female contact gender for secure connections.
Yes, it is designed with polarization guides that help prevent mis-insertion during assembly.
It is suitable for use in computers, electronic equipment, termination equipment, and office automation machines.
The orientation of this socket is straight, facilitating easy installation on PCBs.
This product is manufactured in Japan, ensuring high standards of quality and performance.
