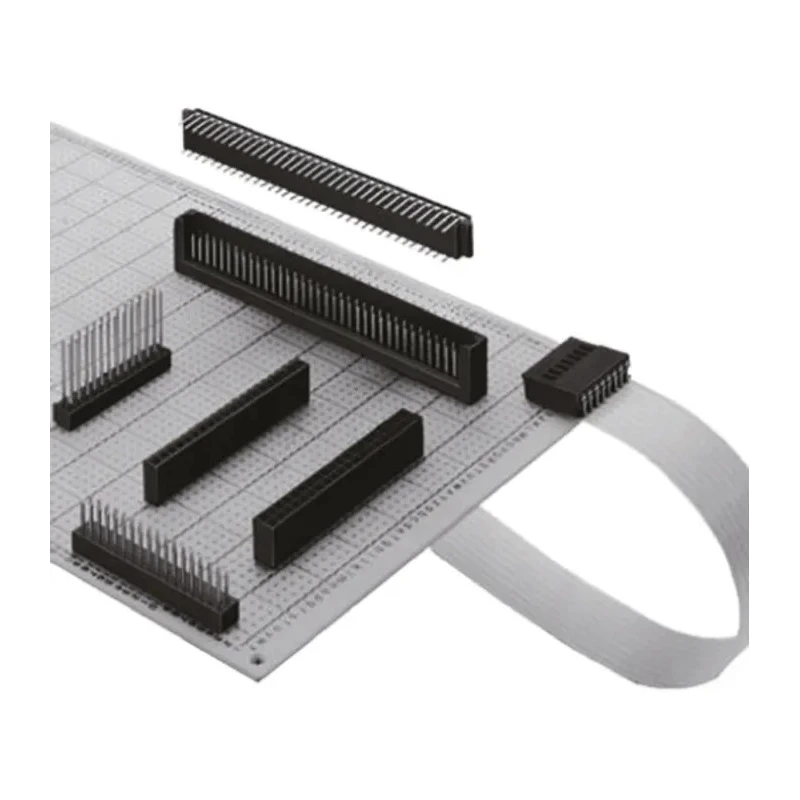

Hirose PCB Socket 24-Contact 2 Row 2.54 mm Pitch Through Hole Board-to-Board Connector HIF3H
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 300V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 12A |
| Model | HIF3H |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Bronze |
| Series | HIF3H |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 24 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
Key Features
- Constructed with polybutylene terephthalate housing for enhanced durability.
- Features 24 female contacts arranged in 2 rows at 2.54 mm pitch.
- Contact material is bronze with gold plating ensuring reliable connectivity.
- Supports current rating up to 12A and voltage rating of 300V.
- Operating temperature range from -55°C to 85°C suitable for varied environments.
- Solder termination with through-hole mount type enables robust PCB connection.
- Straight orientation with polarization guides to prevent mis-insertion.
- Designed for board-to-board connector systems in electronic and automation equipment.
Product Description
Hirose HIF3H PCB Socket is a 24-contact, 2-row, 2.54 mm pitch through-hole board-to-board connector designed for high-density electronic assemblies in industrial, electronic, and automation applications. The connector features a housing made of polybutylene terephthalate (PBT) which offers excellent durability and UL94V-0 flammability rating.
This series utilizes female bronze contacts with selective gold plating to provide reliable electrical performance and corrosion resistance. Rated for 12A current and 300V voltage, it supports applications requiring stable power and signal transmission.
The socket supports through-hole solder termination and is oriented straight with polarization guides that prevent incorrect mating, ensuring consistent assembly quality. Its operational temperature range from -55°C to 85°C makes it adaptable to industrial environments and office automation machines.
Common applications include computer hardware, termination equipment, and various electronic devices requiring secure board-to-board connections. The Hirose HIF3H series assures precision and performance in compact connector solutions.
Constructed with polybutylene terephthalate housing for enhanced durability. Features 24 female contacts arranged in 2 rows at 2.54 mm pitch. Contact material is bronze with gold plating ensuring reliable connectivity. Supports current rating up to 12A and voltage rating of 300V.
Operating temperature range from -55°C to 85°C suitable for varied environments. Solder termination with through-hole mount type enables robust PCB connection. Straight orientation with polarization guides to prevent mis-insertion.
Designed for board-to-board connector systems in electronic and automation equipment. Explore more Hirose connectors and PCB Sockets on EnvMart for reliable industrial and electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of up to 12A and a voltage rating of 300V.
The connector features a pitch of 2.54 mm and has 24 female contacts arranged in 2 rows.
It is constructed with a polybutylene terephthalate (PBT) housing and bronze contacts that are gold plated for reliable connectivity.
The operating temperature range for the HIF3H is from -55°C to 85°C, making it suitable for various environments.
This model features solder termination with a through-hole mount type, ensuring a robust PCB connection.
It has a straight orientation and includes polarization guides to prevent mis-insertion during assembly.
Common applications include computer hardware, termination equipment, and various electronic devices requiring secure board-to-board connections.
The housing material has a UL94V-0 flammability rating, indicating its suitability for various applications.
The connector features 2 rows of contacts.
It is designed for board-to-board connector systems in electronic and automation equipment.
This model utilizes female contacts for connection.
The country of origin for this product is Japan.
