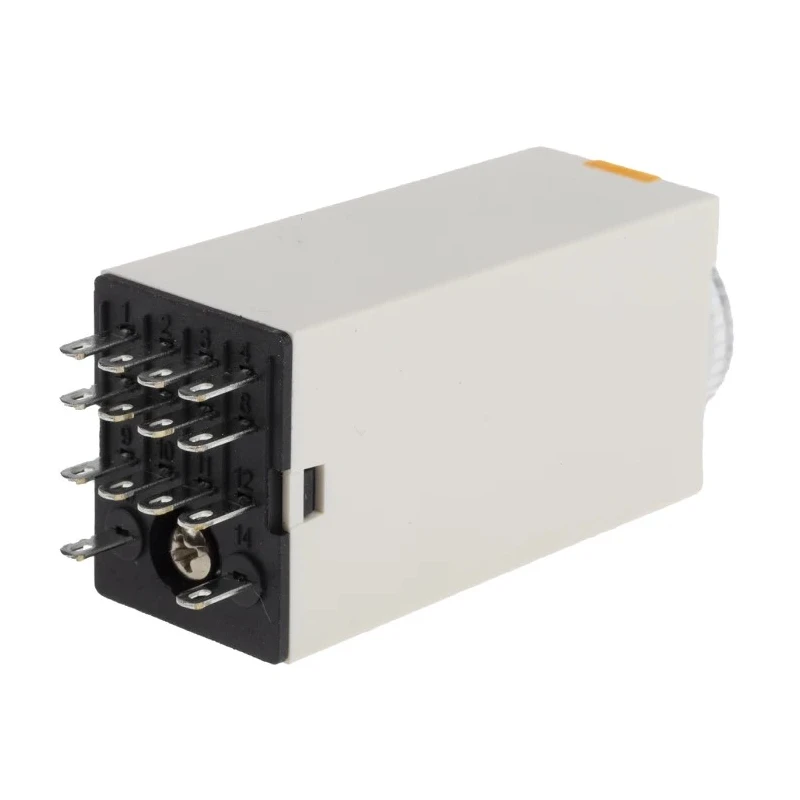

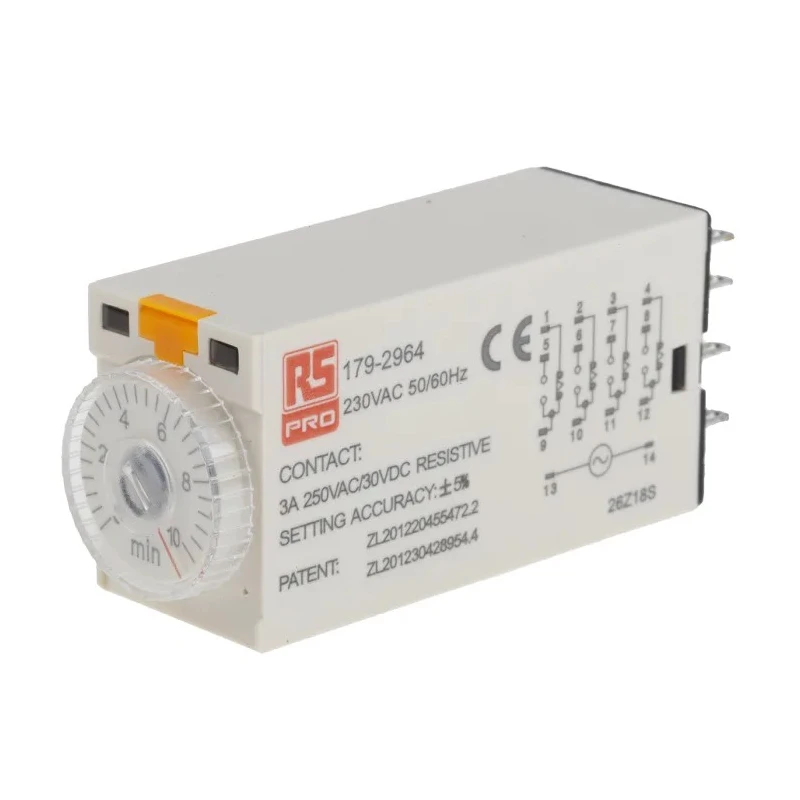

RS PRO Timer Relay with 4-Contact 230V AC, 0.5 to 10 min Time Range, 1-Function, 4PDT Switch Configuration 179-2964

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Timer Relay with 4-Contact 230V AC, 0.5 to 10 min Time Range, 1-Function, 4PDT Switch Configuration 179-2964

Name: RS PRO Timer Relay with 4-Contact 230V AC, 0.5 to 10 min Time Range, 1-Function, 4PDT Switch Configuration 179-2964
Brand: RS PRO
SKU: 154011
Price: 59.41 USD
Availability: InStock



Category Timer Relays Brand RS PRO Condition New

Specifications

Country of Origin	China
Brand	RS PRO
Length	53mm
Model	179-2964
Mode	ON Delay
Width	21.5mm
Series	RS PRO
Maximum Operating Temperature	55°C
Contact Configuration	4PDT
Minimum Operating Temperature	-10°C
Time Range	0.5 to 10 min
Terminal type	14-Pin
Standards/Approvals	RoHS
Number of Contacts	4
Number of Timer Functions	1
Contact Current	3A
Timing Adjustment	Dial
Supply AC Voltage	230V ac
Suitable sockets for the 8-pin and 14-pin timer relays from this series are	121-7802 or 121-7803 (Note: The sockets are supplied with a metal clip.)

Key Features

The relay operates via an ON delay mode, suitable for various control applications.

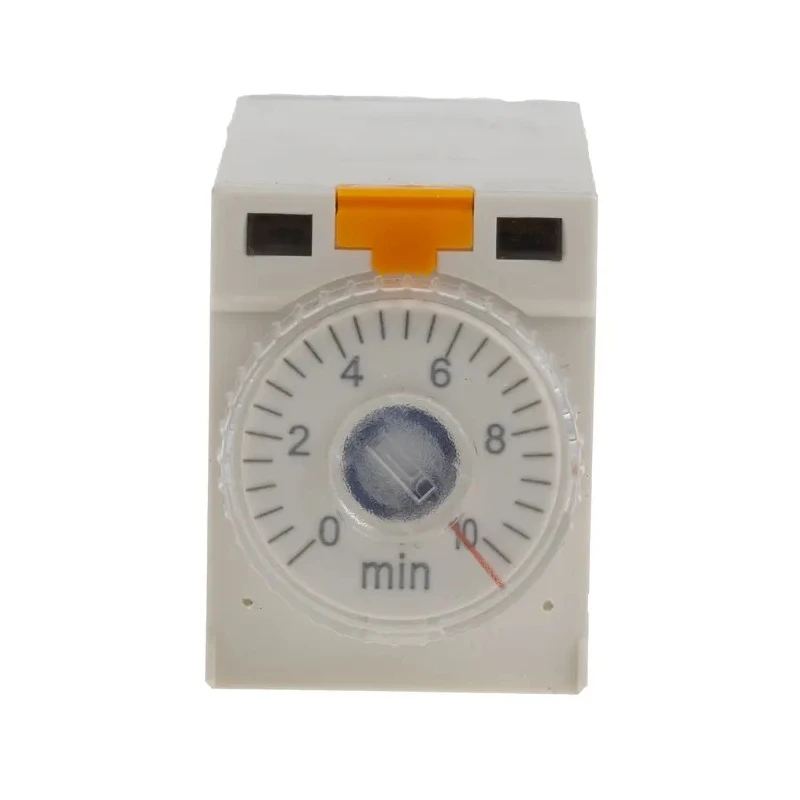

Equipped with a dial for easy timing adjustments within the specified time range.
Operates reliably between -10°C and 55°C operating temperature.
Features a contact current rating of 3A and a 14-pin terminal type for secure connections.
The device measures 53mm in length and 21.5mm in width, offering a compact form factor.
Complies with RoHS standards ensuring safety and environmental compliance.
Country of origin is China, reflecting international manufacturing standards.
Compatible with suitable relay sockets 121-7802 or 121-7803 that include a metal clip for installation.

Product Description

RS PRO 179-2964 Timer Relay is a high-quality timer relay engineered for industrial and electrical automation applications. Featuring a 4-contact 4PDT (four-pole double-throw) switch configuration, it operates on 230V AC supply voltage and provides a timing range adjustable from 0.5 to 10 minutes using an intuitive dial. The relay employs an ON Delay function, making it ideal for sequential control and timing delay operations.

Designed for durability and precision, this timer relay functions reliably within an operating temperature range of -10°C to 55°C, ensuring consistent performance in various environments. The contact current is rated at 3A, suitable for controlling moderate loads with stability. Its 14-pin terminal design allows for secure plug-in installation and easy replacement.

The compact dimensions of 53mm in length and 21.5mm in width make the relay appropriate for panel mounting where space is a consideration. It conforms to RoHS standards, ensuring compliance with health and environmental regulations. Manufactured in China under the RS PRO series, the product guarantees quality and reliability for professional and industrial use.

The relay is compatible with relay sockets model numbers 121-7802 or 121-7803; these sockets include metal clips for firm mounting and connection. This plug-in style facilitates quick installation and serviceability in control systems.

The relay operates with an ON Delay mode. Timing adjustment is performed via a dial for precision. Range of time settings from 0.5 to 10 minutes. Rated 3A contact current to handle electrical loads. Terminal type is 14-pin plug-in for compatibility.

Compact size of 53mm length and 21.5mm width. Environmentally compliant with RoHS certification. Compatible with specified relay sockets with metal clips.

This product is widely employed in industrial automation, electrical panels, manufacturing equipment, HVAC systems, and other applications requiring time delay and control automation. Choose RS PRO 179-2964 Timer Relay for reliable, precise, and standardized timing solutions in electrical control circuits.
