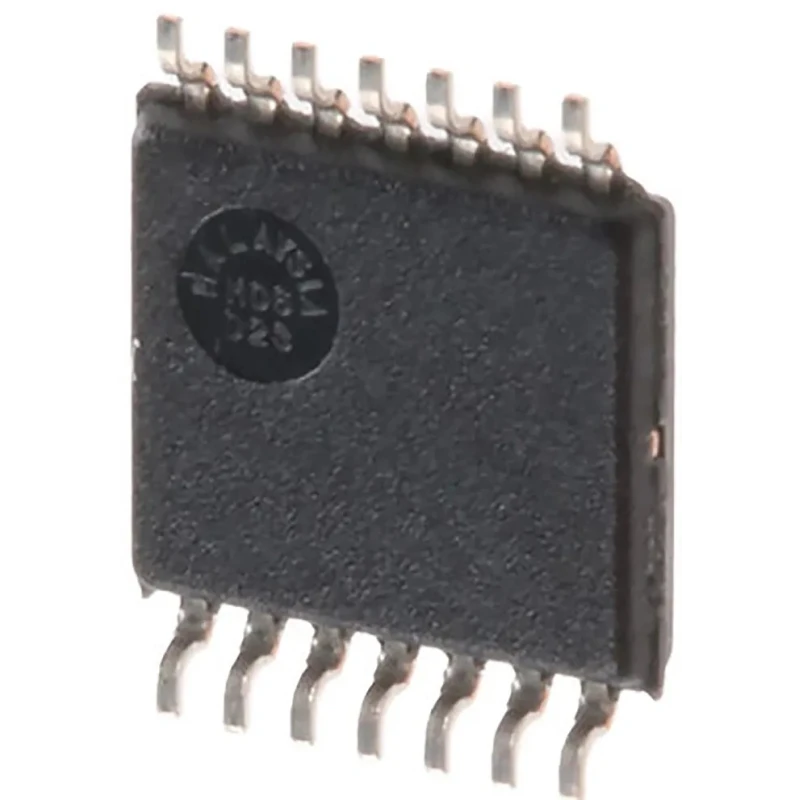

Texas Instruments Operational Amplifier, 10 MHz Gain Bandwidth, 4-Channel, 14-Pin TSSOP, 1.8-5.5V TLV4316IPWR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.05mm |
| Length | 5.1mm |
| Model | TLV4316IPWR |
| Width | 4.5mm |
| Mount Type | Surface |
| Series | TLV4316 |
| Output Current | 50mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 1.8V |
| GBP - Gain Bandwidth Product | 10MHz |
| Input Bias Current | ±10 pA |
| Vos - Input Offset Voltage | ±4.5 mV |
| Slew Rate | 6V/μs |
Key Features
- Operates within a minimum voltage of 1.8V and maximum of 5.5V.
- Features a gain bandwidth product of 10 MHz ensuring high speed performance.
- Includes four amplifier channels in a compact 14-pin TSSOP surface mount package.
- Wide temperature range operation from -40°C to 125°C suits demanding environments.
- Low input offset voltage of ±4.5 mV improves signal accuracy.
- Slew rate of 6 V/μs provides fast response to input changes.
- Extremely low input bias current of ±10 pA reduces error currents.
- Compliant with RoHS standards for environmental safety.
Product Description
Texas Instruments TLV4316IPWR is a high-performance operational amplifier offering a gain bandwidth of 10 MHz suitable for precise signal amplification in various industrial and automotive applications. This device utilizes a compact 14-pin TSSOP surface mount package designed for efficient space utilization on densely populated PCBs.
Operating from a low supply voltage range of 1.8V to 5.5V, this 4-channel amplifier supports applications requiring low power consumption while maintaining substantial speed and accuracy. Its wide operating temperature span from -40°C to 125°C ensures dependable operation in harsh environments, including automotive and industrial control systems.
The device features a low input offset voltage of ±4.5 mV and a very low input bias current of ±10 pA, enhancing the precision in sensitive analog circuits. With a slew rate of 6 V/μs and output current capability of up to 50 mA, it is suitable for driving moderate loads in sensor and signal conditioning circuits.
Certified to be RoHS compliant and meeting the automotive AEC-Q100 standard, the TLV4316IPWR ensures conformance to environmental and quality standards required in modern electronic designs.
Minimum supply voltage: 1.8V. Maximum supply voltage: 5.5V. Gain bandwidth product: 10 MHz. Number of channels: 4. Operating temperature range: -40°C to 125°C.
This operational amplifier is ideal for industrial instrumentation, automotive electronics, and general-purpose low-voltage amplification needs. Its balance between performance, size, and compliance makes it a reliable choice for engineers designing mixed-signal circuits.
Explore the broader range of Operational Amplifiers and semiconductor components within the Electronics & Electricals category on EnvMart for complementary devices and development resources.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 10 MHz, ensuring high-speed performance for signal amplification.
This model operates within a supply voltage range of 1.8V to 5.5V, making it suitable for low-voltage applications.
It features four amplifier channels, allowing for multiple signal processing tasks simultaneously.
The input offset voltage is ±4.5 mV, which helps improve signal accuracy in sensitive applications.
The maximum operating temperature for this operational amplifier is 125°C, suitable for demanding environments.
The slew rate of this model is 6 V/μs, providing a fast response to input changes.
It comes in a compact 14-pin TSSOP surface mount package, designed for efficient space utilization on PCBs.
The input bias current is extremely low at ±10 pA, which reduces error currents in the circuit.
Yes, it is RoHS compliant and meets the automotive AEC-Q100 standard, ensuring environmental and quality compliance.
It has an output current capability of up to 50 mA, suitable for driving moderate loads in various applications.
The dimensions of this model are 5.1 mm in length, 4.5 mm in width, and 1.05 mm in height.
This operational amplifier is ideal for industrial instrumentation, automotive electronics, and general-purpose low-voltage amplification needs.
