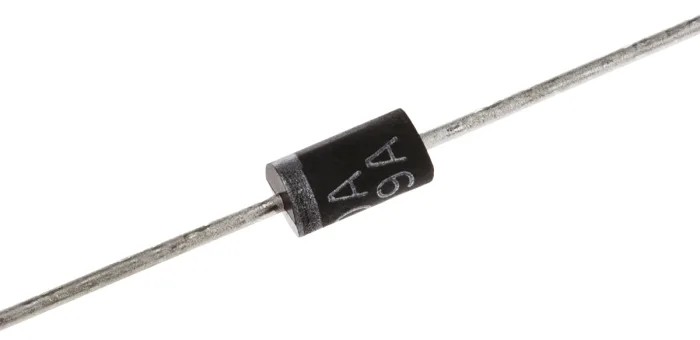

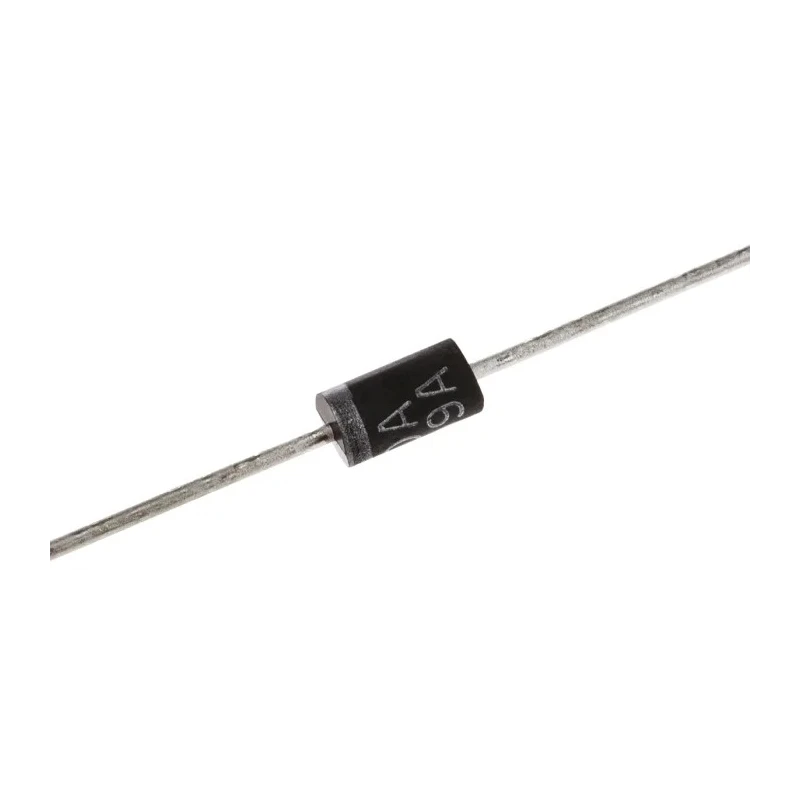

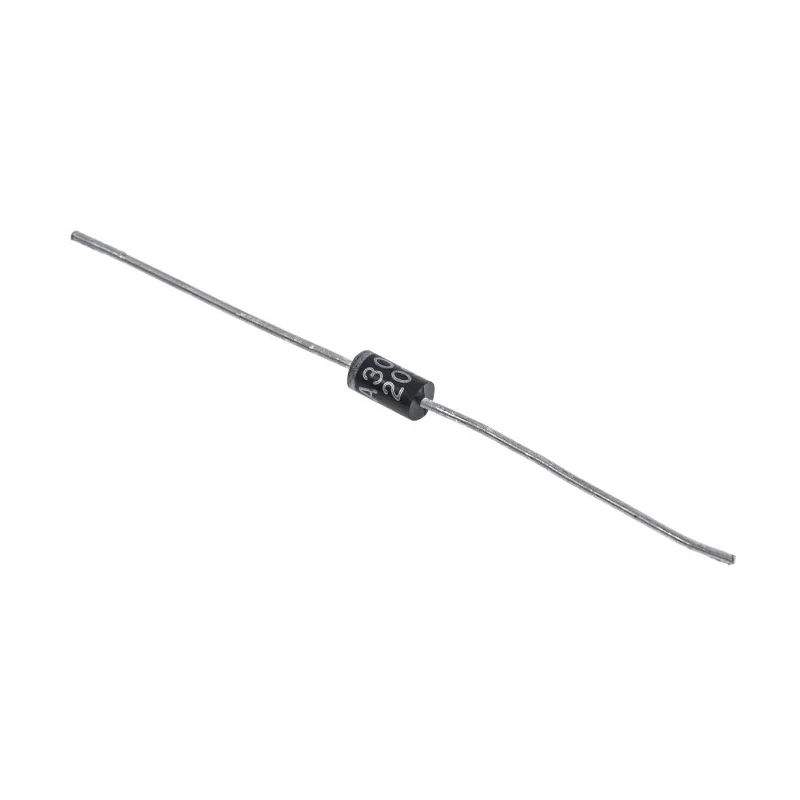

Vishay 1-Element Uni-Directional Transient Voltage Suppressor 500 W, 2-Pin DO-204AC SA30A-E3/54

Vishay SA30A-E3/54 is a 1-Element Uni-Directional Transient Voltage Suppressor designed to protect sensitive electronic components from transient voltage spikes and surges. It provides 500 W peak pulse power dissipation capability with a compact 2-Pin DO-204AC through-hole package, making it suitable for various industrial and automotive applications.

The device features a single diode configuration with a minimum breakdown voltage of 33.3 V and a clamping voltage of 48.4 V, ensuring precise suppression of transient voltages that could otherwise damage electronic circuits. Its maximum reverse stand-off voltage is 30 V, providing added robustness in protecting sensitive semiconductor devices.

With an operating temperature range from -55°C up to 175°C, this transient voltage suppressor is reliable under harsh environmental conditions encountered in automotive and industrial environments. It meets the AEC-Q101 automotive standard and has built-in Electrostatic Discharge (ESD) protection, making it ideal for critical design requirements.

The component's dimensions of 7.6 mm length, 3.3 mm height, and 3.3 mm width make it easy to integrate on printed circuit boards where space is limited. Its peak pulse current rating of 10 A and peak pulse power dissipation of 500 W provide effective transient suppression for a wide range of applications including power supplies, consumer electronics, automotive electronics, and telecommunications equipment.

Vishay's TRANSZORB TVS series components are trusted globally for transient voltage protection with quality and durability, ensuring long-term device protection and system reliability.

This suppressor features a single diode configuration for unidirectional operation. It has a minimum breakdown voltage of 33.3 V ensuring precise voltage clamping. Designed for through-hole mounting with a DO-204AC package type.

Capable of peak pulse power dissipation of up to 500 W for transient suppression. Clamping voltage is 48.4 V to protect circuits from voltage spikes. Operating temperature ranges from -55°C to 175°C for wide environmental tolerance.

Features ESD protection and complies with the automotive AEC-Q101 standard. Compact dimensions with 7.6 mm length and 3.3 mm diameter and width. Maximum peak pulse current of 10 A ensures robust transient handling. Explore more Vishay electronic components and Transient Voltage Suppressors at EnvMart for reliable industrial, automotive, and electronics manufacturing applications.
