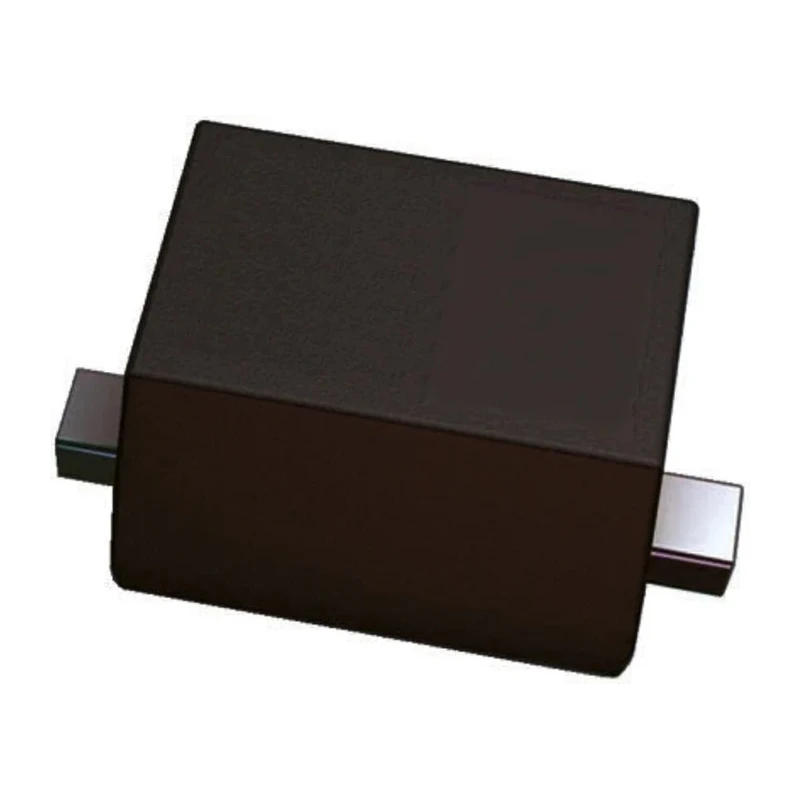

onsemi 1-Element Uni-Directional TVS Diode Surface Mount SOD-523 Package 240W ESD5Z12T1G

The onsemi ESD5Z12T1G is a high-performance 1-element uni-directional transient voltage suppressor (TVS) diode designed for surface mount applications in the SOD-523 package. It provides reliable protection against damaging electrostatic discharge (ESD) and voltage transients in sensitive electronic circuits, ensuring component safety and extended device life.

This device delivers a peak pulse power dissipation of 240 W and features a low leakage current of 10 nA, making it ideal for precision electronics that require minimal influence on normal operation. With a minimum breakdown voltage of 14.1 V and a maximum reverse stand-off voltage of 12 V, it safeguards circuits by clamping voltage spikes to a maximum of 25 V.

Compact with a length of 1.3 mm, width of 0.9 mm, and height of 0.7 mm, its small footprint enables efficient board space utilization in densely packed devices such as portable electronic devices, cellular phones, and digital cameras. The diode has a uni-directional configuration and consists of a single element per chip, providing focused protection where polarity control is essential.

Capable of operating in temperature ranges from -55°C up to 150°C, this TVS diode can endure harsh working environments including automotive and industrial sectors. It complies with the AEC-Q101 automotive standard and offers IEC61000-4-2 level 4 ESD and IEC61000-4-4 level 4 EFT protections, guaranteeing robust and reliable operation under stringent quality requirements.

Typical application areas include portable devices, cellular communication equipment, digital imaging devices, and power supplies where transient voltage suppression is critical. This diode is specifically engineered to respond quickly to voltage surges, protecting sensitive electronics from damage and improving overall system reliability.

Designed to protect voltage-sensitive electronics from electrostatic discharge (ESD) and transient voltage events. Excellent clamping capability and fast response time with low leakage current. Wide operating temperature range from -55°C to 150°C.

Compact SOD-523 surface mount package with small form factor. Automotive grade with AEC-Q101 certification. Complies with IEC standards for ESD and EFT protection level 4. Peak pulse power dissipation of 240 W and peak pulse current of 9.6 A.

Suitable for portable devices, cellular phones, digital cameras, and power supplies. Explore more quality Transient Voltage Suppressors and semiconductor diodes at EnvMart for your industrial and electronic component needs.
