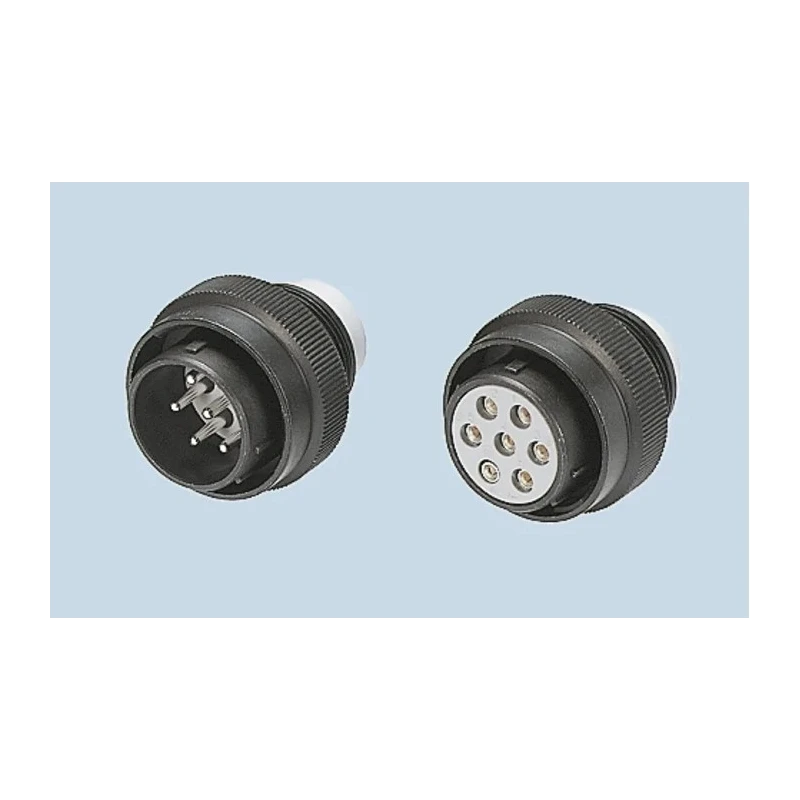

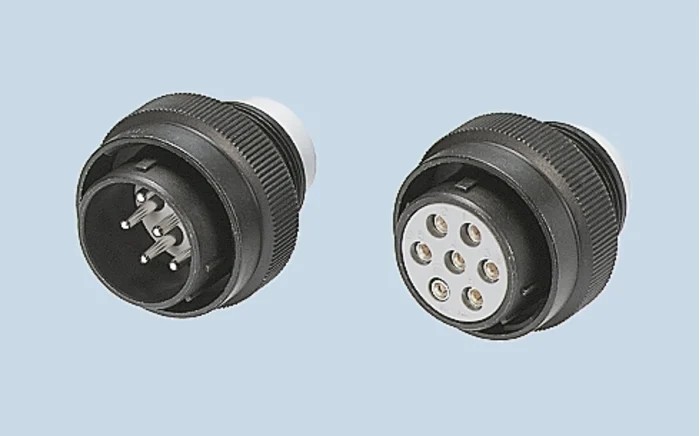

JAE Industrial Circular Connector Cable Plug 17 Contacts 26.9 mm IP55 Rated JL05
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 250V |
| Brand | JAE |
| Orientation | Straight |
| Current | 13A |
| Model | JL05 |
| IP Rating | IP55 |
| Mount Type | Cable |
| Housing Material | Aluminium Alloy |
| Contact Material | Copper |
| Series | JL05 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pole Format | 17 |
| Contact Plating | Silver |
| Number of Contacts | 17 |
| Contact Gender | Male |
| Shell Size | 20 |
| Mating Type | Bayonet |
| Connector Size | 26.9 mm |
| Plug/Socket | Plug |
Key Features
- The connector features 17 silver-plated copper contacts for reliable electrical connection.
- It is designed as a cable mount plug with a 26.9 mm connector diameter.
- The unit operates reliably from -55°C to 125°C temperature range.
- Supports an operating voltage of 250V and current rating of 13A with bayonet mating.
- Its housing is constructed from durable aluminium alloy ensuring robust mechanical protection.
- Termination is by crimp method providing secure contact fixing.
- The connector gender is male with a straight orientation for ease of use.
- The product conforms to no specific standards or approvals but is manufactured to JAE quality standards.
Product Description
JAE JL05-6A20-29PC-F0-R is a high-quality industrial circular connector plug designed for cable mounting applications. This product features 17 silver-plated copper contacts ensuring excellent conductivity and corrosion resistance. The connector size is 26.9 mm and it has a male contact gender with a straight orientation.
Engineered for demanding environments, it has an IP55 rating which provides protection against dust and low pressure water jets, making it suitable for industrial, manufacturing, and heavy electrical installations. The operating voltage of this connector is 250V with a current rating of 13A, supporting secure and stable power transmission.
The connector uses bayonet type mating ensuring quick and reliable connection locking. The housing material is aluminium alloy, offering mechanical strength and lightweight characteristics. It is designed for operating temperatures ranging from -55°C to 125°C, supporting harsh environmental conditions.
Termination is by crimp method for firm and enduring contact retention. While it does not hold specific certifications or approvals, it benefits from precise Japanese manufacturing standards. This product is ideal for power connectors in industrial machinery, automation equipment, and other electrical control systems.
The connector features 17 silver-plated copper contacts for reliable electrical connection. It is designed as a cable mount plug with a 26.9 mm connector diameter. The unit operates reliably from -55°C to 125°C temperature range.
Supports an operating voltage of 250V and current rating of 13A with bayonet mating. Its housing is constructed from durable aluminium alloy ensuring robust mechanical protection. Termination is by crimp method providing secure contact fixing.
The connector gender is male with a straight orientation for ease of use. The product conforms to no specific standards or approvals but is manufactured to JAE quality standards. Designed to function with an IP55 ingress protection rating preventing dust and water ingress.
Explore EnvMart's comprehensive range of Industrial Circular Connectors to find compatible products and accessories for your electrical and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 125°C.
It has a current rating of 13A.
This connector uses a crimp termination method for secure contact fixing.
It has an IP55 rating, providing protection against dust and low-pressure water jets.
The connector size is 26.9 mm in diameter.
This model features 17 contacts.
The housing is constructed from aluminium alloy, providing robust mechanical protection.
The operating voltage for this connector is 250V.
It has a male contact gender with a straight orientation.
This connector utilizes bayonet type mating for quick and reliable connection locking.
It operates reliably in a temperature range from -55°C to 125°C, suitable for harsh environments.
The connector is manufactured in Japan.
