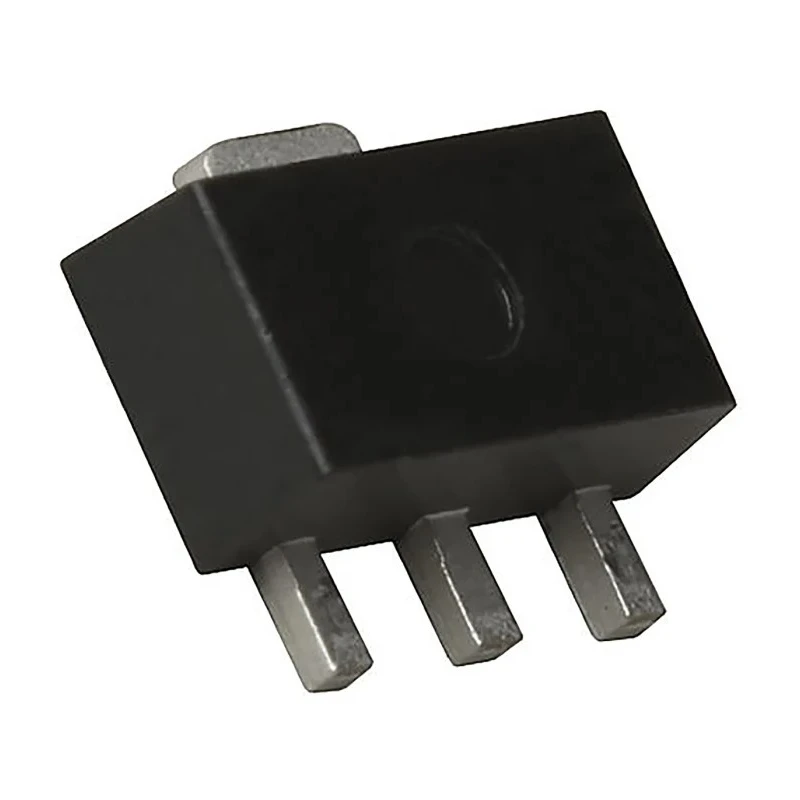

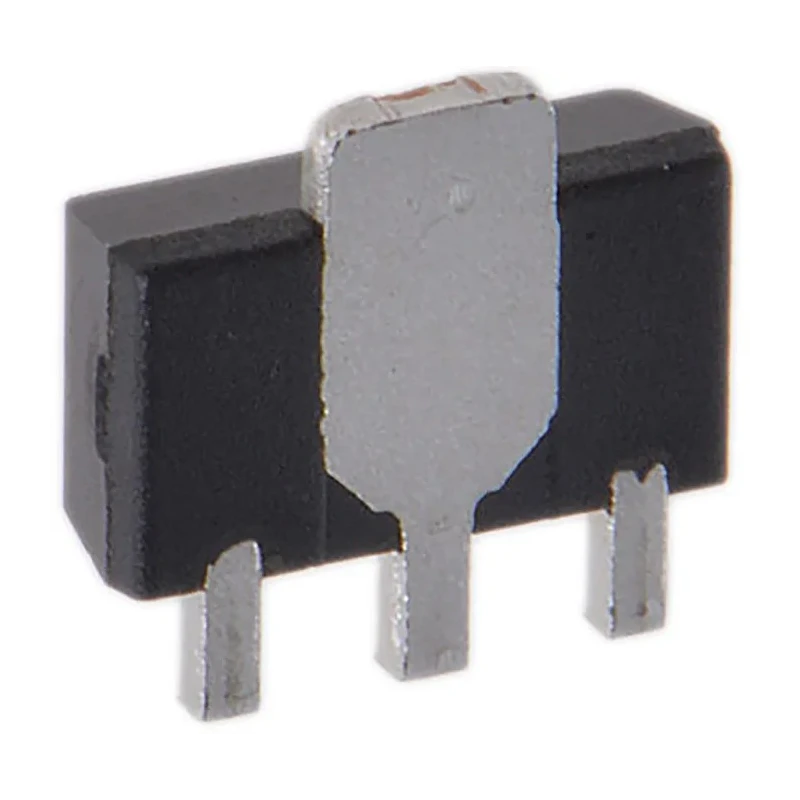

ROHM NPN Transistor 1.5 A 80 V 4-Pin SOT-89 Surface Mount Common Emitter 2SCR554P5T100

ROHM 2SCR554P5T100 is a high-quality NPN bipolar transistor designed for various electronic applications requiring moderate current and voltage handling in a compact surface mount format. With a maximum DC collector current of 1.5 A and a collector-emitter voltage rating of 80 V, this transistor is well suited for switching and amplification tasks in consumer electronics, industrial controls, and signal processing circuits. Its common emitter configuration and robust power dissipation of up to 500 mW provide reliable and efficient performance.

The transistor’s 4-pin SOT-89 package ensures convenient mounting on printed circuit boards with surface mount techniques, saving space and reducing installation complexity in compact electronic designs. Its minimum DC current gain of 120 and maximum transition frequency of 100 MHz enable efficient amplification at high speeds, making it suitable for signal and power control in various environments.

ROHM ensures robust thermal operation with a maximum operating temperature of 150 degrees Celsius, supporting reliable function in harsh industrial and automotive conditions. The transistor's small physical footprint with dimensions of 4.7 mm in length, 2.7 mm in width, and 1.5 mm in height further supports compact assembly in high-density electronic designs.

This transistor is ideal for electronics manufacturing, industrial automation, power supply circuits, and embedded system designs requiring precise and dependable semiconductor components. Its surface mount package type integrates seamlessly into automated assembly lines, facilitating efficient production.

Supports maximum DC collector current of 1.5 amperes. Collector-emitter voltage rating of 80 volts for reliable switching performance. Surface mount design with 4-pin SOT-89 package for efficient PCB integration. Common emitter transistor configuration with NPN polarity.

Capable of max power dissipation of 500 milliwatts under operating conditions. Minimum DC current gain (hFE) of 120 ensures good amplification. High transition frequency up to 100 MHz suitable for high-speed applications.

Operates safely up to 150 degrees Celsius maximum temperature. Small physical size with dimensions approximately 4.7 mm length, 2.7 mm width, and 1.5 mm height. Compatible with various electronic components, power, and control circuits.
