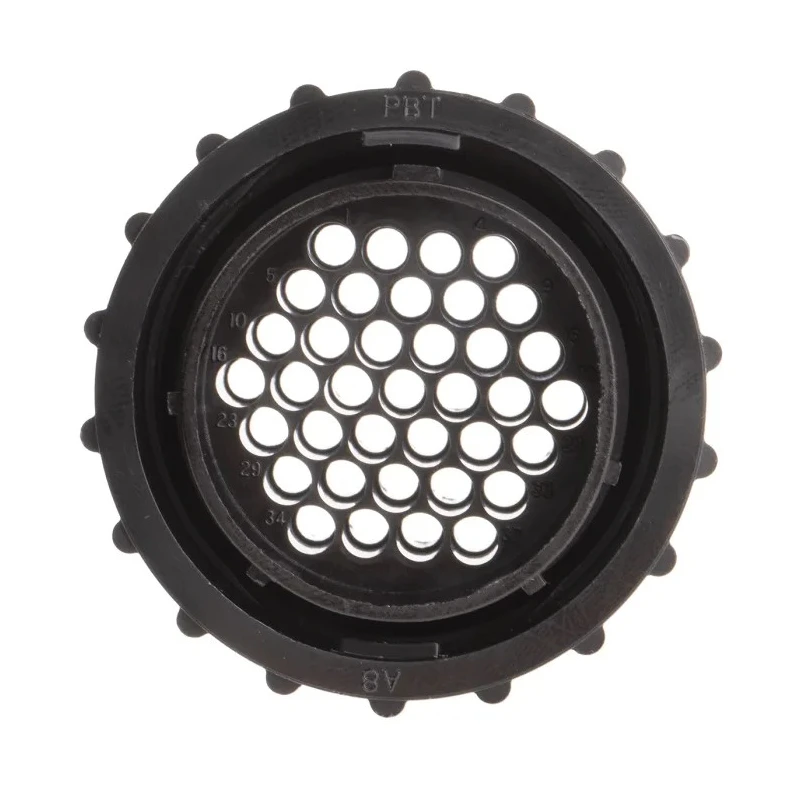

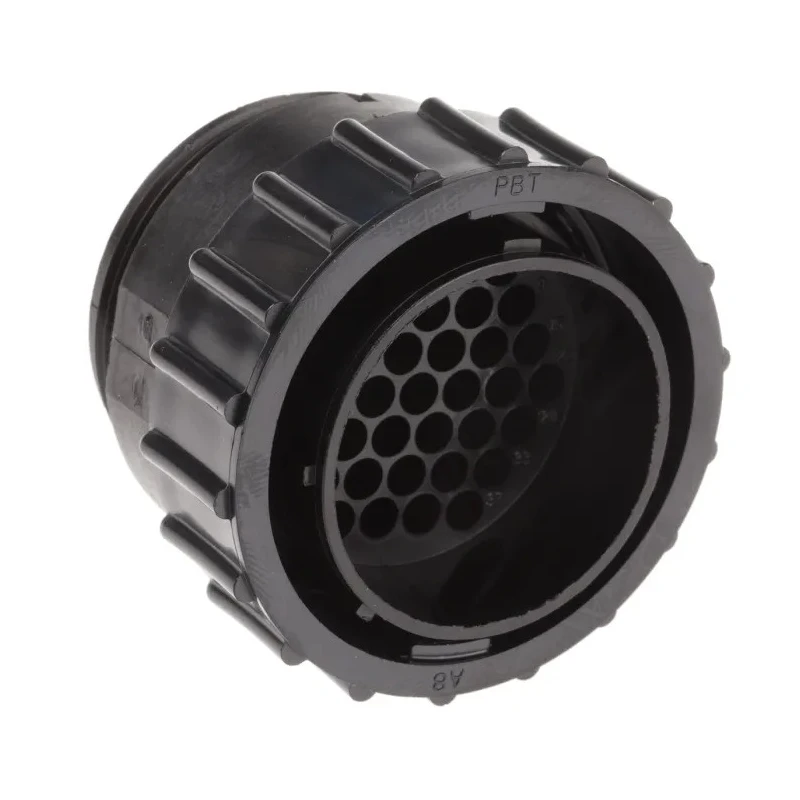

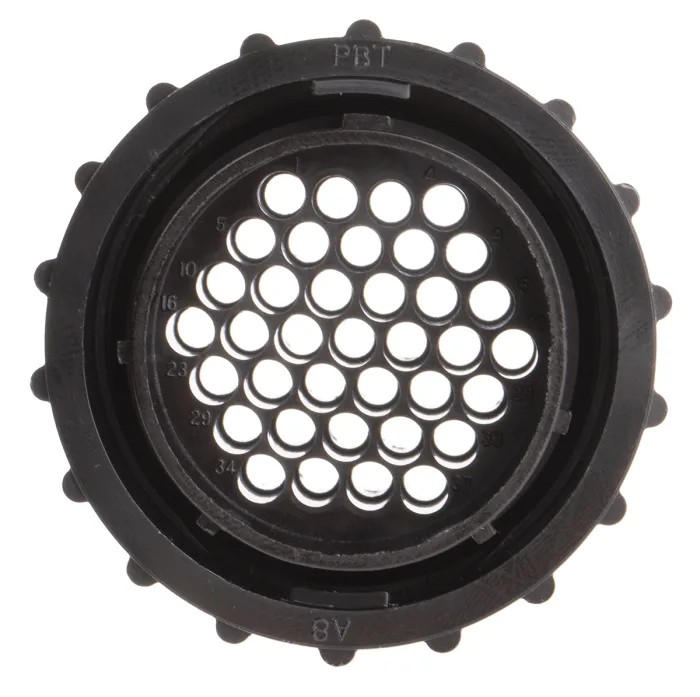

TE Connectivity Circular Connector 37 Contacts Cable Standard Plug Male CPC Series 206305-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Model | 206305-1 |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Series | CPC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | CSA, RoHS, UL 94V-0 |

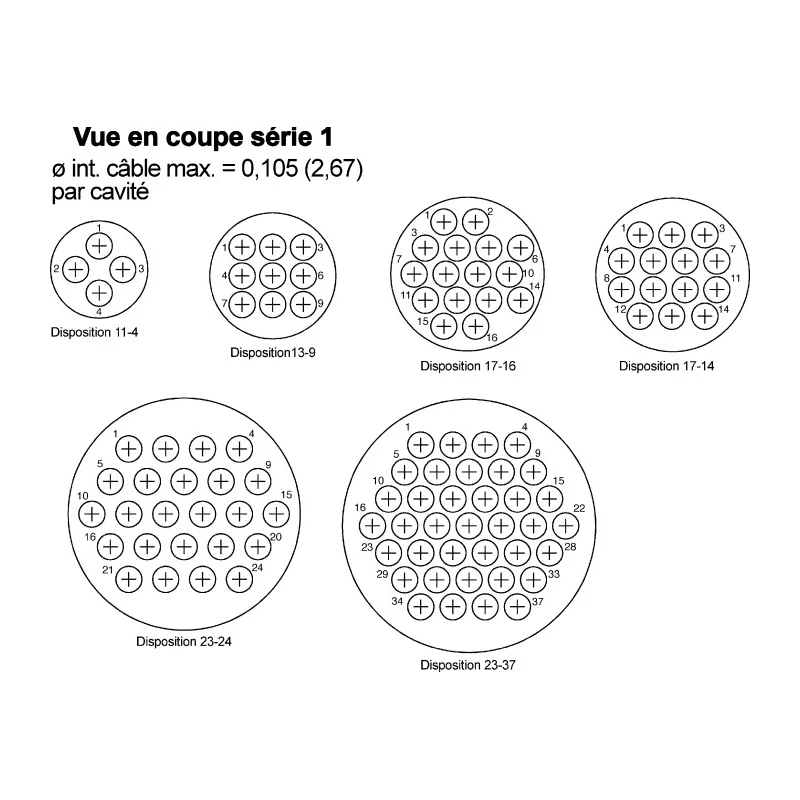

| Number of Contacts | 37 |
| Contact Gender | Male |
| Shell Size | 23 |
| Mating Type | Threaded |
| Connector Size | Standard |
| Plug/Socket | Plug |
Key Features
- Supports a voltage rating of 600V suitable for demanding industrial environments.
- Equipped with a threaded mating type and positive lock feature for secure connection.
- Constructed using heat-resistant thermoplastic housing with UL 94V-0 rating for safety.
- Operates reliably within a temperature range of -55°C to 105°C to withstand harsh conditions.
- Designed with crimp termination for durable and maintenance-friendly contact assembly.
- Compatible with Series 1 CPC connectors, supporting signal and low current applications up to 13A.
- Ideal for use in transportation, industrial automation, HVAC, and material handling equipment.
- Offers built-in pin and socket protection to enhance durability and prevent damage.
Product Description
TE Connectivity 206305-1 circular connector is a 37-contact, cable mount plug type connector from the CPC series designed for robust industrial use. It offers a standard connector size with straight orientation and male contacts, providing reliable signal and low current transmission. This connector is built for high performance, capable of handling voltages up to 600V and operating within a wide temperature range from -55°C to 105°C.
The connector's thermoplastic housing is UL 94V-0 rated, making it heat resistant and self-extinguishing, enhancing safety and durability in industrial environments. Its threaded mating type with a knurled coupling ring ensures a positive lock and secure connection, preventing accidental disengagement in applications with vibration and shock.
Designed to support industrial, transportation, and automation sectors, this connector facilitates quick assembly and field servicing with crimp termination and easily removable contacts for repair. It complies with CSA, RoHS, and UL standards, confirming its suitability for demanding applications.
Supports 37 contacts for flexible connection requirements. Cable mount design allows for various connection configurations. Standard connector size fits widely used industrial systems. Plug type with male contacts ensures proper mating with receptacles.
Series 1 CPC connectors optimized for signal and low-current applications, with a current rating up to 13A. Operates effectively at voltages up to 600V. Housing material is thermoplastic for lightweight and durable construction.
Equipped with crimp termination type for secure connections and rapid repair capability. Operating temperature range from -55°C to 105°C supports harsh environmental conditions. Threaded mating type with a secure locking mechanism.
This TE Connectivity circular connector is ideal for use in railway and transit vehicles, lighting and signage systems, HVAC and commercial building equipment, motor vehicles including buses and trucks, agricultural and construction machinery, industrial automation, material handling equipment, instrumentation, and testing systems. Its design ensures rugged reliability, shock and vibration resistance, and ease of maintenance, making it highly suitable for industrial and commercial applications.
Explore more industrial electrical connectors and Circular Connector solutions at EnvMart to find precise matches for your technical and industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a voltage rating of 600V, making it suitable for demanding industrial environments.
This connector operates reliably within a temperature range of -55°C to 105°C, allowing it to withstand harsh conditions.
It features 37 contacts, providing flexible connection requirements for various applications.
It is designed with crimp termination, which allows for durable and maintenance-friendly contact assembly.
The housing is made of heat-resistant thermoplastic material with a UL 94V-0 rating for safety and durability.
Yes, it is compatible with Series 1 CPC connectors, supporting signal and low current applications up to 13A.
It features a threaded mating type with a positive lock mechanism, ensuring a secure connection.
This model has a standard connector size and a shell size of 23, making it suitable for widely used industrial systems.
It complies with CSA, RoHS, and UL standards, confirming its suitability for demanding applications.
It is ideal for use in transportation, industrial automation, HVAC, and material handling equipment.
The connector has male contacts, ensuring proper mating with corresponding receptacles.
The country of origin for this connector is India.
