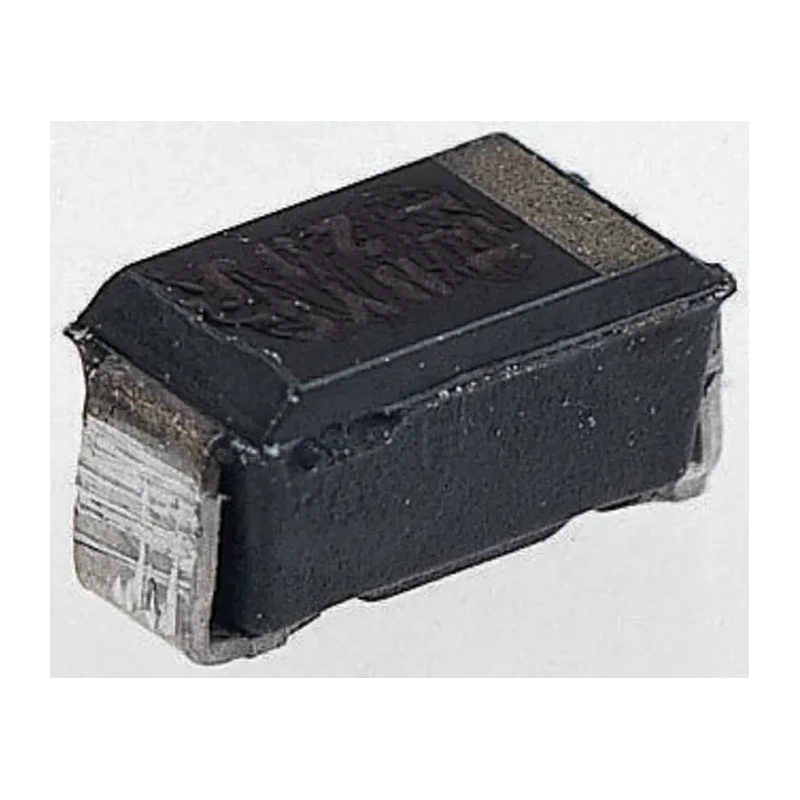

STMicroelectronics 600 V 1 A Switching Diode Surface Mount DO-214AA Package STTH1R06U

STMicroelectronics STTH1R06U is a high-performance switching diode designed for surface mount applications. Packaged in a compact DO-214AA surface mount package, this diode handles a maximum continuous forward current of 1 ampere and withstands peak reverse repetitive voltages up to 600 volts. It is suitable for applications requiring fast switching and low power loss.

This semiconductor diode features a peak reverse recovery time of 45 nanoseconds and a maximum forward voltage drop of 1.7 volts, ensuring efficient performance in power switching and rectification circuits. Its low leakage current of 1 microampere contributes to reduced power consumption and heat generation.

Operating temperature range from -65°C to 175°C ensures reliability in harsh industrial and automotive conditions. The diode's physical dimensions (4.6 mm length, 3.95 mm width, 2.45 mm height) enable compact PCB designs. The 2-pin configuration supports straightforward circuit integration.

Typical uses include power supplies, converters, inverters, and motor control circuits in industrial, automotive, and electronic control systems. The STTH1R06U diode is well-suited for high-frequency and fast switching applications requiring durability and performance.

The diode supports a maximum continuous forward current of 1 ampere. It features a peak reverse repetitive voltage rating of 600 volts. The device has a fast peak reverse recovery time of 45 nanoseconds. It operates reliably in temperatures ranging from -65°C to 175°C.

The package dimensions include 4.6 mm length and 3.95 mm width. The diode offers a maximum forward voltage drop of 1.7 volts. It has low peak reverse current leakage of 1 microampere. The diode is designed as a single switching rectifier with 2 pins.

The DO-214AA package accommodates compact surface mount PCB layouts. Explore the wide range of semiconductor Diodes offered by STMicroelectronics and other top brands at EnvMart for reliable components in your advanced electronic designs.
