Panasonic AQW Series Solid State Relay, 0.1A Load Current, 400V Load Voltage, 1.5V Control Voltage, PCB Mount DIP-8 AQW414

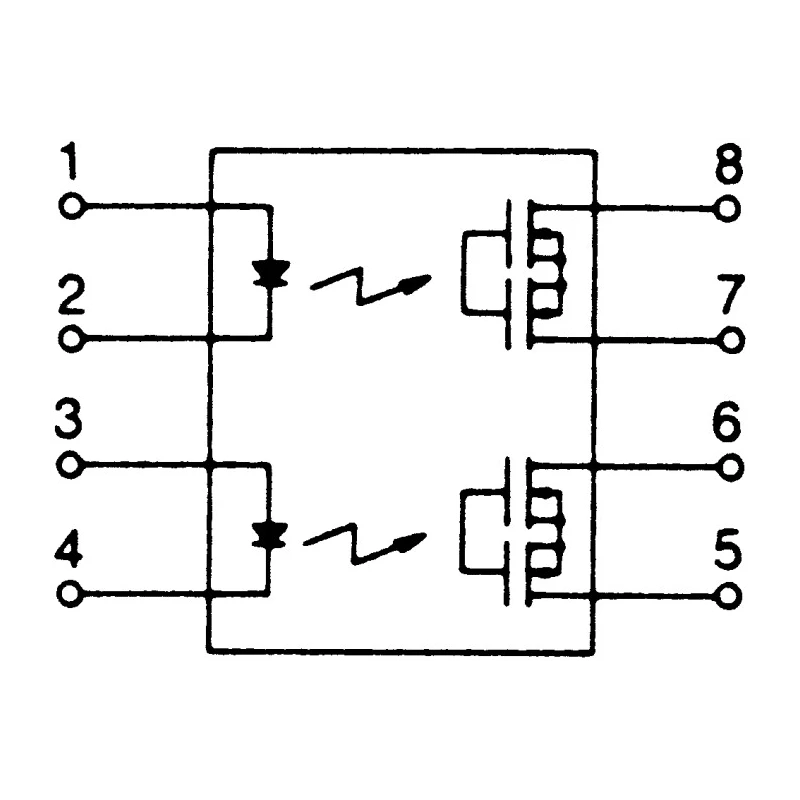

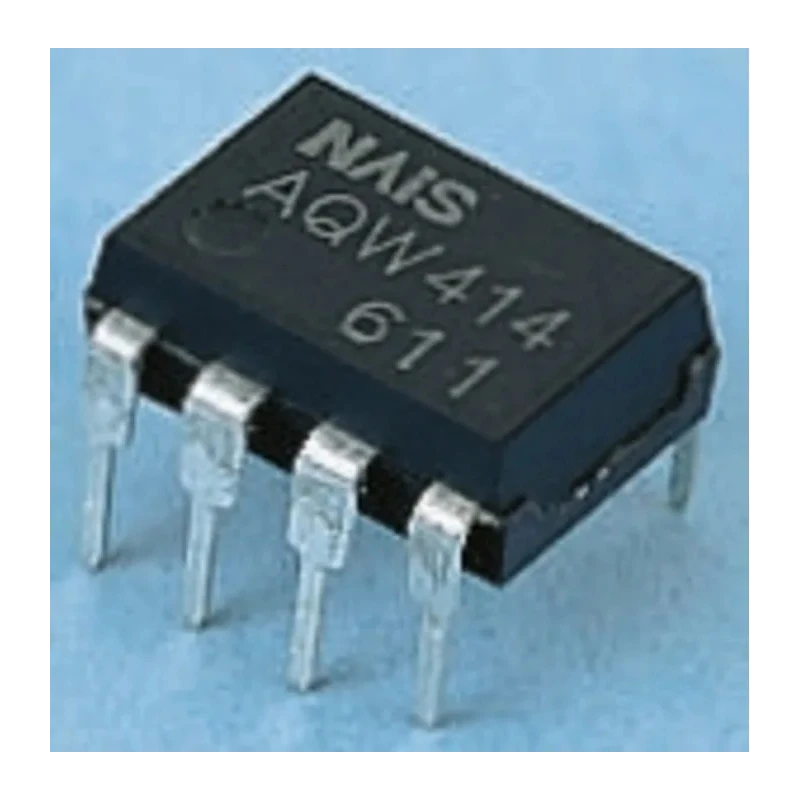

Panasonic AQW414 AQW Series Solid State Relay is a photomos optoelectronic relay with a MOSFET output stage housed in a compact 8-pin DIP-8 casing designed for PCB mounting. This relay supports a maximum load current of 0.1A and a load voltage of up to 400V, making it suitable for precise switching tasks in industrial and commercial electronic applications.

The relay operates with a minimum and maximum control voltage of 1.5V, facilitating low voltage control inputs. It exhibits a low on-state resistance of 50Ω which contributes to efficient power delivery and reduced heat generation. The device also features an exceptionally low off-state leakage current of 1μA and a capacitance of 1.5pF, resulting in minimal interference and high signal integrity.

Designed to withstand harsh environments, the AQW414 operates over a wide temperature range from -40°C to +85°C and is IP20 rated, indicating protection against solid objects greater than 12mm. The relay includes solder type terminals for secure and durable mounting on PCBs and conforms to UL standards, affirming its safety and compliance.

Applications for the Panasonic AQW414 include high-speed communication equipment, computers, industrial robots, and other precision automation systems requiring reliable solid state switching. Its photomos technology ensures silent operation, long life, and resistance to vibration and mechanical shock.

Manufactured in Japan, the AQW414 offers trusted quality and performance for demanding industrial and electronic automation needs. Designed for high-speed switching with a MOSFET output stage. Compact DIP-8 package suitable for PCB mounting.

Low on-state resistance of 50Ω ensuring efficient conduction. Wide operating temperature range from -40°C to +85°C. IP20 rated for basic protection. Extremely low off-state leakage current of 1μA. Output capacitance of 1.5pF for minimal signal disturbance.
