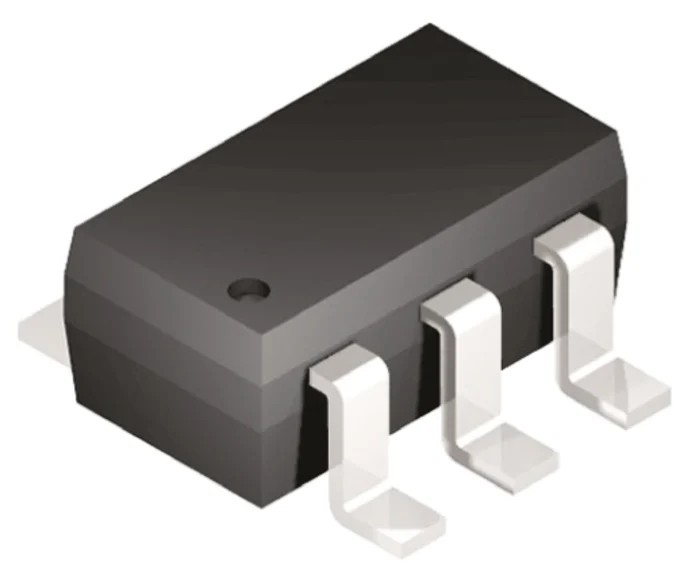

Texas Instruments Fixed Series Voltage Reference 1.25V 10mA Surface Mount 6-Pin SOT-23 ±0.2 % Accuracy REF3212AIDBVT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.15mm |
| Length | 2.9mm |
| Model | REF3212AIDBVT |
| Mount Type | Surface |
| Output type | Fixed |
| Series | REF3212 |
| Temperature Coefficient | 10.5 ppm/°C |
| Output Current | 10mA |
| Topology | Series |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Load Regulation | 60 μV/mA |
| Minimum Operating Temperature | -40°C |
| Reference Type | Fixed |
| Maximum Input Voltage | 7.5V |
| Line Regulation | 65 ppm/V |
| Minimum Input Voltage | 1.3V |
| Pin Count | 6 |
| Reference Voltage | 1.25V |
| Initial Accuracy | ±0.2 % |
Key Features
- Provides a stable fixed output voltage ideal for precision applications.
- Features a low temperature coefficient of 10.5 ppm/°C for excellent thermal stability.
- Supports a maximum output current of 10mA suitable for demanding circuits.
- Designed for surface mounting with a small footprint measuring 2.9mm length and 1.15mm height.
- Operates reliably over a wide temperature range from -40°C to 125°C.
- Incorporates a series topology for precise voltage regulation.
- Handles input voltages ranging from 1.3V minimum up to 7.5V maximum.
- Offers line regulation of 65 ppm/V and load regulation of 60 μV/mA for enhanced accuracy.
Product Description
Texas Instruments REF3212AIDBVT Fixed Series Voltage Reference is a precision power management IC designed for accurate voltage regulation in electronic systems. It delivers a fixed 1.25V output voltage with an initial accuracy of ±0.2 % and a low temperature coefficient of 10.5 ppm/°C, making it ideal for industrial, instrumentation, and control applications where stable voltage reference is critical.
The device comes in a compact 6-pin SOT-23 surface mount package, measuring 2.9mm in length and 1.15mm in height, allowing for space-efficient PCB designs. It supports an output current up to 10mA and can operate over a wide temperature range from -40°C to 125°C, ensuring durability in harsh environments.
With a series topology, the REF3212AIDBVT offers superior line regulation at 65 ppm/V and load regulation of 60 μV/mA, maintaining voltage accuracy under varying input voltages (1.3V to 7.5V) and load conditions. The 6-pin configuration facilitates flexible integration into power management circuits, making it suitable for industrial automation, laboratory equipment, instrumentation, and electronic consumer devices.
Provides a stable fixed voltage reference at 1.25V with high initial accuracy. Surface mount 6-pin SOT-23 package for compact installations. Wide operating temperature range from -40°C to 125°C. Low temperature coefficient of 10.5 ppm/°C for thermal stability.
Outputs up to 10mA supporting demanding load requirements. Excellent line regulation (65 ppm/V) and load regulation (60 μV/mA). Designed for power management IC applications requiring precision voltage references.
This Texas Instruments voltage reference component is essential for ensuring precise voltage control in semiconductors and electronic circuits. Its compact size, high accuracy, and robust performance make it suitable for a variety of industrial, laboratory, and manufacturing environments.
Explore more Voltage Reference and power management solutions at EnvMart to find components that fit your electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a stable fixed output voltage of 1.25V.
It supports a maximum output current of 10mA, suitable for demanding circuits.
It operates reliably over a wide temperature range from -40°C to 125°C.
The REF3212AIDBVT has an initial accuracy of ±0.2%.
This unit measures 2.9mm in length and 1.15mm in height.
It comes in a compact 6-pin SOT-23 surface mount package.
It can handle input voltages ranging from 1.3V minimum up to 7.5V maximum.
It features a low temperature coefficient of 10.5 ppm/°C for excellent thermal stability.
This model incorporates a series topology for precise voltage regulation.
It is suitable for industrial, instrumentation, and control applications where stable voltage reference is critical.
The country of origin for this product is India.
