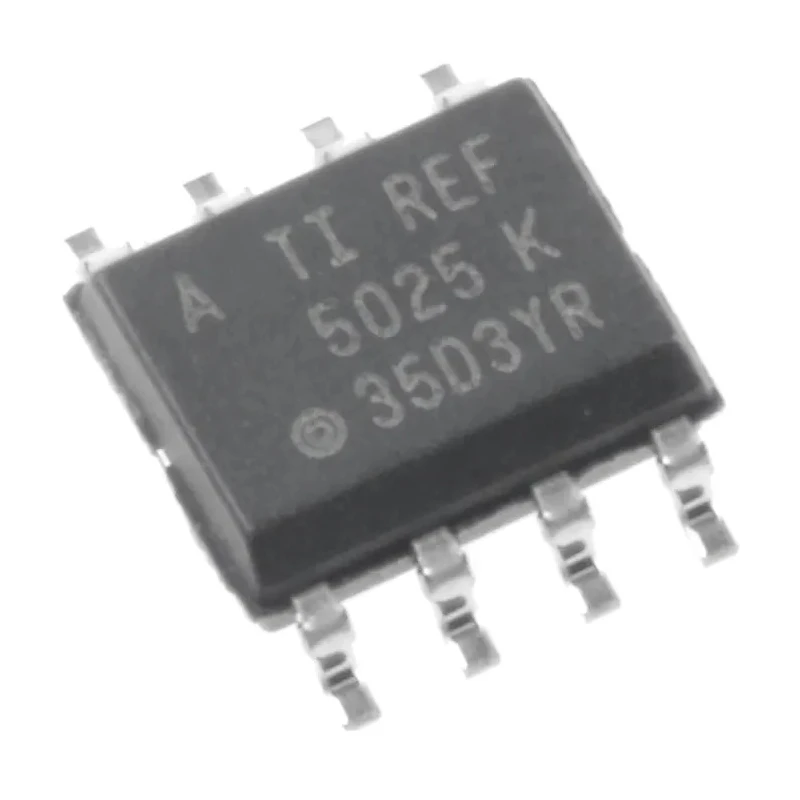

Texas Instruments Fixed Series Voltage Reference 2.5V ±0.05% 10mA 8-Pin SOIC REF5025AID

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Fixed Series Voltage Reference 2.5V ±0.05% 10mA 8-Pin SOIC REF5025AID

Name: Texas Instruments Fixed Series Voltage Reference 2.5V ±0.05% 10mA 8-Pin SOIC REF5025AID
Brand: Texas Instruments
SKU: 160387
Price: 4.55 USD
Availability: InStock



Category Voltage Reference Brand Texas Instruments Condition New

Specifications

Country of Origin	Malaysia
Brand	Texas Instruments
Height	1.5mm
Length	5mm
Model	REF5025AID
Mount Type	Surface
Output type	Fixed
Series	REF5025
Temperature Coefficient	3 ppm/°C
Output Current	10mA
Topology	Series
Maximum Operating Temperature	125°C
Package Type	SOIC
Load Regulation	50 ppm/mA
Minimum Operating Temperature	-40°C
Reference Type	Fixed
Maximum Input Voltage	18V
Line Regulation	1 ppm/V
Minimum Input Voltage	2.7V
Pin Count	8
Reference Voltage	2.5V
Initial Accuracy	±0.05 %

Key Features

Features an 8-pin SOIC surface mount package for compact PCB design.
Provides a stable output current of 10mA suitable for precise voltage referencing.
Operates within a broad temperature range from -40°C to 125°C.
Includes low temperature coefficient of 3 ppm/°C for reliability in varying conditions.
Supports line regulation of 1 ppm/V and load regulation of 50 ppm/mA for stable voltage output.
Maximum input voltage up to 18V with a minimum operating voltage of 2.7V.
Ideal for use in industrial, laboratory, and electronic circuitry requiring precise voltage references.
Made in Malaysia ensuring quality and manufacturing standards compliance.

Product Description

Texas Instruments REF5025AID is a fixed series voltage reference integrated circuit designed to provide precise and stable voltage output of 2.5V with an excellent initial accuracy of ±0.05%. Packaged in an 8-pin SOIC surface mount format, this device is engineered for applications requiring compact design and high reliability.

With a temperature coefficient of 3 ppm/°C and operational temperature range from -40°C to 125°C, this voltage reference delivers consistent performance in varying industrial and laboratory environments. Its low line regulation of 1 ppm/V and load regulation of 50 ppm/mA ensure stable voltage output under different input voltages and load conditions.

The REF5025AID supports output current up to 10mA with a maximum input voltage of 18V and a minimum input voltage of 2.7V, suitable for diverse power management and measurement applications.

Typical uses for this voltage reference IC include precision voltage sources for analog-to-digital converters (ADCs), digital-to-analog converters (DACs), sensors, instrumentation, and other electronic systems demanding high accuracy and stability.

Compact 8-pin SOIC surface mount package supports efficient PCB layout. Initial accuracy of ±0.05% guarantees precise voltage output. Wide operating temperature range (-40°C to 125°C) for harsh conditions. Low temperature coefficient ensures voltage stability across temperatures.

High line and load regulation provide consistent voltage under variable electrical conditions. This product is manufactured in Malaysia ensuring quality control.

Texas Instruments Voltage References are widely adopted across industries including industrial automation, laboratory instrumentation, manufacturing, and electronics design sectors.
