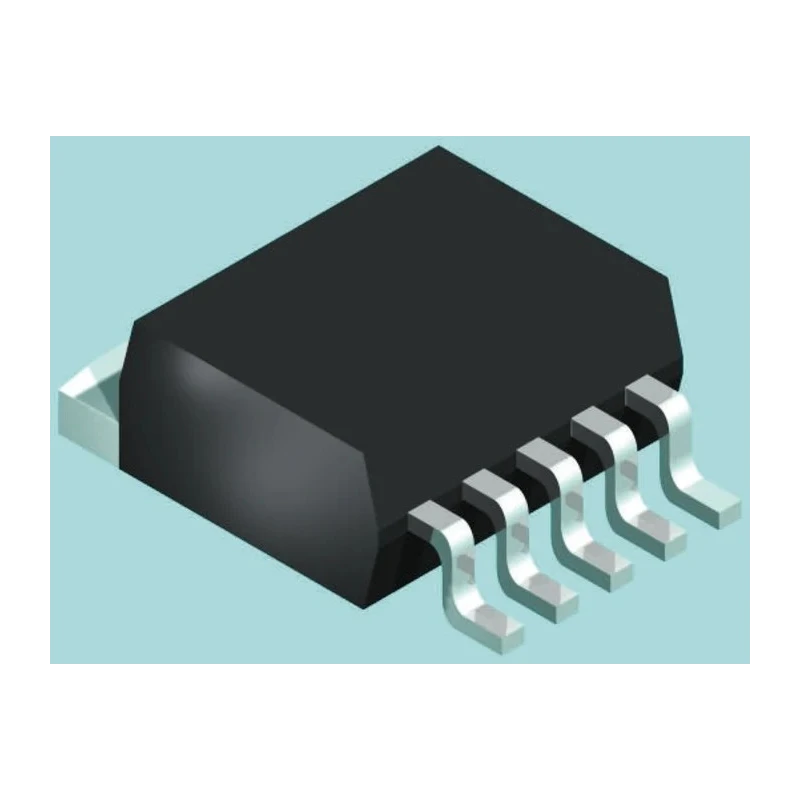

Texas Instruments Voltage Regulator 5.5V 1A Low Dropout Linear LDO Regulator SOT-223 5-Pin TPS79633DCQ

Texas Instruments TPS79633DCQ is a precision Low Dropout (LDO) linear voltage regulator designed to provide a stable 5.5V output voltage. Packaged in a compact SOT-223 5-pin surface mount, this device delivers up to 1A of output current with low quiescent current of 265μA, making it ideal for power-sensitive electronics applications.

The regulator supports a minimum input voltage of 2.7V and a maximum input voltage of 5.5V, supporting a wide range of battery-powered and industrial power supply systems. With a maximum operating temperature up to 150°C, the TPS79633DCQ ensures reliable operation under harsh environmental conditions.

Its positive polarity output and efficient low dropout architecture provide excellent line load regulation and high power supply rejection ratio (PSRR), minimizing noise and improving the performance of sensitive loads. The device complies with the TPS796xx series, offering consistency across product lines.

The physical package dimensions are 6.5mm length, 3.5mm width, and 1.6mm height, optimized for surface mounting applications on compact printed circuit boards. Its 5-pin configuration supports easy integration into automated assembly workflows, enhancing manufacturing throughput.

This voltage regulator is suited for a variety of industrial, electronic, and embedded system applications including power management in consumer electronics, instrumentation, and control systems.

Operates with a maximum input voltage of 5.5V and minimum input voltage of 2.7V. Features a low quiescent current of 265μA ensuring energy-efficient performance. Compact SOT-223 surface mount package with 5 pins suitable for space-constrained circuit designs.

Maximum operating temperature rating of 150°C ensuring reliability under demanding thermal conditions. Provides positive polarity output with excellent line voltage regulation and high power supply rejection ratio (PSRR).

Designed for applications requiring stable 1A output current. Series TPS796xx family compliant and does not carry automotive standards. Dimensions: Length 6.5mm, Width 3.5mm, Height 1.6mm, facilitating easy PCB integration.

Suitable for industrial, electronics manufacturing, and power supply designs for embedded systems. Surface mounting enables automated assembly processes improving production efficiency. Explore a wide range of Voltage Regulators and power management ICs at EnvMart to meet your power electronics needs.
