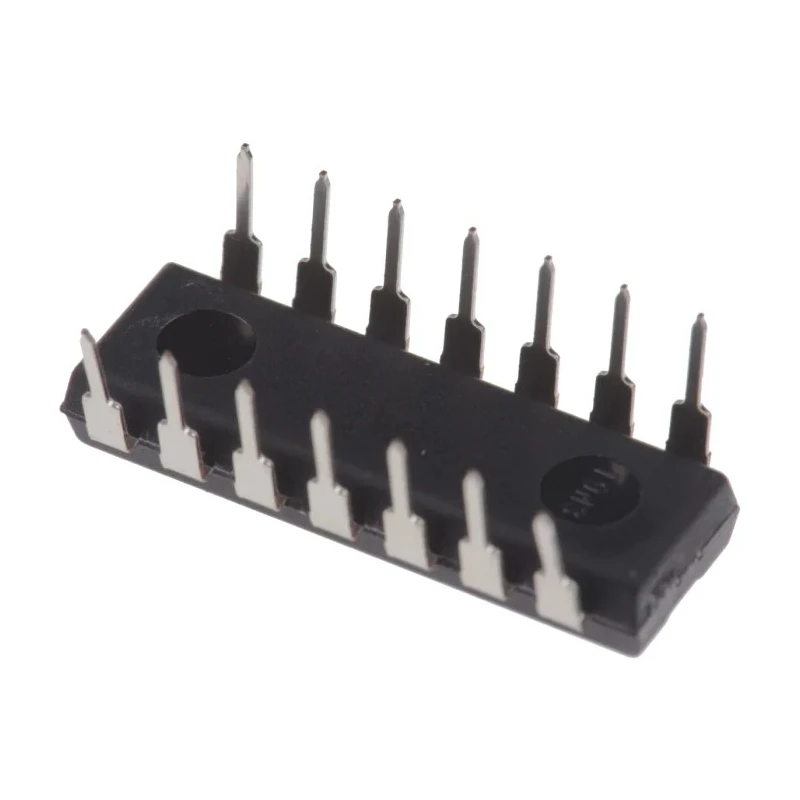

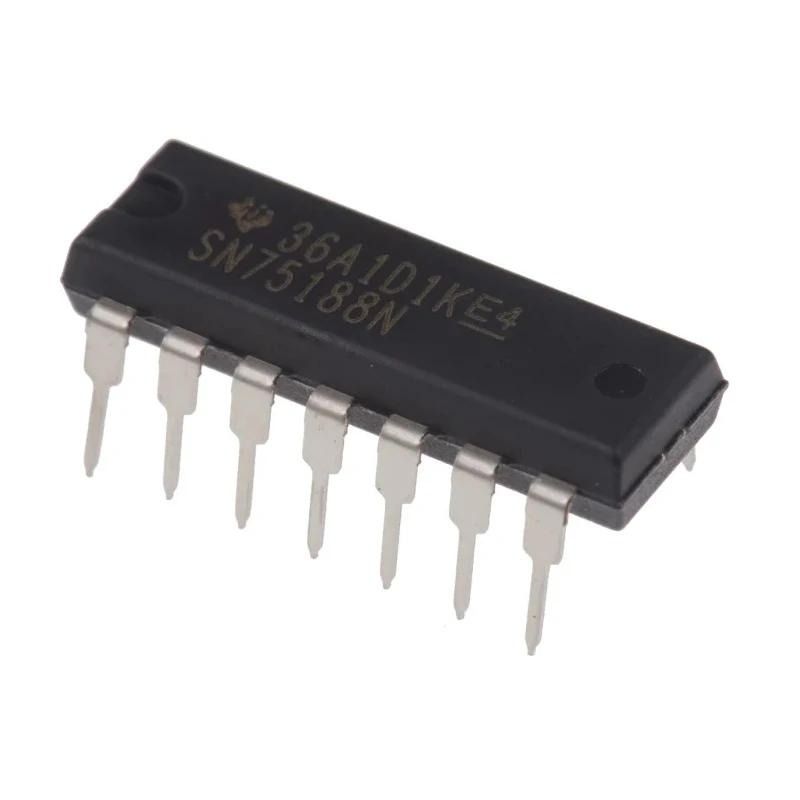

Texas Instruments 4-Channel Differential Non-Inverting Line Transmitter, 14-Pin PDIP SN75188N
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 5.08mm |
| Length | 19.69mm |
| Model | SN75188N |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Output type | Differential |
| Series | SN75188 |
| Input Type | Differential |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Polarity | Non-Inverting |
| IC Type | Line Driver |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Maximum Supply Voltage | 15V |
| Logic Family | SN75 |
| Logic Function | Line Driver |
| Minimum Supply Voltage | -15V |
| Maximum Propagation Delay Time @ CL | 350ns |
| Supply Current | 35mA |
| RS232 line driver,SN75188N DIL14Brand | Texas Instruments |
Key Features
- Operates with a supply voltage range of -15V to 15V.
- Features 4 independent differential channels for line transmission.
- Non-inverting polarity ensures signal integrity.
- Manufactured in a 14-pin PDIP through-hole package for easy mounting.
- Maximum propagation delay time of 350ns at capacitive load.
- Operating temperature range from 0°C to 70°C for reliability.
- Supply current is approximately 35mA, efficient for low power consumption.
- Complies with SN75 logic family standards, series SN75188.
Product Description
Texas Instruments SN75188N is a high-performance 4-Channel differential line transmitter designed for RS-232 line driver applications. Housed in a 14-pin PDIP package, it supports differential non-inverting outputs, ensuring robust signal transmission over communication lines.
The device operates over a supply voltage range of -15V to 15V, making it suitable for industrial and electronic component applications including power and connector systems. With a maximum propagation delay of 350ns at capacitive load conditions, it sustains high data transmission speeds with minimal signal distortion.
The transmitter features four independent channels, each capable of differential input and output, ideal for multiple line driving needs. Its non-inverting polarity and through-hole mount type simplify integration into existing PCB designs.
The operating temperature range of 0°C to 70°C allows reliable performance in typical commercial and industrial environments. The supply current rating of 35mA emphasizes its efficiency in power consumption.
This line driver is part of Texas Instruments' SN75 logic family, under the SN75188 series, ensuring compatibility and standardization across related components. Supply voltage range from -15V to 15V. Four differential input/output channels.
Non-inverting polarity for clear signal transmission. 14-pin PDIP package for through-hole mounting. Maximum propagation delay of 350 nanoseconds. Operating temperature range 0°C to 70°C. 35mA supply current consumption.
This product is suitable for use in industrial electronics, communication equipment, control systems, and other electronic component applications requiring reliable line transmission. Browse more semiconductor components and Line Interface ICs in the Electronics & Electricals category at EnvMart for advanced solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a supply voltage range of -15V to 15V.
It features four independent differential channels for line transmission.
The maximum propagation delay time is 350 nanoseconds at capacitive load conditions.
The operating temperature range is from 0°C to 70°C, suitable for commercial and industrial environments.
It is manufactured in a 14-pin PDIP (Dual In-line Package) for through-hole mounting.
The supply current is approximately 35mA, emphasizing its efficiency in power consumption.
This line driver has a non-inverting polarity, ensuring signal integrity during transmission.
The height is 5.08mm and the width is 6.6mm.
It supports differential input, allowing for robust signal transmission.
This model is part of the SN75 logic family, ensuring compatibility with related components.
It is suitable for industrial electronics, communication equipment, and control systems requiring reliable line transmission.
The length of this model is 19.69mm.
