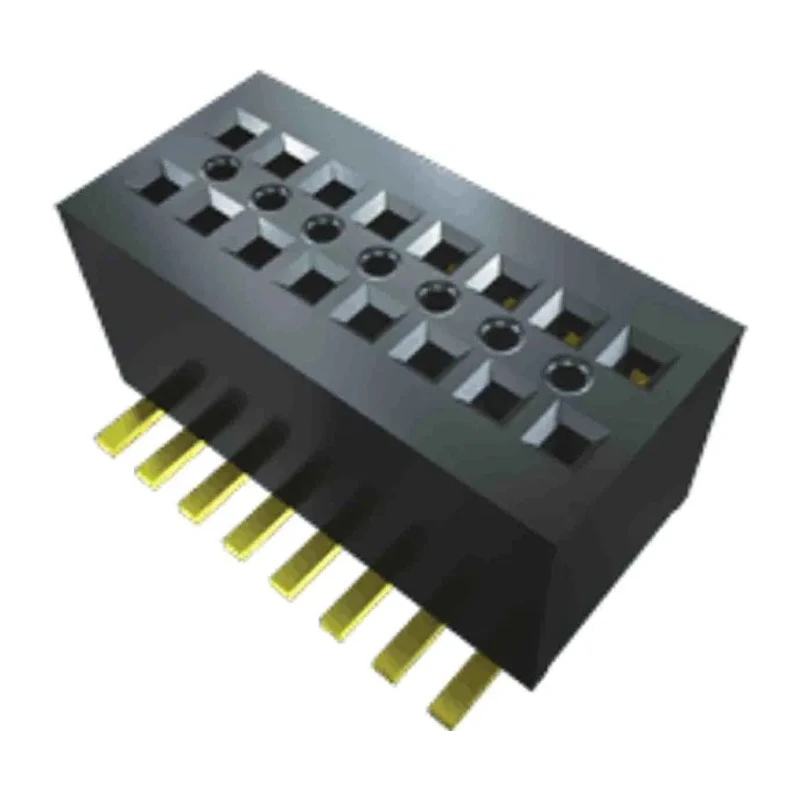

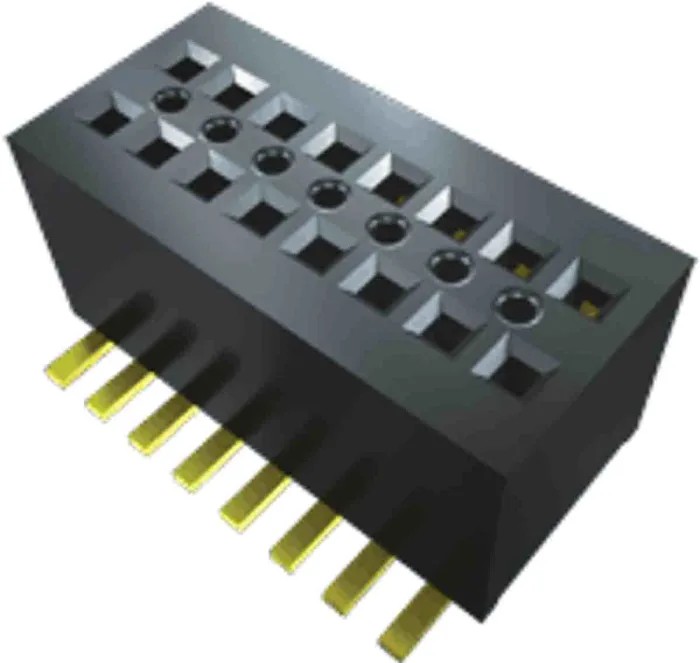

Samtec CLE Series Vertical Surface PCB Socket, 60-Contact, 2 Row, 0.8 mm Pitch Solder CLE-130-01-G-DV-A

The Samtec CLE-130-01-G-DV-A is a high-quality vertical surface PCB socket designed for board-to-board connections. This device is part of the CLE series, featuring 60 contacts arranged in 2 rows with a fine 0.8 mm pitch, providing a compact and efficient connector solution. The socket uses a cost-effective Tiger Beam contact system which ensures reliable electrical contact and durability for various applications.

The housing is made of black liquid crystal polymer, a material known for its excellent mechanical strength and thermal stability. The contacts are constructed from beryllium copper alloy, which is gold plated to maximize conductivity and corrosion resistance. It supports a current rating of 2.7A per pin, suitable for moderate power requirements in electronic assemblies.

This PCB socket is surface-mounted and designed for vertical orientation, facilitating easy integration into compact PCB layouts. It can operate reliably within a temperature range from -55°C to 125°C, making it versatile for industrial, electronic manufacturing, and laboratory applications.

The socket’s row pitch of 1.2 mm and contact pitch of 0.8 mm allow for precise and reliable connections in dense PCB designs. Its solder termination type provides a secure mechanical and electrical connection to the PCB board, enhancing the robustness of the assembly.

This product complies with RoHS directives, ensuring it is free from hazardous substances and suitable for environmentally conscious manufacturing practices. Overall, the Samtec CLE-130-01-G-DV-A PCB socket is an excellent choice for engineers requiring dependable board-to-board connectors in electronic systems.

The socket features a cost-effective Tiger Beam contact system. Constructed with a black liquid crystal polymer housing for durability. Contacts are made of beryllium copper alloy plated with gold for optimal conductivity.

Supports a current rating of 2.7A per pin for reliable performance. Designed for surface mount and vertical orientation on PCBs. Operates reliably from -55°C to 125°C temperature range. Ideal for pass-through applications requiring robust board-to-board connectors.

Conforms to RoHS standards ensuring environmental compliance. Row pitch measures 1.2 mm complementing the 0.8 mm contact pitch. Termination is via solder ensuring secure and stable mounting.

This vertical surface PCB socket is well suited for industrial, electronic manufacturing, laboratory, and commercial electronic assembly applications. Its robust materials and precise engineering make it a reliable connector component in a variety of electronic systems.
