Texas Instruments 16 bit Digital Signal Processor 40 MHz 64kB EEPROM, FLASH 100-Pin LQFP TMS320C2000

Texas Instruments TMS320C2000 is a 16 bit digital signal processor that operates at a maximum clock frequency of 40 MHz, designed for advanced signal processing tasks. With a Harvard architecture and C2xx DSP core, the processor combines high-performance capabilities with efficient instruction execution tailored for embedded control applications.

This DSP features 64kB of EEPROM and FLASH program memory alongside 5kB of RAM, supporting flexible storage and programming options. It operates at a supply voltage of 3.3 V and employs a fixed-point numeric and arithmetic format, optimizing performance in precision-demanding environments.

The device incorporates a 16-bit data bus width and includes multiple interface types such as CAN, SPI, and SCI to facilitate robust system integration and communication.

Equipped with one 10-bit ADC channel, sixteen PWM channels across two units, and four timers with 16-bit resolution, this DSP aids in fine-tuned signal modulation and timing control essential for industrial automation, motor control, and power electronics.

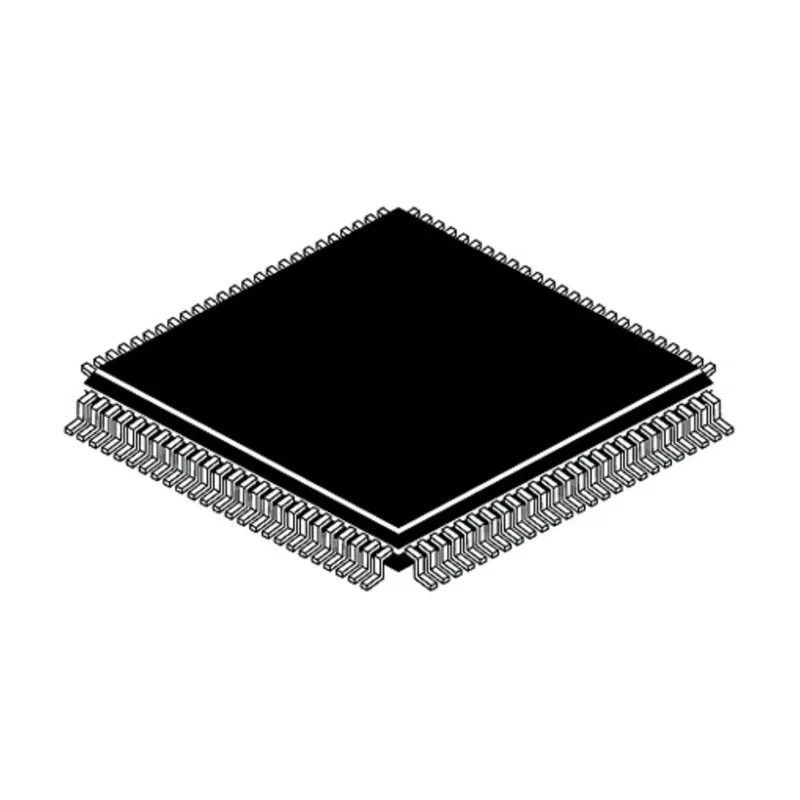

Housed in a 100-pin LQFP surface mount package with dimensions of 14 mm by 14 mm and a height of 1.4 mm, it is suitable for compact system designs requiring high pin counts.

Operating temperature tolerance from -40°C to 85°C ensures reliable performance across harsh industrial environments. Compliance with IEEE 1149.1 (JTAG) standards facilitates efficient device testing and diagnostics in manufacturing and development contexts.

Ideal applications include industrial automation, motor drives, power management systems, and embedded control units where high-speed digital signal processing is critical. Features a Harvard instruction set architecture for efficient processing.

Includes 64kB EEPROM and FLASH program memory for versatile programmability. Operates at a supply voltage of 3.3 V with fixed-point numeric format. Supports interfaces such as CAN, SPI, and SCI for robust communication. Provides 1 ADC with 10-bit resolution and 16 PWM channels for precise control.

Designed with a 100-pin LQFP surface mount package measuring 14 mm by 14 mm by 1.4 mm. Functional across a wide temperature range from -40°C to 85°C for industrial reliability. Includes 4 timers with 16-bit resolution enhancing timing precision.

Conforms to IEEE 1149.1 (JTAG) standard for testing and debugging. Explore more Texas Instruments Digital Signal Processors and semiconductor components on EnvMart to optimize your electronic systems and industrial applications.
