| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1mm |
| Length | 3.15mm |
| Model | NCP114ASN180T1G |
| Width | 1.65mm |
| Mount Type | Surface |
| Series | NCP114 |
| Maximum Operating Temperature | 150°C |
| Package Type | TSOP |
| Polarity | Positive |
| Maximum Input Voltage | 5.5V |
| Quiescent Current | 95μA |
| Minimum Input Voltage | 1.7V |
| Pin Count | 5 |

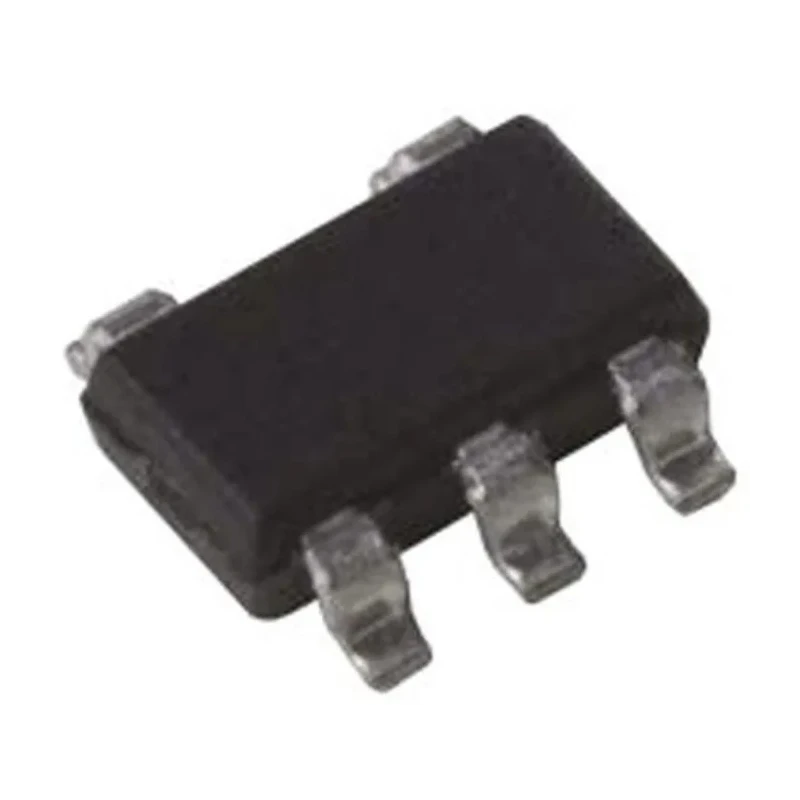

The onsemi NCP114ASN180T1G is a high-quality low dropout (LDO) linear voltage regulator designed for precision voltage regulation with a maximum input voltage of 5.5 volts. The device features a compact TSOP 5-pin surface mount package measuring 3.15mm in length, 1.65mm in width, and 1mm in height, making it suitable for compact PCB layouts in electronic components and power management circuits.
This voltage regulator supports positive polarity operation and provides a low quiescent current of 95μA, ensuring efficient power usage for battery-powered and portable devices. It can operate reliably over a wide temperature range, with a maximum operating temperature rated at 150°C, which suits industrial and commercial electronics requiring robust thermal performance.
The NCP114ASN180T1G offers excellent performance characteristics including fast transient response and high power supply rejection ratio (PSRR), reducing noise and ensuring stable voltage output even under varying input supply conditions. This makes it ideal for use in a broad range of applications including consumer electronics, embedded systems, and industrial equipment.
This product is part of onsemi's trusted range of power management ICs and supports surface mount technology (SMT) with its TSOP package type. The device does not carry specific automotive certifications, making it more oriented towards general electronics and industrial uses.
This voltage regulator supports a maximum input voltage of 5.5V. Features a low quiescent current of 95μA for energy-efficient operation. Positive polarity with a 5-pin TSOP package ideal for surface mounting. Compact dimensions: length 3.15mm, width 1.65mm, height 1mm.
Operates at temperatures up to 150°C for high-performance reliability. Suitable for applications requiring low noise and high power supply rejection ratio. Belongs to the NCP114 series of low dropout linear regulators. Provides stable voltage regulation in electronic circuits.
This voltage regulator is highly suited for industrial, laboratory, and electronic manufacturing sectors requiring compact, low noise voltage regulation components. For additional component downloads, users may access related technical documents, schematics, and 3D design models for PCB integration.
