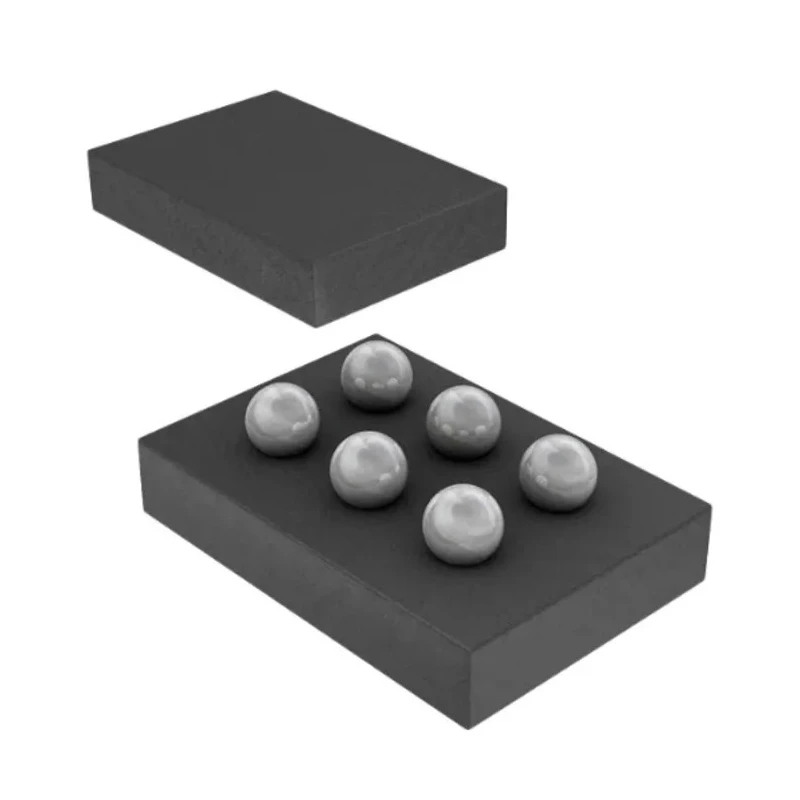

onsemi Voltage Regulator 5.5V WLCSP 6-Pin NCP59771AFCRCADJT2G

onsemi NCP59771AFCRCADJT2G is a 1 A voltage regulator designed for power management applications requiring low dropout and low noise output in a compact 6-pin WLCSP surface mount package. It operates with a maximum input voltage of 5.5 V and a minimum input voltage of -0.3 V, supporting precise and stable output voltage regulation with ±1% accuracy across a wide temperature range. The device features an NMOS pass transistor and a dedicated bias supply voltage (VBIAS) to optimize performance especially for battery-operated portable devices.

With an ultra-low dropout voltage of 50 mV at 1 A, and a very low quiescent input current of 500 mA, the NCP59771 offers efficient power usage suitable for space-constrained, noise-sensitive industrial, automotive, and consumer electronics designs. The ultra-low noise output enhances performance for audio, RF, and analog systems requiring minimal interference. It also includes a logic level enable input, simplifying ON/OFF control within embedded systems.

The WLCSP 6-pin package facilitates easy surface mounting on printed circuit boards, promoting compact and reliable product designs. It is RoHS compliant, aligning with environmental and regulatory requirements. The maximum operating temperature rating of 150°C lends itself to demanding industrial applications.

1 A VLDO regulator with NMOS pass transistor for accurate voltage output. ±1% accuracy over full temperature range for stable operation. Low quiescent current of 500 mA extending battery life in portable devices. Logic level enable input for flexible power management control.

Compact 6-pin WLCSP surface mount package suitable for space-saving designs. High maximum operating temperature up to 150°C for robust industrial use. Low dropout voltage of only 50 mV at 1 A output current. RoHS compliant for regulatory compliance and eco-friendliness.

This regulator is ideal for applications in industrial electronics, consumer devices, automotive power management, and portable instruments. Its optimized low noise and low dropout make it well suited for sensitive analog and RF circuits. Discover more Voltage Regulators and power management ICs from onsemi and explore advanced components for your electronic design needs at EnvMart.
