TDK Wirewound Surface Mount Inductor 10 μH ±20/±30 %, 1.26 A DC Current, Ferrite Core, Series VLCF VLCF4018T-100MR74-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 1.8mm |
| Length | 4.3mm |
| Model | VLCF4018T-100MR74-2 |
| Depth | 4mm |
| Packaging | Tape & Reel |
| Series | VLCF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS Directive |
| Package/Case | 4018 |
| Maximum DC Current | 1.26A |
| Maximum DC Resistance | 188mΩ |
| Inductance Tolerance | ±20/±30 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- Constructed with a ferrite core and wirewound design for efficient magnetic shielding.
- Compact 4018 package size with length 4.3 mm, height 1.8 mm, and depth 4 mm.
- Surface mount termination style suitable for automated PCB assembly.
- Designed to operate within a temperature range of -40°C to 105°C.
- Maximum DC resistance of 188 mΩ ensuring low power loss.
- RoHS compliant and molded for durability in electronic applications.
- Ideal for portable DC to DC converter line usage and various industrial electronics.
Product Description
TDK VLCF4018T-100MR74-2 Wirewound Surface Mount Inductor is a magnetically shielded component designed with a ferrite core and wirewound construction, providing stable inductance of 10 μH with a tolerance of ±20/±30 %.
This inductor supports a maximum DC current of 1.26 A, making it suitable for compact and efficient power devices.

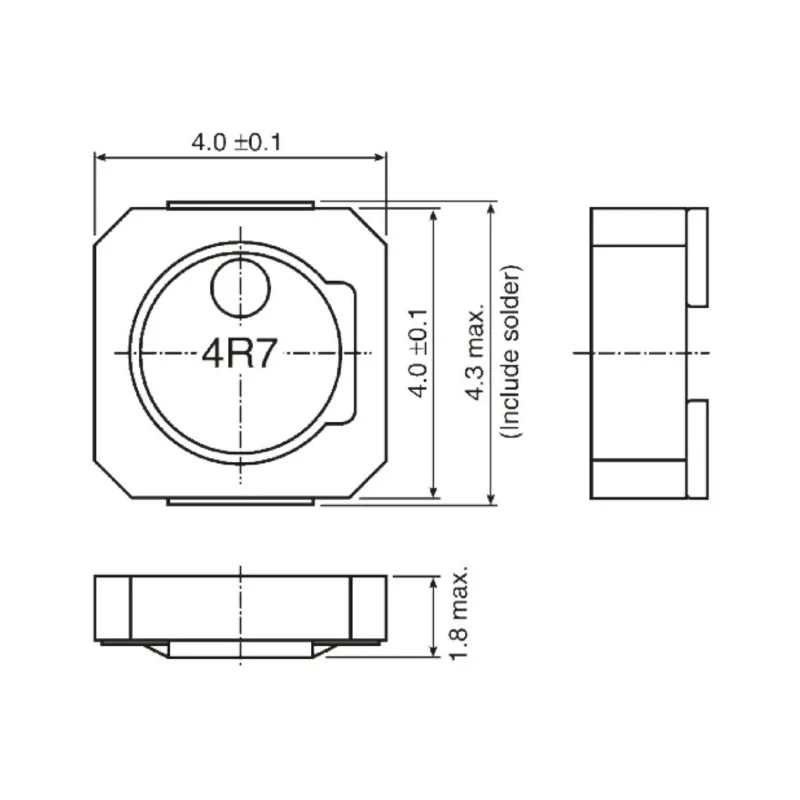

The component comes in a 4018 package case measuring 4.3 mm in length, 1.8 mm in height, and 4 mm in depth, with a surface mount termination style that facilitates automated assembly processes in electronics manufacturing.
Engineered to perform reliably from -40°C up to 105°C, it features a maximum DC resistance of 188 mΩ to minimize energy loss and heat generation. Certified under the RoHS directive and equipped with magnetic shielding, this inductor is molded for enhanced mechanical strength and protection against environmental factors.
It is mainly used in portable DC to DC converter lines and is suitable for industrial, manufacturing, electronics, and telecommunications applications requiring stable inductance and current handling capability in a compact footprint.
Ferrite core and wirewound construction ensuring high magnetic shielding effectiveness. Compact size optimized for surface mount technology (SMT) assembly. Reliable operation under extended temperature ranges and environmental conditions.
Compliance with RoHS for environmental safety. Low DC resistance that aids in energy efficiency. Suitable for a wide range of industrial electronics and power conversion applications. Molded for increased durability and longevity in harsh conditions.
Explore more high-quality inductors and electronic components in the Inductors category on EnvMart for your industrial and electronics manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 10 μH with a tolerance of ±20/±30 %.
It supports a maximum DC current of 1.26 A.
The dimensions are 4.3 mm in length, 1.8 mm in height, and 4 mm in depth.
This unit operates reliably within a temperature range of -40°C to 105°C.
The maximum DC resistance is 188 mΩ, which helps minimize power loss.
It is constructed with a ferrite core, which provides efficient magnetic shielding.
The termination style is surface mount, suitable for automated PCB assembly.
It is packaged in tape & reel format, which is common for surface mount components.
Yes, it is compliant with the RoHS directive for environmental safety.
It is mainly used in portable DC to DC converter lines and various industrial electronics applications.
This model belongs to the VLCF series of inductors.
It features a wirewound construction, enhancing its magnetic shielding effectiveness.
