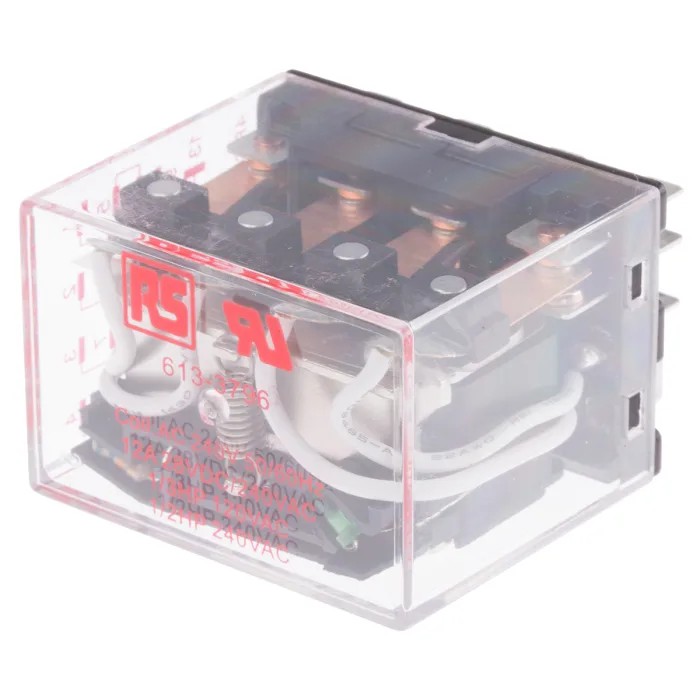

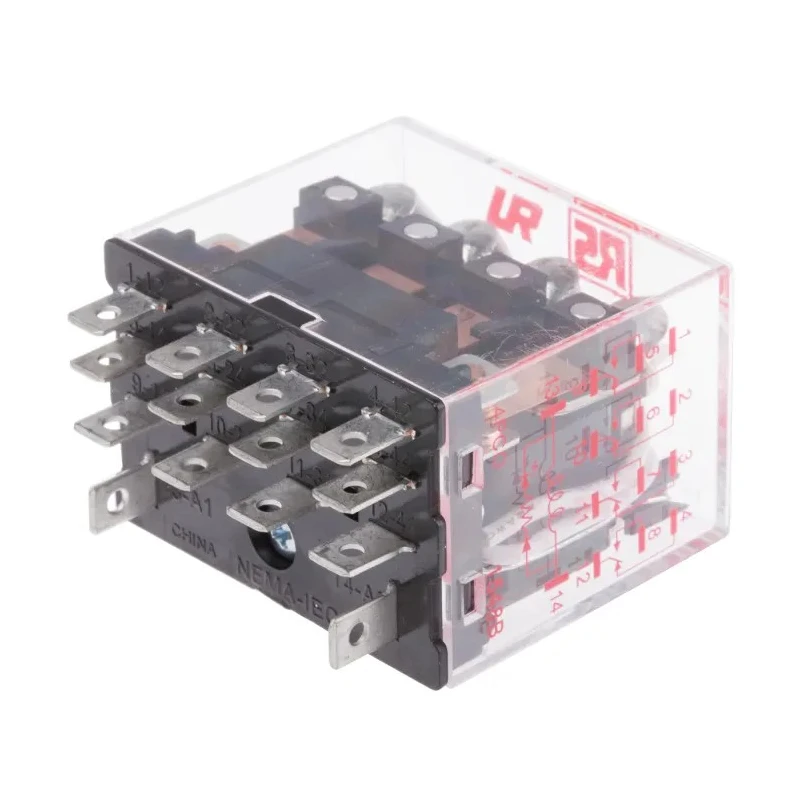

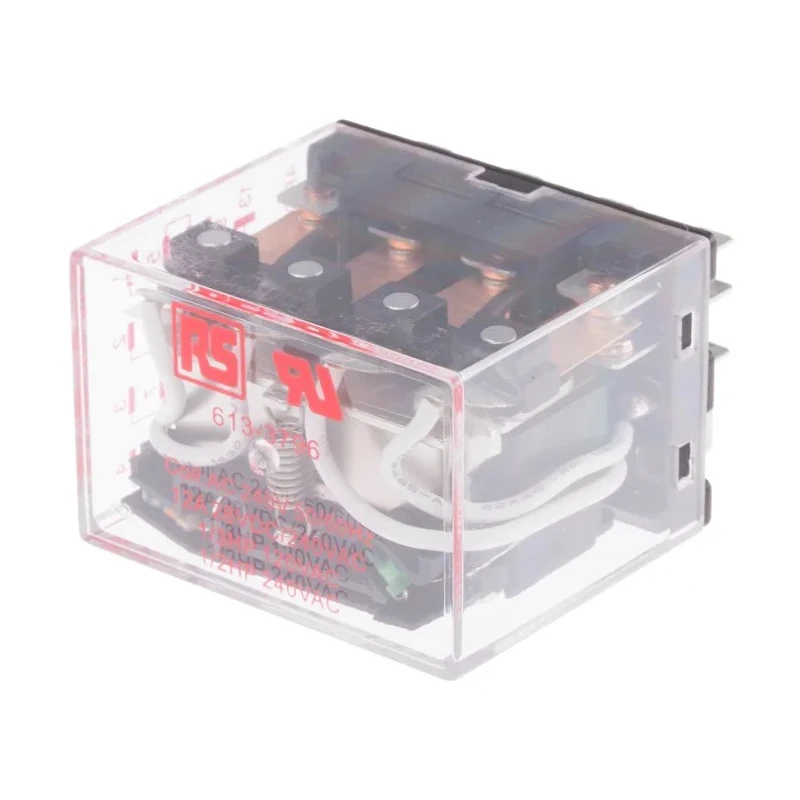

RS PRO Plug-in Power Relay 240V AC Coil 12A Switching Current 4PDT 613-3796
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Height | 35mm |
| Length | 40.8mm |
| Model | 613-3796 |
| Width | 27.4mm |
| Mount Type | Plug-in |
| Contact Material | Silver Alloy |
| Maximum Operating Temperature | 55°C |
| Contact Configuration | 4PDT |
| Minimum Operating Temperature | -45°C |
| Switching Current | 12A |
| Terminal type | PCB Pin |
| Contact Resistance | 50mΩ max |
| Standards/Approvals | RoHS |
| Mechanical Life | 10 million operations |
| Coil Resistance | 9.1kΩ |
| Coil Voltage | 240V ac |
| Switching DC Voltage | 28V dc |
| Switching AC Voltage | 240V ac |
| Coil Power | 2.5W |
| Electrical Life | 100000 operations |
| 4PCO LED indicator relay,10A 240Vac coilBrand | NEUTRAL |
Key Features
- The relay supports switching AC voltage up to 240V AC.
- It is designed with a silver alloy contact material for reliable electrical performance.
- Coil power consumption is 2.5W with coil resistance of 9.1kΩ.
- Operating temperature range is from -45°C to 55°C, suitable for industrial use.
- The relay mounting type is plug-in with PCB pin terminals.
- Mechanical life expectancy is 10 million operations and electrical life is 100,000 operations.
- The contact resistance max is 50mΩ, ensuring low signal loss.
- This product complies with RoHS standards and is manufactured in China.
Product Description
RS PRO 613-3796 is a plug-in power relay designed for industrial and automation applications requiring reliable switching of electrical circuits. Featuring a 240V AC coil voltage and a 12A switching current, the relay provides robust performance with a 4PDT contact configuration.
Constructed with silver alloy contact material, this power relay ensures excellent conductivity and durability in demanding environments. Its coil power consumption is low at 2.5W, and coil resistance measures 9.1kΩ for efficient operation.
Designed to operate over a temperature range from -45°C to 55°C, the relay is suitable for various industrial, electrical, and automation uses, including control panels, machinery, and HVAC systems.
The relay's plug-in mounting and PCB pin terminal types facilitate straightforward installation and replacement. With compact dimensions of 40.8 mm in length, 27.4 mm in width, and 35 mm in height, it fits well in limited space applications.
Mechanical life is rated at 10 million operations, and electrical life is 100,000 operations, reflecting high reliability and longevity for continuous industrial use. Contact resistance is a maximum of 50mΩ, ensuring minimal signal loss during switching.
The relay supports switching AC voltage up to 240V AC. It features a silver alloy contact material for durability. Coil power consumption is 2.5W with 9.1kΩ coil resistance. Operating temperature range is suitable for various environments.
Plug-in mount type with PCB pin terminals for easy installation. High mechanical and electrical life for industrial reliability. Low contact resistance ensures efficient electrical performance. Compliant with RoHS standards.
Manufactured in China. This RS PRO power relay is an ideal choice for automation, control, industrial machinery, and electrical applications requiring a reliable and durable plug-in relay solution. Explore more Power Relays and related components in the Electronics & Electricals category on EnvMart for your industrial and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum switching current for this power relay is 12A.
The coil voltage of this model is 240V AC.
This relay features a 4PDT contact configuration.
The operating temperature range is from -45°C to 55°C.
This model uses a plug-in mounting type with PCB pin terminals.
The coil power consumption is 2.5W.
The maximum contact resistance is 50mΩ.
The mechanical life expectancy is rated at 10 million operations.
The contacts are made from silver alloy material.
This product complies with RoHS standards.
The electrical life of this relay is rated at 100,000 operations.
The dimensions are 40.8 mm in length, 27.4 mm in width, and 35 mm in height.
