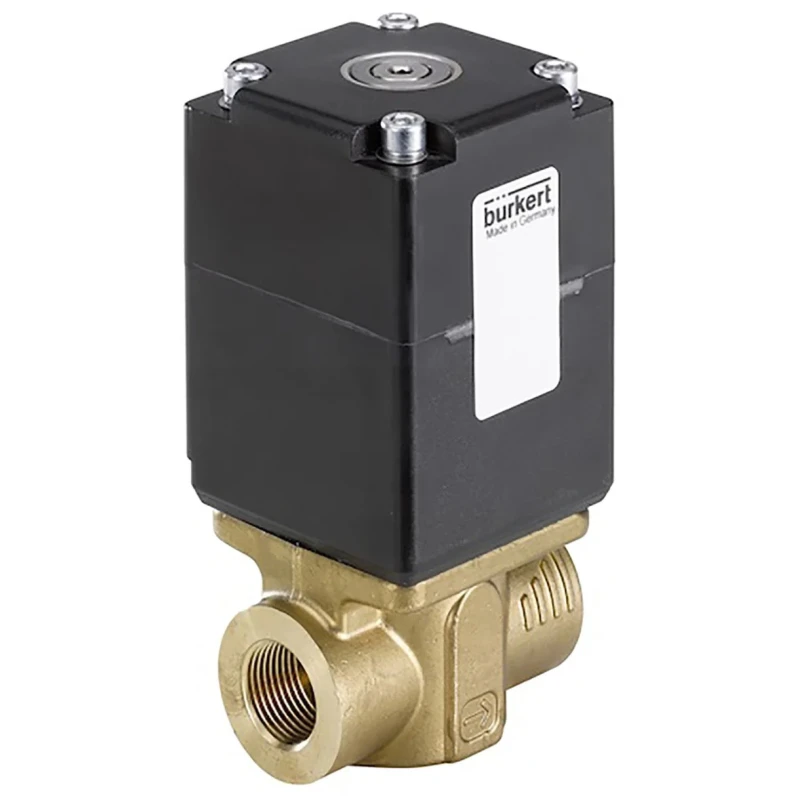

Burkert Proportional Solenoid Valve 2 Port NC, 24V dc, 9.53 mm Brass Body 239088

Burkert 239088 Proportional Solenoid Valve is a 2 port, normally closed (NC) valve designed for precise flow control in industrial fluid systems. Operating at 24V dc with a brass body, this valve features an orifice diameter of 4 mm and inlet/outlet sizes of 9.53 mm, suitable for liquids and neutral gases up to a maximum pressure of 8 bar. It uses PWM (pulse width modulation) for continuous flow adjustment from 0 to 100%, enabling highly accurate and smooth control.

The valve employs a globe valve operating principle with a frictionless valve plunger for excellent repeatability under 0.5% full scale and a fast response time of 25 ms. Its plunger actuator consumes 16 W power and supports a 900 Hz PWM frequency with continuous 100% duty cycle. The valve seat is elastomeric, providing reliable tight sealing performance.

Constructed with a brass body, the valve is built for durability and corrosion resistance, making it suitable for demanding industrial environments. The device is IP65 rated for protection against dust and water ingress, and it is certified to meet ATEX, UL 429, and IECEX standards, though it is not intended for hazardous area use.

Applications include industrial fluid power, process control, manufacturing automation, and HVAC systems that require precise proportional flow regulation. The valve integrates with control modules to coordinate valve opening with input signals, optimizing operational conditions efficiently.

Continuously adjustable flow control using PWM technology. Constructed with durable brass body material for reliability. Operates at a supply voltage of 24V dc with a 2 port configuration. Orifice diameter measures 4 mm supporting 8 bar maximum pressure.

Compact size with 9.53 mm inlet and outlet ports, both female gender. Fast response time of 25 ms ensures precise and timely control. Compliant with ATEX, UL 429, and IECEX standards for safety. Designed for liquids and neutral gases requiring high accuracy control.

IP65 rated protection against dust and water ingress. Ideal for industrial applications requiring smooth, proportional fluid flow regulation. Choose Burkert proportional Solenoid Valves for precise and reliable industrial fluid control. Explore more products in the Industrial Valves & Valve Fittings category at EnvMart.
