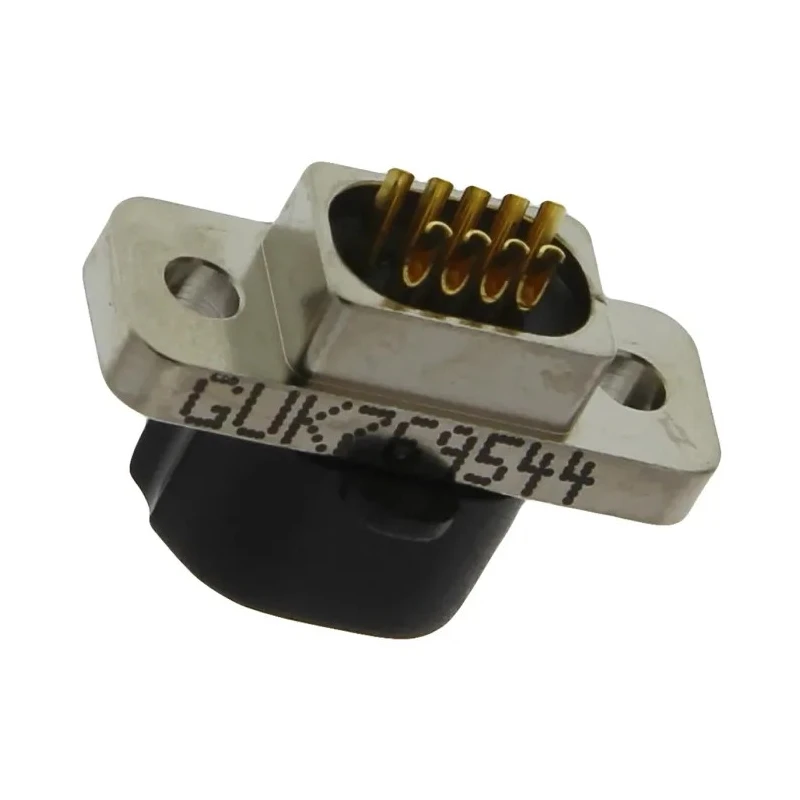

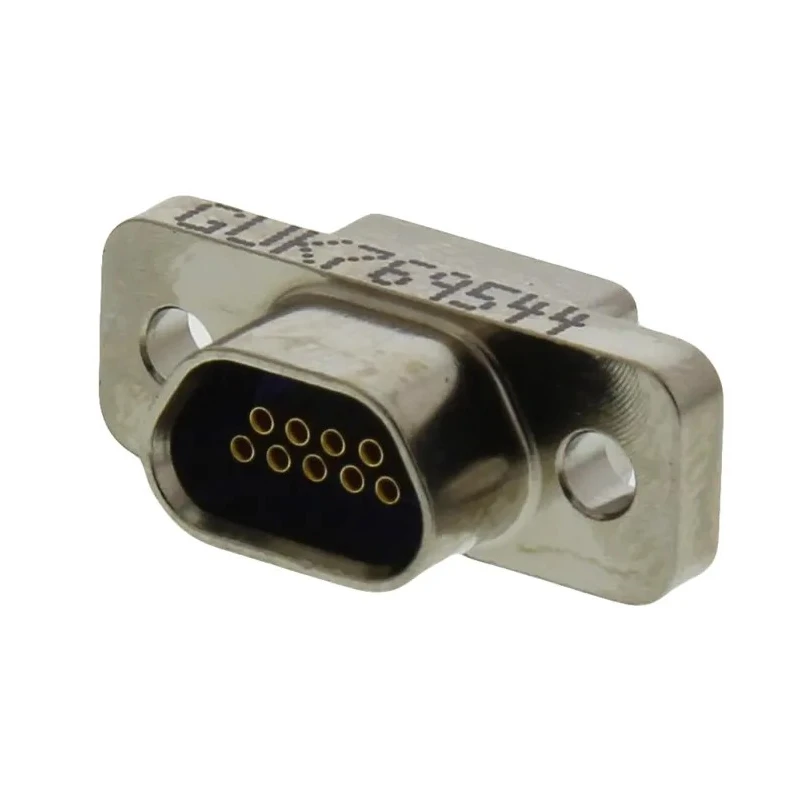

Glenair 9 Way Straight Panel Mount Micro-D Aluminium Housing D-Sub Connector Female MWDM2L-9SSB
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Glenair |
| Orientation | Straight |
| Current | 3A |
| Model | MWDM2L-9SSB |
| Mount Type | Panel Mount |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | MWDM |
| Termination Type | Solder |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 9 |
| Contact Gender | Female |
| Connector Gender | Female |
| Connector Type D | Micro-D |
| RS PRO 9 Way Straight Panel Mount D-Sub Connector FemaleBrand | RS PRO |
| Glenair M83513 9 Way Cable Mount D-sub Connector SocketBrand | Glenair |
Key Features
- The connector features 9 contacts with a current rating of 3A.
- It has a straight orientation and panel mount type for easy installation.
- The housing is made of aluminium offering robust mechanical protection.
- Operating temperature range is from -55°C to 150°C ensuring suitability for extreme conditions.
- Contacts are made of copper alloy with gold over nickel plating for superior electrical conductivity and corrosion resistance.
- Termination is by solder, compatible with 26 AWG or smaller cable wires.
- The connector is RoHS compliant and adheres to Mil-PRF-83513 and BS9523-F0002 standards.
- The Micro D connector system includes a high performance gold plated twist pin contact system with 0.050 inch pitch.
Product Description
Glenair MWDM2L-9SSB is a 9 Way Straight Panel Mount D-Sub Connector Female featuring a Micro-D design with a compact 0.05 inch contact pitch. It comes with an aluminium housing providing durable mechanical integrity and high resistance to harsh environmental conditions.
This connector supports a current rating of 3A and operates efficiently across a wide temperature range from -55°C to 150°C. The contact system utilizes a high performance gold plated twist pin design on copper alloy material plated over nickel to assure exceptional electrical conductivity and reliable connections under extreme vibration and environmental stress.
Termination is solder type, accommodating 26 AWG and smaller cables. The splayed solder cups facilitate easier user assembly. The connector shell offers a metal, unterminated robust design ensuring long-lasting durability in critical applications.
The MWDM2L-9SSB series complies with Mil-PRF-83513 and BS9523-F0002 standards and is RoHS compliant. It is engineered to serve demanding industrial, commercial, aerospace, military, telecommunications, and land and sea use cases requiring reliable electrical performance and mechanical robustness.
The connector features 9 contacts with a 3A current rating. Straight orientation with panel mount for robust installation. Aluminium housing provides mechanical protection. Contacts have gold over nickel plating for corrosion resistance and conductivity.
Termination by solder, fitting 26 AWG cable and smaller. Broad operating temperature from -55°C to 150°C. High performance Micro D connector with .050 inch contact pitch. Meets Mil-PRF-83513 and BS9523-F0002 specifications.
Suitable for industrial, aerospace, military, and telecom applications.
This connector is manufactured in the United Kingdom and backed by Glenair’s warranty. EnvMart offers a wide selection of high-quality D-Sub Connectors for critical electrical interface needs in industrial and commercial electronics.
