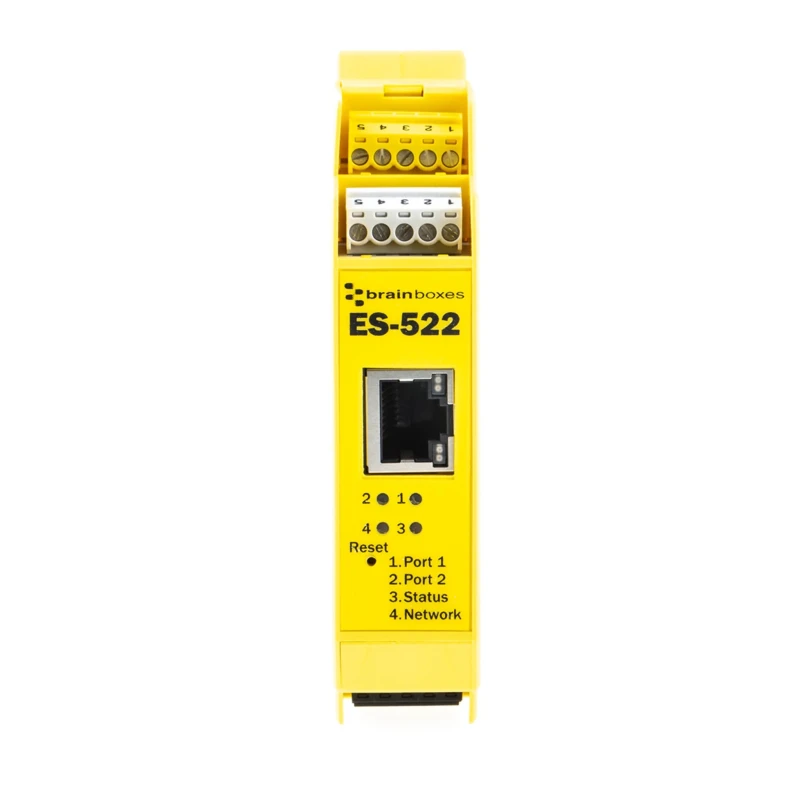

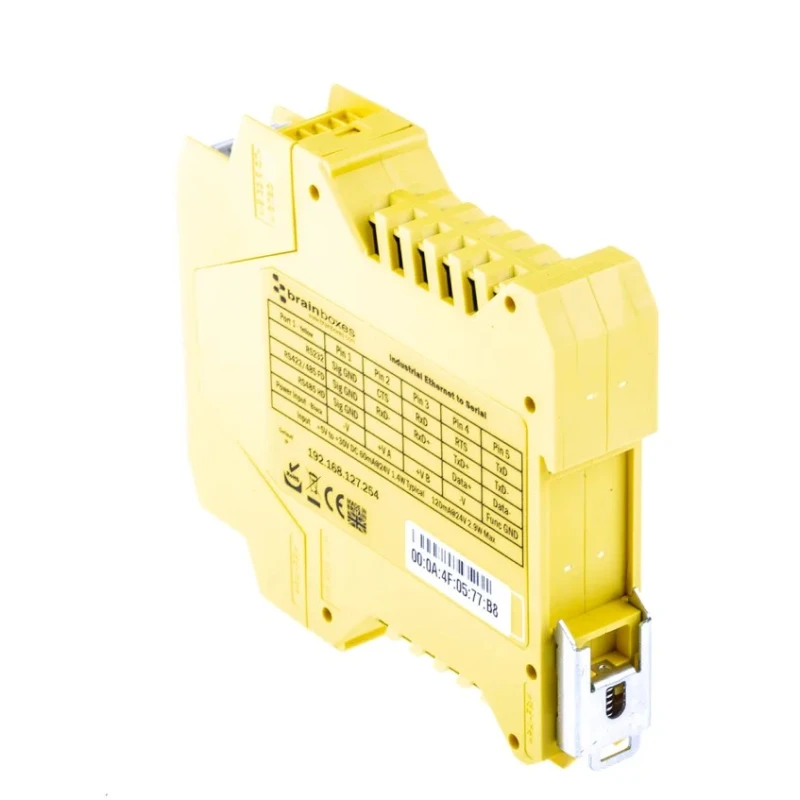

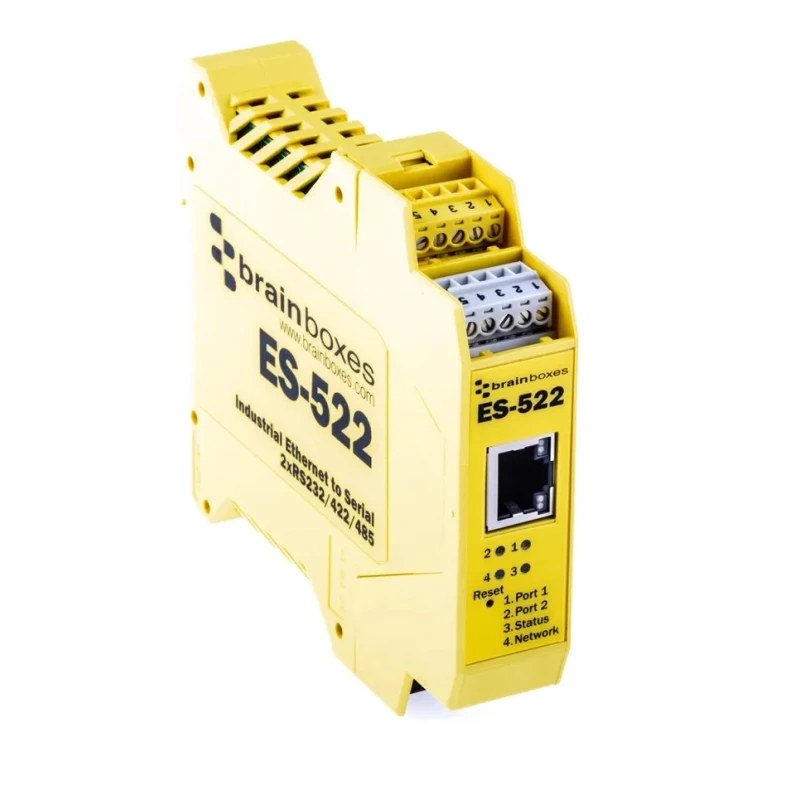

Brainboxes Serial Device Server 2 Port Ethernet to RS232/422/485, 5 to 30 V DC, 1 Mbps Baud Rate ES-522
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Brainboxes |
| Model | ES-522 |
| Operating System | Linux, Windows 8, Windows XP, Windows Server 2003, Android, iOS, Windows 7 |
| Number Of Ports | 2 |
| Maximum Operating Temperature | 80°C |
| Connection port | Removable Screw Terminal Block Connector 3.5 mm Pitch |
| Minimum Operating Temperature | 30°C |
| Interfaces | Ethernet port |
| Accessory Type | Server |
| Standards/Approvals | AEO (C-TPAT), EMC:CE, FCC, RoHS, WEEE, METL |
| Maximum Baud Rate | 1Mbps |
| Nominal Supply Voltage | 5 to 30 V dc |
| Standards/Approvals AEO (C-TPAT), EMC | CE, FCC, RoHS, WEEE, METL |
| Westermo Data AdapterBrand | Westermo Data Communications |
Key Features
- Provides two serial ports selectable as RS232, RS422/485 full duplex or RS422 half duplex.
- Features removable screw terminal block connectors with 3.5 mm pitch for secure wiring.
- Operates in wide temperature ranges from -30°C to 80°C, suitable for demanding environments.
- Supports Ethernet 10/100Base TX with automatic crossover detection for easy network connection.
- Includes integrated DIN rail mount, non-conducting polyamide enclosure, and LED status indicators.
- Offers web interface and RFC2217 compliance allowing remote serial port configuration and control.
- Redundant dual power input enhances reliability in industrial applications.
- Brainboxes auto gating technology ensures robust RS485 half-duplex flow control.
Product Description
Brainboxes ES-522 Serial Device Server is a high-performance Ethernet to serial converter intended for industrial and commercial networking applications. It features two serial ports software configurable as RS232, RS422/485 full duplex or RS422 half duplex, enabling flexible connectivity options for serial devices over IP networks.
This device operates with a broad nominal supply voltage range from 5 to 30 V DC and functions reliably in harsh conditions with operating temperatures spanning from -30°C to 80°C. The sturdy polyamide enclosure ensures electrical isolation and durability in demanding environments.
Equipped with 10/100Base TX Ethernet ports, the ES-522 supports both straight and crossover cables, simplifying installation. The removable screw terminal blocks with a 3.5 mm pitch provide secure and convenient wiring for serial interfaces. LED indicators clearly show device status for easier troubleshooting and management.
The ES-522 includes integrated DIN rail mounting capability and redundant dual power inputs to maintain continuous operation in industrial settings. Brainboxes state-of-the-art auto gating supports trouble-free RS485 half-duplex flow control, essential for reliable communication on industrial buses.
Two serial ports configurable as RS232, RS422/485 full or half duplex. Wide voltage input of 5 to 30 V DC ensuring versatile power compatibility. Operating temperature range from -30°C to 80°C suitable for industrial conditions.
10/100Base TX Ethernet interface with crossover cable auto-detection. DIN rail mount with polyamide enclosure for installation durability. Web interface and RFC2217 compliant for remote configuration and control. Redundant dual power inputs for high availability.
LED status indicators and removable screw terminal connectors.
This Serial Device Server is ideal for remote monitoring systems, factory automation, industrial control applications, and networking serial equipment in complex industrial, commercial, and laboratory environments. It provides a simple and effective solution for extending serial device connectivity over network infrastructures.
Explore more industrial networking solutions and reliable serial communication devices at EnvMart to enhance your connectivity infrastructure.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates with a nominal supply voltage range from 5 to 30 V DC.
This unit features two serial ports that can be configured as /485 full duplex or half duplex.
The operating temperature range for the ES-522 is from -30°C to 80°C.
Yes, it includes a web interface and is RFC2217 compliant, allowing for remote serial port configuration and control.
The ES-522 complies with AEO (C-TPAT), EMC: CE, FCC, RoHS, WEEE, and METL standards.
It is equipped with a 10/100Base TX Ethernet interface that supports automatic crossover detection.
This device includes integrated DIN rail mounting capability for installation.
It is suitable for demanding environments, including industrial and commercial networking applications.
It features Brainboxes auto gating technology to ensure robust half-duplex flow control.
