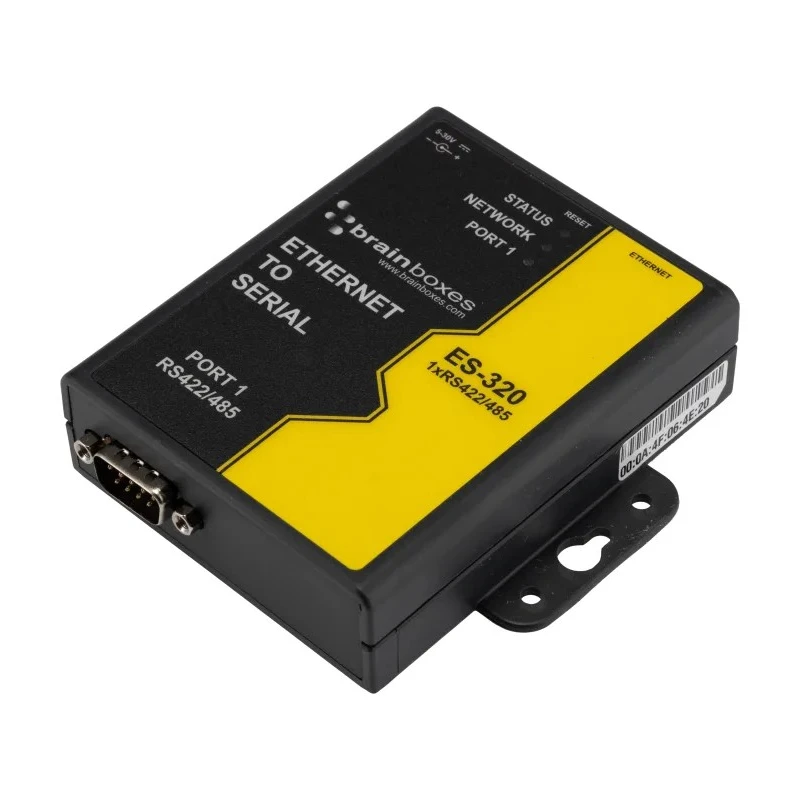

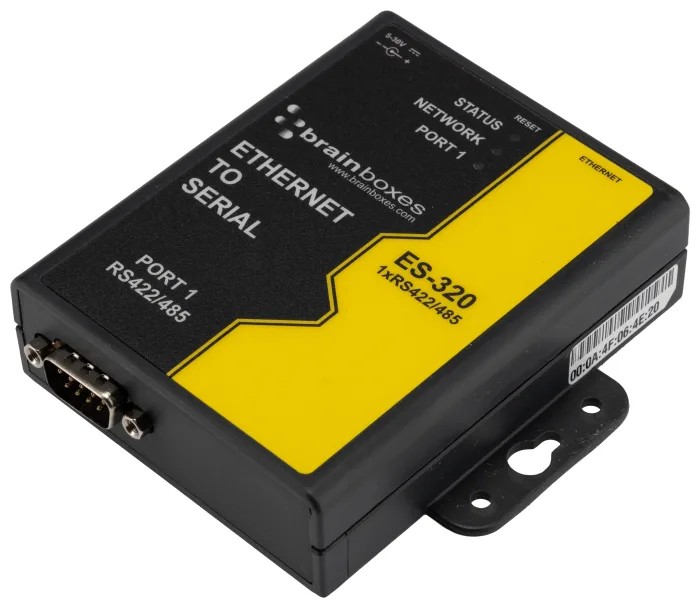

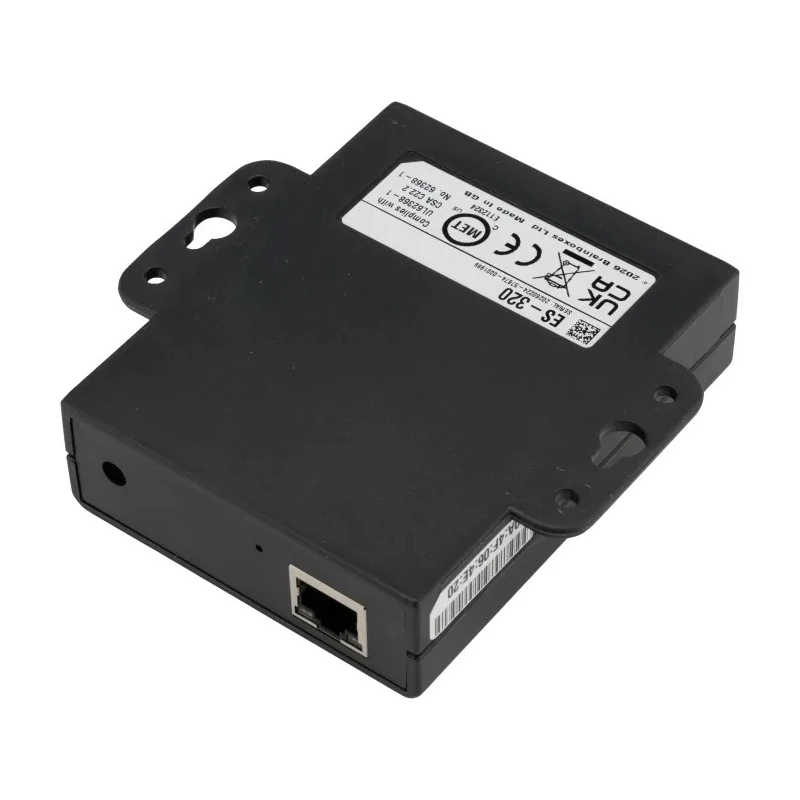

Brainboxes Adapter Serial Device Server 1 Port 1 Mbps Baud Rate ES-320
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Brainboxes |
| Model | ES-320 |
| Number Of Ports | 1 |
| Maximum Operating Temperature | 55°C |
| Connection port | DB9 Connector 9 Pin Male |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | AEO C-TPAT Microsoft Certified Gold Partner WEEE RoHS EMC:CE TAA |
| Maximum Baud Rate | 1Mbps |
| Nominal Supply Voltage | 5 to 30 V dc |
| Standards/Approvals AEO C-TPAT Microsoft Certified Gold Partner WEEE RoHS EMC | CE TAA |
| Planet Serial Device Server 2, 921 kbps Baud RateBrand | Planet |
| Brainboxes 1 Port PCIe Serial CardBrand | Brainboxes |
| Brainboxes Data Acquisition Cable Assembly for Use with FIFOS ReceiverBrand | Brainboxes |
Key Features
- The device supports a nominal supply voltage range from 5 to 30 V DC.
- It features a DB9 9-pin male connector for serial port connection.
- Operating temperature ranges between 0°C and 55°C ensuring stable performance.
- Compliant with standards including AEO, C-TPAT, Microsoft Gold Partner, WEEE, RoHS, EMC:CE, and TAA certifications.
- Supports Power over Ethernet (PoE) and offers a user-friendly web interface for network configuration.
- Designed for seamless serial port tunnelling, reducing cable limitations over any distance.
- No dedicated software is required to operate this device.
- Ideal applications include modems, POS systems, printers, and industrial equipment.
Product Description
Brainboxes ES-320 Adapter Serial Device Server is a versatile networking device enabling access to a single RS422/485 serial port with data transfer rates up to 1,000,000 baud. It operates over a nominal supply voltage range of 5 to 30 V DC and is engineered for industrial-grade environments with an operating temperature from 0°C to 55°C. The device includes a DB9 9-pin male connection port, offering compatibility with various serial devices.
Built to meet rigorous global standards such as AEO, C-TPAT, Microsoft Certified Gold Partner, WEEE, RoHS, EMC:CE, and TAA, the ES-320 assures compliance and reliability. It supports Power over Ethernet (PoE) per IEEE 802.3af standard, simplifying installation and power management.
This device features a web interface that facilitates secure configuration and control of serial ports over local networks or the internet using any standard browser. It enables serial port tunneling, effectively replacing serial cables over extended distances without added complexity. No additional software installation is required, facilitating quick deployment and reducing operational overhead.
Common industrial applications of the Brainboxes ES-320 Adapter include connection of modems, Point of Sale (POS) terminals, printers, and various industrial equipment, enhancing connectivity in manufacturing, commercial, and automation environments.
The package provides a robust solution for extending serial communications across network infrastructures, promoting seamless device integration. The device supports a nominal supply voltage range from 5 to 30 V DC. It features a DB9 9-pin male connector for serial port connection.
Operating temperature ranges between 0°C and 55°C ensuring stable performance. Compliant with standards including AEO, C-TPAT, Microsoft Gold Partner, WEEE, RoHS, EMC:CE, and TAA certifications. Supports Power over Ethernet (PoE) and offers a user-friendly web interface for network configuration.
Designed for seamless serial port tunnelling, reducing cable limitations over any distance. No dedicated software is required to operate this device. Ideal applications include modems, POS systems, printers, and industrial equipment.
Explore more networking and Serial Device Server products on EnvMart to find suitable solutions for your industrial and commercial communication needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates within a nominal supply voltage range of 5 to 30 V DC.
This unit features a DB9 9-pin male connector for serial port connection.
The operating temperature range for this model is between 0°C and 55°C.
Yes, it supports Power over Ethernet (PoE) per the IEEE 802.3af standard.
It complies with several standards, including AEO, C-TPAT, Microsoft Certified Gold Partner, WEEE, RoHS, EMC:CE, and TAA.
No, no dedicated software is required to operate this device.
The country of origin for this model is the United Kingdom.
This model has a single port for connection.
The web interface allows for secure configuration and control of serial ports over local networks or the internet using any standard browser.
The maximum operating temperature for this device is 55°C.
