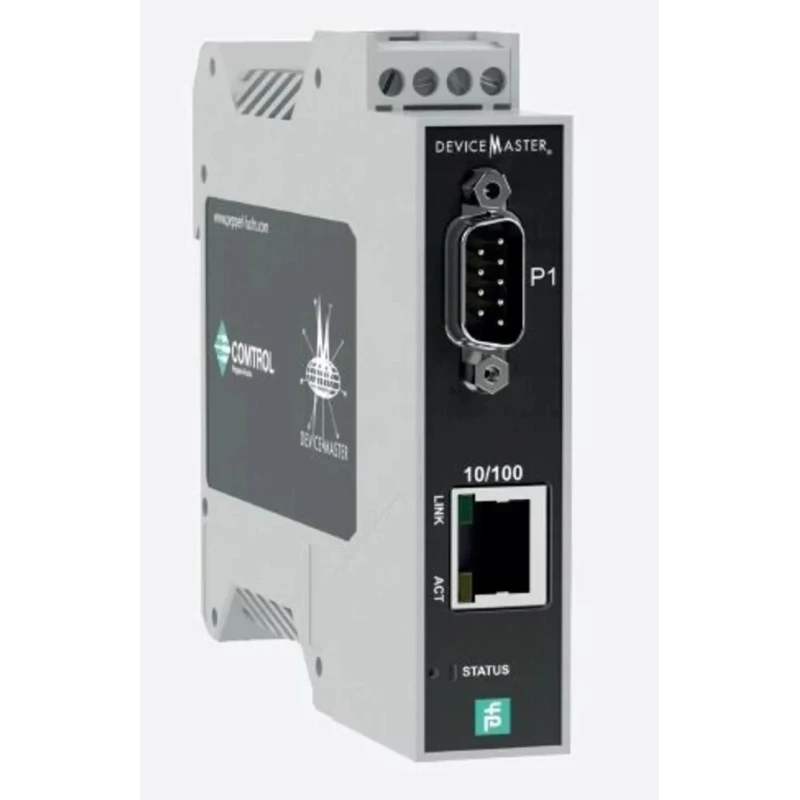

Pepperl + Fuchs Serial Device Server, 24 V Nominal Supply Voltage, 230 kbps Baud Rate ICDM-RX/TCP-DB9/RJ45-DIN

Pepperl + Fuchs ICDM-RX/TCP-DB9/RJ45-DIN serial device server operates at a nominal supply voltage of 24 V and supports data transfer rates up to 230 kbps baud rate. Designed for demanding industrial environments, it features multiple connection ports including RS485, RS422, RS232, and RJ45 that enable versatile serial-to-Ethernet communication.

The device includes a web-based configuration interface allowing full customization of parameters such as serial interface settings, baud rate, parity, data bits, stop bits, and flow control. Its compact design facilitates DIN-rail mounting and includes DB9 serial connectors, making installation straightforward in control panels and networking racks.

Constructed with a durable polyamide housing, this unit weighs approximately 113.4 grams, ensuring robust mechanical protection while maintaining a lightweight form factor. It supports a wide temperature range from -40°C to 75°C, suitable for indoor and outdoor industrial environments.

This Serial Device Server is certified to meet UL, RoHS, and CE standards, underscoring its compliance with international safety, environmental, and electromagnetic compatibility requirements. Compatible device drivers are available for Windows and Linux operating systems, enhancing its integration flexibility into existing systems.

Its 10/100 Mbps Ethernet data transfer capability and NEMA TS2 certification make it an ideal choice for serial device communication in industrial automation, manufacturing process control, automotive testing, and network infrastructure management applications. Designed to enhance connectivity between legacy serial devices and modern network architectures.

Supports multiple connection ports including RS485, RS422, RS232, and RJ45. Operates under Windows OS with web-based configuration. Nominal supply voltage of 24 V suitable for industrial use. Wide operating temperature range from -40°C to 75°C for harsh environments.

Compact DIN-rail mounting with DIN connector and DB9 interface. Compliant with UL, RoHS, and CE standards for safety and quality. Supports maximum baud rate of 230 kbps for fast data communication. Lightweight polyamide housing weighing approximately 113.4 grams.

Compatible with Windows and Linux device drivers. Ideal for industrial automation, networking, and communication applications. Explore the Pepperl + Fuchs range and other networking devices on EnvMart for advanced industrial connectivity solutions.
