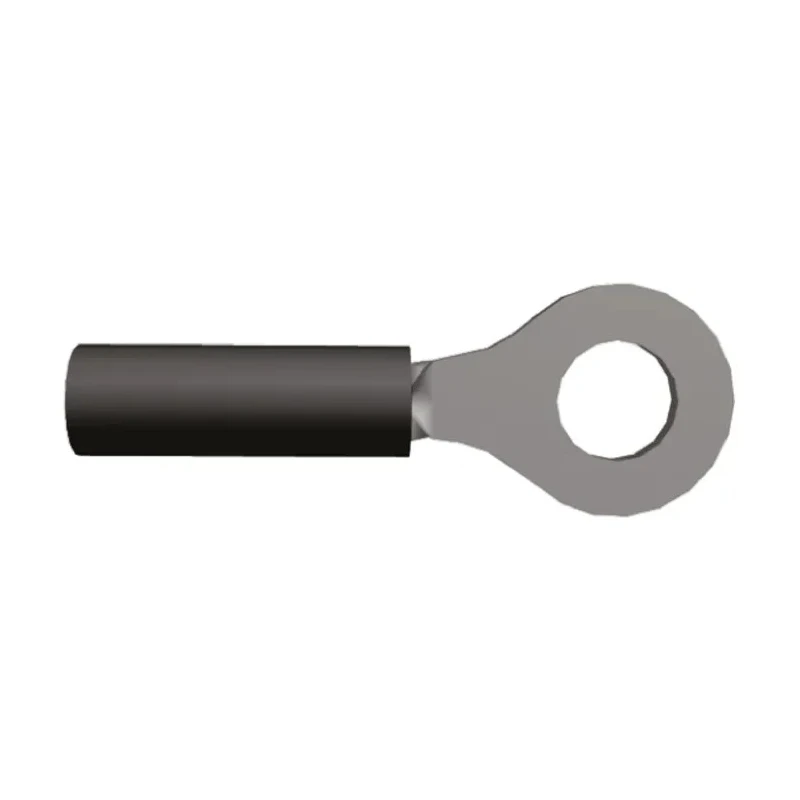

TE Connectivity PIDG Insulated Ring Terminal M3.5 Stud Size 24 AWG 22 AWG Wire Size Black 151439
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| THICKNESS | 0.79mm |
| Model | 151439 |
| Insulation | Insulated |
| Overall Length | 19.98mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 22AWG |
| Outer Ring Diameter | 7.14mm |
| Inner Ring Diameter | 3.68mm |
| Stud Size | M3.5 |
Key Features
- Constructed with high conductivity copper for excellent electrical performance.
- Features a nylon insulated sleeve for wire size identification and insulation protection.
- Serrated wire barrel ensures maximum contact and tensile strength after crimping.
- Funnelled wire entry prevents wire strand damage during insertion.
- Suitable for use in industrial, automotive, aerospace, and electrical wiring applications.
- Meets RoHS standards for environmental compliance.
- Maximum operating temperature is rated at 105°C for stable performance.
- Black color coded insulation to easily identify wire size compatibility.
Product Description
TE Connectivity 151439 PIDG insulated ring terminal offers a wire crimp solution with M3.5 stud size suitable for 24 AWG to 22 AWG wiring in high-demand electrical circuits. This ring terminal is designed to provide a uniform and reliable connection in industrial, laboratory, automotive, aerospace, and manufacturing settings where secure electrical connections are essential.
Constructed with a high conductivity copper body and copper sleeve around the wire barrel, the terminal ensures excellent electrical contact and improved insulation support. The serrations inside the barrel maximize contact and tensile strength after crimping. A funnelled wire entry allows for fast and safe wire insertion while preventing strand damage.
The terminal features a colour-coded nylon sleeve in black that not only aids in quick wire size identification but also provides robust insulation against environmental factors. Rated for a maximum operating temperature of 105°C, it sustains performance under elevated temperatures common in power supply and control systems.
Applications include panel boxes, instruments, lighting systems, motors, transportation equipment, lifting devices, and appliances, meeting stringent standards including RoHS compliance.
Constructed with high conductivity copper for optimal electrical conduction. Nylon insulated sleeve for enhanced wire protection and size identification. Serrations inside wire barrel increase contact integrity and mechanical strength.
Designed with funnelled entry to prevent strand damage during wire insertion. Rated for 105°C maximum operating temperature for reliable performance. Complies with RoHS environmental standards. Suitable for a wide range of industrial and commercial wiring applications.
This 151439 model PIDG insulated ring terminal by TE Connectivity provides a versatile and durable solution for electrical connections where quality and safety are imperative. Exploring more options within EnvMart Power Connectors and Ring Terminal categories can help find compatible components and accessories for various industrial needs.
