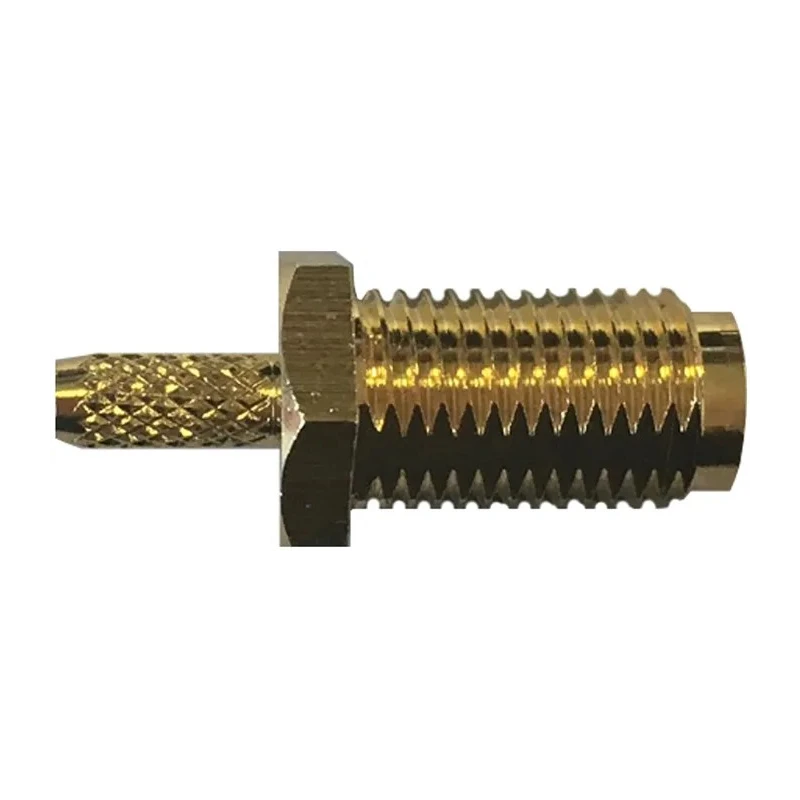

RF Solutions CON Series Panel Mount Female SMA Coaxial Connector, 50 Ω, Straight Body Crimp CON-SMAF-RG174
Specifications
| Country of Origin | China |
|---|---|
| Size | Standard |
| Brand | RF Solutions |
| Orientation | Straight |
| Model | CON-SMAF-RG174 |
| Mount Type | Panel Mount |
| Operating Frequency | 6GHz |
| Contact Material | Brass |
| Series | CON |
| Termination Type | Crimp |
| Maximum Operating Temperature | 155°C |
| Cable Type | RG174 |
| Minimum Operating Temperature | -55°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | SMA |
| Body Plating | Gold |
Key Features
- Panel mount type with a straight body design for easy installation.
- Features a female SMA connector with gold-plated brass contacts.
- Impedance rated at 50 ohms for high-frequency signal integrity.
- Supports operating frequencies up to 6 GHz suitable for RF applications.
- Termination by crimp method compatible with RG174 cable type.
- Body plated in gold for corrosion resistance and durability.
- Operates reliably within temperature range of -55°C to 155°C.
- Bulkhead mounting ensures secure panel attachment.
Product Description
RF Solutions CON-SMAF-RG174 is a high-quality panel mount female SMA coaxial connector designed for professional RF applications. It operates at an impedance of 50 Ω and supports frequencies up to 6 GHz, which makes it suitable for demanding electronic and telecommunications environments.
The connector features a straight body with crimp termination, designed specifically for RG174 cable type. The body and contact plating use gold to ensure optimal conductivity and corrosion resistance, critical for maintaining signal integrity and long-lasting performance.
This panel mount connector includes a bulkhead for secure mechanical mounting on equipment panels. The brass contact material along with gold plating provides robust electrical connections with normal polarity. It operates in a wide temperature range of -55°C to 155°C, allowing usage in harsh industrial and environmental conditions.
The CON Series by RF Solutions delivers reliable performance for RF coaxial connections in industrial, laboratory, manufacturing, telecommunications, and electronics sectors. This connector is ideal for applications such as RF test setups, antenna connections, signal transmission, and communication devices.
Panel mount with bulkhead for secure installation. Gold plated brass contacts for superior conductivity. Impedance of 50 Ω for RF signal accuracy. Supports operating frequency up to 6 GHz. Crimp termination compatible with RG174 cable type.
Wide operating temperature from -55°C to 155°C. Normal polarity for standard interconnects. Robust brass construction with corrosion resistant plating.
With its precision engineering and durable materials, the RF Solutions CON-SMAF-RG174 connector ensures reliable, high-performance connectivity essential in electronic component assemblies and communication systems.
Explore more Coaxial Connectors and accessories at EnvMart, your source for industrial electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports operating frequencies up to 6 GHz, making it suitable for RF applications.
This model is compatible with RG174 cable type and features crimp termination.
It has an impedance rating of 50 ohms, which is essential for maintaining signal integrity in RF applications.
The connector operates reliably within a temperature range of -55°C to 155°C.
It features brass contacts with gold plating for optimal conductivity and corrosion resistance.
This model uses a panel mount design with a bulkhead for secure installation on equipment panels.
The CON-SMAF-RG174 has a female contact gender, making it suitable for various interconnect applications.
It features a straight body orientation, facilitating easy installation.
This connector is part of the CON Series by RF Solutions, designed for professional RF applications.
It utilizes crimp termination, which is compatible with RG174 cable type.
The connector is manufactured in China.
The gold plating on the body and contacts ensures optimal conductivity and corrosion resistance, which is critical for maintaining signal integrity.
