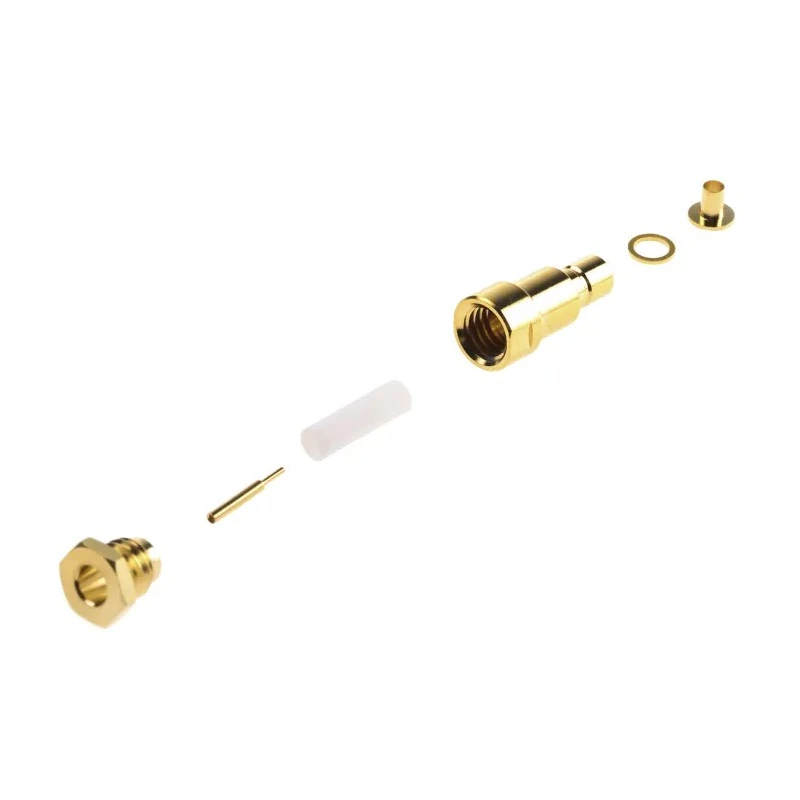

RS PRO Coaxial Connector Cable Male SMB 50 Ω Straight Body Clamp 546-3311

Name: RS PRO Coaxial Connector Cable Male SMB 50 Ω Straight Body Clamp 546-3311
Brand: RS PRO
SKU: 197088
Price: 13.47 USD
Availability: InStock



Category Coaxial Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Size	Subminiature
Brand	RS PRO
Orientation	Straight
Model	546-3311
Mount Type	Cable
Operating Frequency	4GHz
Contact Material	Brass
Series	RS PRO
Termination Type	Clamp
Maximum Operating Temperature	165°C
Cable Type	RG174A/U
Minimum Operating Temperature	-65°C
Polarity	Normal
Impedance	50Ω
Contact Plating	Gold
Contact Gender	Male
Connector Gender	Male
Coaxial Connector Type	SMB
Body Plating	Gold
Clamped SMB straight male jack-RG174A/UBrand	NEUTRAL
RS PRO Coaxial Connector Cable Female SMB, 50 Ω, Right Angle Body CrimpBrand	RS PRO

Key Features

Features a straight male clamp jack for secure connection.
Suitable for use with RG174A/U cable type.
Operates at a frequency up to 4 GHz for high-frequency applications.
Body and contact components plated in gold for corrosion resistance and optimal conductivity.
Constructed with brass contact material to ensure durability and performance.
Clamp termination type enables quick and reliable assembly.
Functions reliably in temperatures ranging from -65°C to 165°C.
Impedance rating of 50 Ω compatible with standard coaxial systems.

Product Description

RS PRO 546-3311 Coaxial Connector Cable Male SMB 50 Ω straight body clamp is engineered for robust and efficient RF signal transmission. This straight male clamp jack connectors are part of the RS PRO series and are specifically designed for use with RG174A/U cables, ensuring a secure and reliable connection in coaxial systems.

The connector features a gold-plated body and contacts that provide excellent resistance to corrosion and superior electrical conductivity, essential for maintaining signal integrity in sensitive electronic and communication equipment. The brass contact material further enhances its durability under continuous use.

Rated for operation up to 4 GHz, this connector suits high-frequency applications like RF communications, laboratory testing, and signal processing equipment. Its clamp termination type allows quick assembly without sacrificing connection stability, making it ideal for industrial, telecommunications, and manufacturing use cases.

The connector supports a standard impedance of 50 Ω and maintains normal polarity with male contact gender. It withstands extreme operating temperatures from -65°C to 165°C, ensuring reliability in demanding environments such as outdoor installations and industrial facilities.

The product is manufactured in Taiwan, Province Of China, adhering to international quality benchmarks. The RS PRO 546-3311 connector is a trusted choice for professionals requiring dependable, high-performance coaxial connection solutions.

Features a straight male clamp jack for secure connection. Suitable for use with RG174A/U cable type. Operates at a frequency up to 4 GHz for high-frequency applications. Body and contact components plated in gold for corrosion resistance and optimal conductivity.

Constructed with brass contact material to ensure durability and performance. Clamp termination type enables quick and reliable assembly. Functions reliably in temperatures ranging from -65°C to 165°C. Impedance rating of 50 Ω compatible with standard coaxial systems.

Polarity is normal, matching standard male connector configurations. Manufactured in Taiwan, Province Of China, ensuring quality standards. Explore the extensive range of RS PRO connectivity solutions at EnvMart and find compatible accessories, testing equipment, and cables for your application needs.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

This model operates at a maximum frequency of 4 GHz, making it suitable for high-frequency applications.

It is specifically designed for use with RG174A/U cable types, ensuring a secure connection.

The connector has an impedance rating of 50 Ω, which is compatible with standard coaxial systems.

The connector features brass for the contact material and is plated with gold for both the body and contacts to enhance conductivity and corrosion resistance.

This unit functions reliably in temperatures ranging from -65°C to 165°C, suitable for demanding environments.

The clamp termination type enables quick and reliable assembly, ensuring a stable connection without complex tools.

This connector features a male contact gender, which is standard for its type.

It is manufactured in Taiwan, Province Of China, adhering to international quality standards.

It is suitable for RF communications, laboratory testing, and signal processing equipment due to its high-frequency capabilities.

The connector has a straight orientation, designed for easy installation in various setups.

This model is classified as subminiature, making it compact and suitable for tight spaces.

The gold plating on the body and contacts provides excellent corrosion resistance and optimal electrical conductivity, which is essential for maintaining signal integrity.
