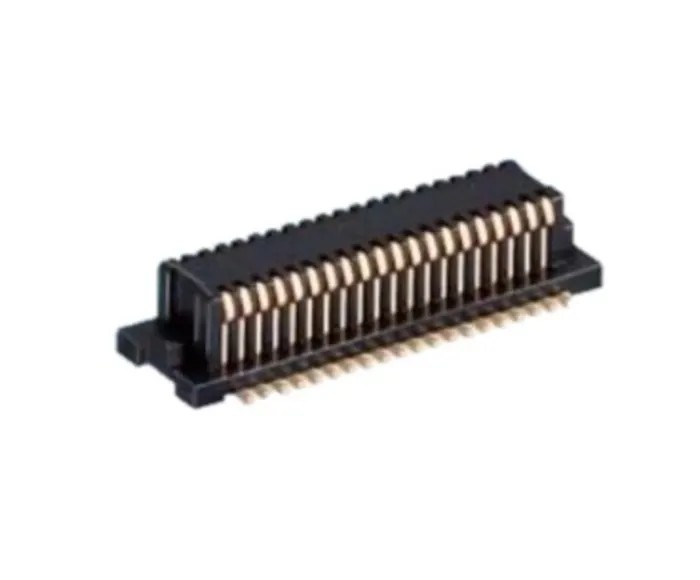

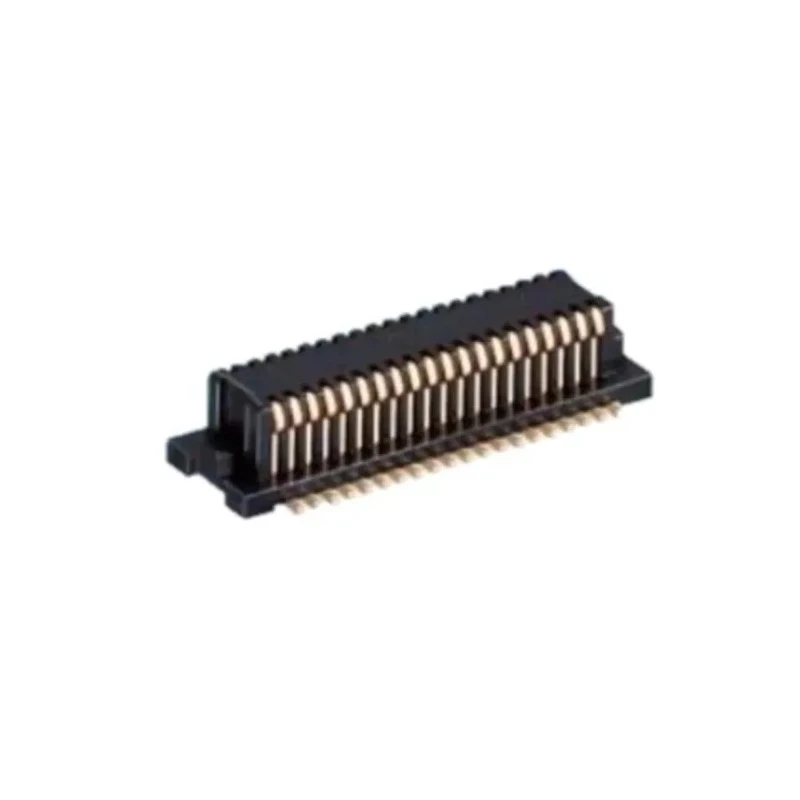

Hirose DF12 Series Straight Surface PCB Header 30 Contacts 0.5 mm Pitch 2 Row Shrouded
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V |
| Brand | Hirose |
| Orientation | Straight |
| Current | 300mA |
| Model | DF12 |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Copper Alloy |
| Series | DF12 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -45°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 30 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board |
Key Features
- Supports a maximum current of 300mA for reliable signal transmission.
- Constructed with a polyamide housing offering UL94V-0 flammability rating.
- Gold plated copper alloy contacts provide excellent conductivity and corrosion resistance.
- Shrouded design protects contacts and ensures secure mating.
- Operates reliably from -45°C to 125°C in demanding environments.
- Designed for board-to-board connection with surface mount termination.
- Compatible with soldering processes for SMT assembly.
- Ideal for ultra-miniature applications requiring compact, high-density connectors.
Product Description
Hirose DF12(5.0)-30DP-0.5V(86) PCB Header is a high-precision surface mount connector featuring 30 male contacts arranged in two rows with a 0.5 mm pitch. Designed for board-to-board applications, this connector series provides reliable electrical performance for low current circuits up to 300mA and voltage rating of 50V. Its polyamide housing meets UL94V-0 standards for flame resistance, while gold plated copper alloy contacts ensure superior corrosion resistance and conductivity.
This shrouded connector protects the contacts against damage and contamination, ensuring secure and stable mating in industrial, electronic manufacturing, and communication equipment environments. Operating temperature ranges from -45°C to 125°C, making it suitable for a wide variety of electronic assembly applications requiring compact and robust connectors.
The DF12 series supports different stacking heights with this particular model offering a 5.0 mm stacking height. The termination type is solder, compatible with standard SMT assembly lines, enabling high production efficiency.
Supports a maximum current of 300mA for reliable signal transmission. Constructed with a polyamide housing offering UL94V-0 flammability rating. Gold plated copper alloy contacts provide excellent conductivity and corrosion resistance.
Shrouded design protects contacts and ensures secure mating. Operates reliably from -45°C to 125°C in demanding environments. Designed for board-to-board connection with surface mount termination. Compatible with soldering processes for SMT assembly.
Ideal for ultra-miniature applications requiring compact, high-density connectors.
This product is ideal for use in electronic, industrial, manufacturing, and communications sectors where reliable miniature connectors are paramount. Explore Hirose connectors and PCB Headers at EnvMart for high-quality interconnection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this PCB header is 300mA, ensuring reliable signal transmission.
This connector has a voltage rating of 50V, suitable for low current circuits.
The housing is constructed from polyamide, which meets UL94V-0 standards for flame resistance.
This model features 30 male contacts arranged in two rows with a 0.5 mm pitch.
It operates reliably within a temperature range of -45°C to 125°C, making it suitable for demanding environments.
The termination type is solder, making it compatible with standard SMT assembly processes.
Yes, this connector is specifically designed for board-to-board connection with surface mount termination.
The contacts are made of gold plated copper alloy, providing excellent conductivity and corrosion resistance.
The shrouded design protects the contacts from damage and contamination, ensuring secure mating.
This model is ideal for use in electronic, industrial, manufacturing, and communications sectors where reliable miniature connectors are essential.
The country of origin for this PCB header is India.
This particular model offers a stacking height of 5.0 mm, accommodating different stacking requirements.
