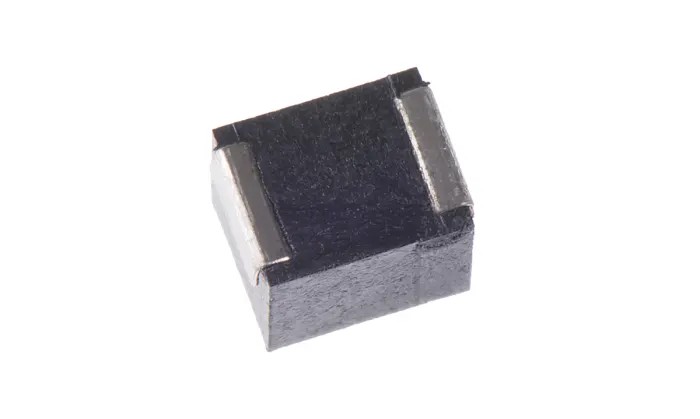

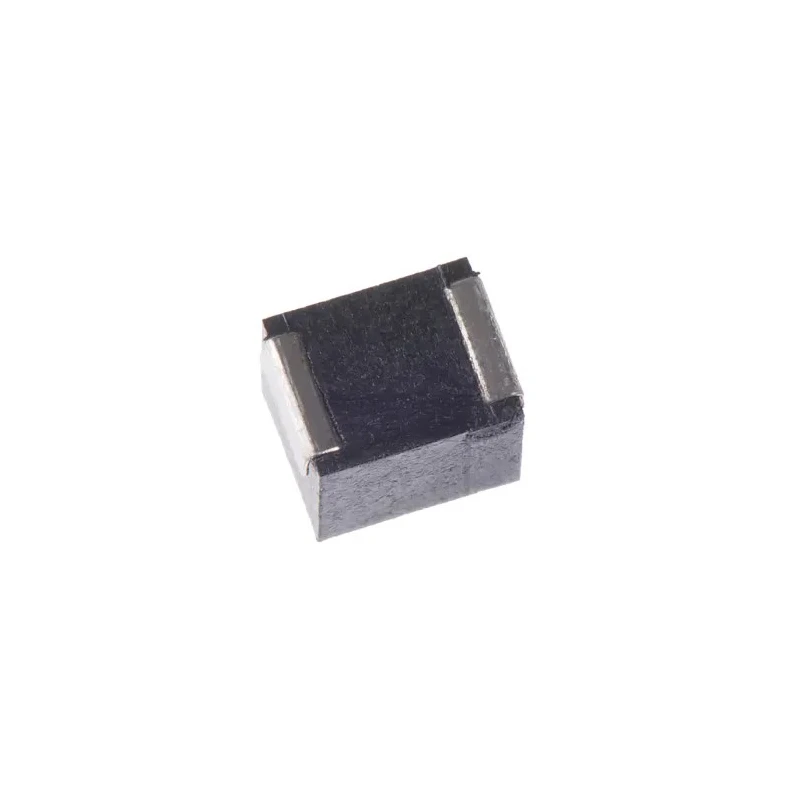

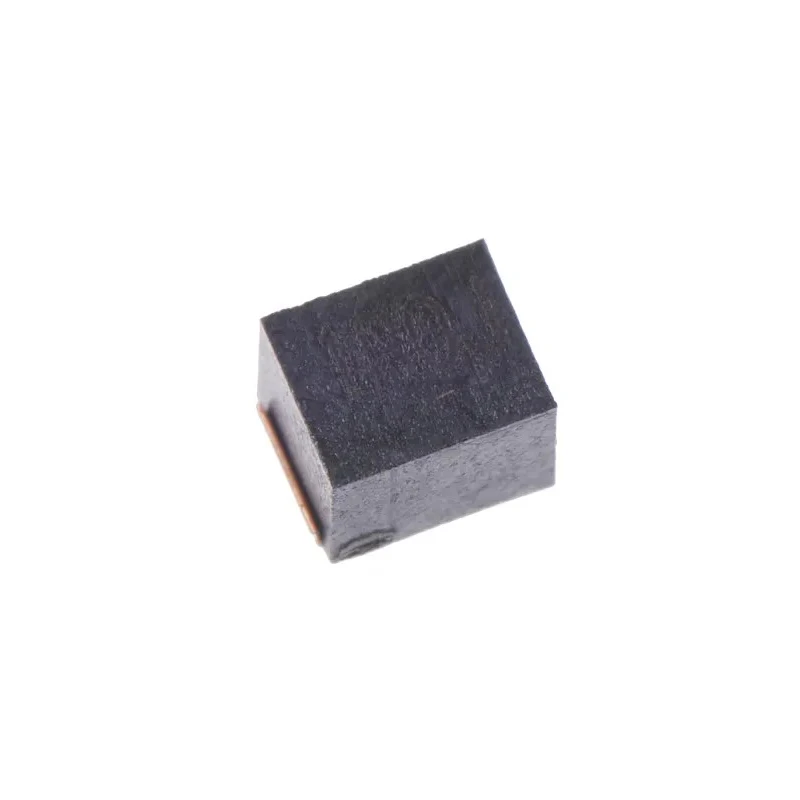

TDK 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 1 μH ±5% 400 mA Idc Q:30 NLV32T-1R0J-PF
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | TDK |
| Height | 2.2mm |
| Length | 3.2mm |
| Model | NLV32T-1R0J-PF |
| Depth | 2.5mm |
| Series | NLV-PF |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 1μH |
| Standards/Approvals | RoHS |
| Package/Case | 1210 |
| Maximum DC Current | 400mA |
| Maximum DC Resistance | 700mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 120MHz |
| Minimum Quality Factor | 30 |
| Inductor Construction | Wirewound |
| Applications include | TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, HDDs, etc |
Key Features
- Features a ferrite core for effective magnetic shielding.
- High quality factor of 30 ensures sharp frequency response.
- Compact 1210 package size with dimensions 3.2mm x 2.2mm x 2.5mm.
- Suitable for operating temperatures from -40°C to 105°C.
- Wirewound construction enhances performance and reliability.
- Surface mount termination style for efficient PCB assembly.
- Moulded thermoplastic exterior for heat resistance.
- Applications include TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, and HDDs.
Product Description
TDK NLV32T-1R0J-PF is a 1210 shielded wirewound surface mount inductor featuring a ferrite core, delivering an inductance of 1 μH with ±5% tolerance and capable of handling a maximum DC current of 400 mA. It incorporates high Q factor construction (Q=30) to provide sharp frequency response and excellent performance in demanding electronic applications.
The inductor features a compact 1210 package with dimensions of 3.2 mm in length, 2.2 mm in height, and 2.5 mm in depth. It is designed with a wirewound construction and a moulded thermoplastic resin exterior that ensures high heat resistance and durability across an operating temperature range from -40°C to +105°C.
This surface mount inductor is shielded, reducing electromagnetic interference and enhancing signal integrity, making it ideal for use in sensitive electronics. The termination style is surface mount, allowing seamless integration into PCB assembly processes.
Typical applications for the TDK NLV32T-1R0J-PF inductor include consumer electronics such as televisions, VCRs, digital cameras, broadband devices like xDSL, automotive audio systems, electronic control units (ECU), and hard disk drives (HDDs). Its robust design ensures performance stability and longevity in these environments.
The product complies with RoHS standards, ensuring it meets environmental safety requirements. Features a ferrite core for effective magnetic shielding. High quality factor of 30 ensures sharp frequency response. Compact 1210 package size for space-saving circuit designs.
Wide operating temperature range from -40°C to +105°C. Wirewound construction for stable inductance and performance. Surface mount termination style suitable for automated PCB assembly. Moulded heat-resistant thermoplastic resin exterior.
RoHS compliant for environmentally safe manufacturing. Applications span consumer electronics, automotive systems, and data storage devices. Explore the full range of Surface Mount Inductors on EnvMart for diverse industrial, electronic, and manufacturing applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 1 μH with a tolerance of ±5%.
It can handle a maximum DC current of 400 mA.

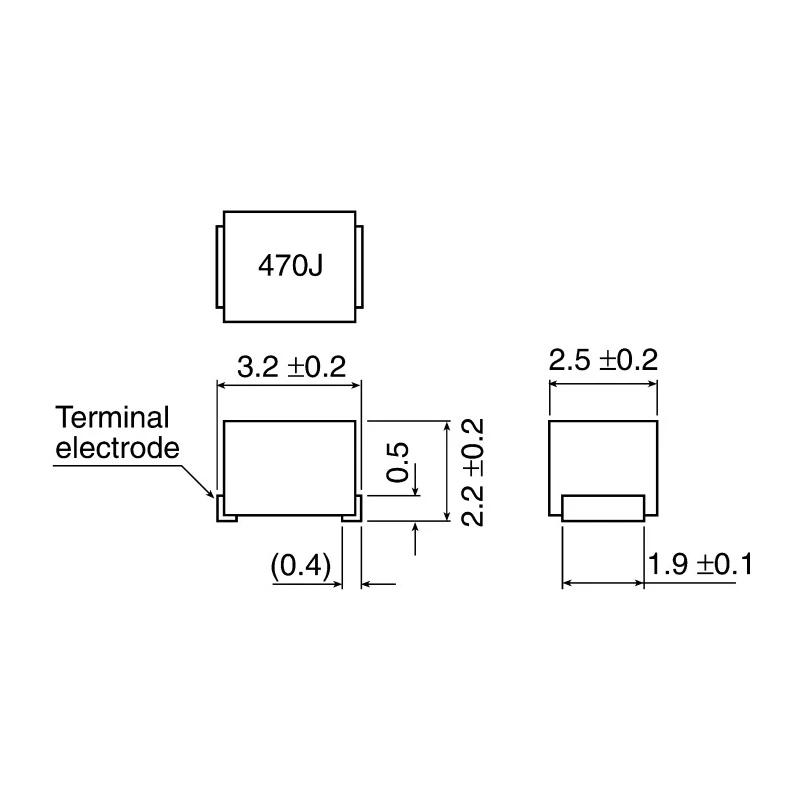

The dimensions of the 1210 package are 3.2 mm in length, 2.2 mm in height, and 2.5 mm in depth.
The operating temperature range is from -40°C to +105°C.
It features a ferrite core for effective magnetic shielding.
The inductor has a minimum quality factor of 30, ensuring sharp frequency response.
The termination style is surface mount, suitable for efficient PCB assembly.
It is suitable for applications including TVs, VCRs, digital cameras, xDSL, car audio, ECU systems, and HDDs.
The maximum self-resonant frequency is 120 MHz.
The exterior is made of moulded thermoplastic resin, which provides heat resistance.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
The country of origin for this inductor is Japan.
