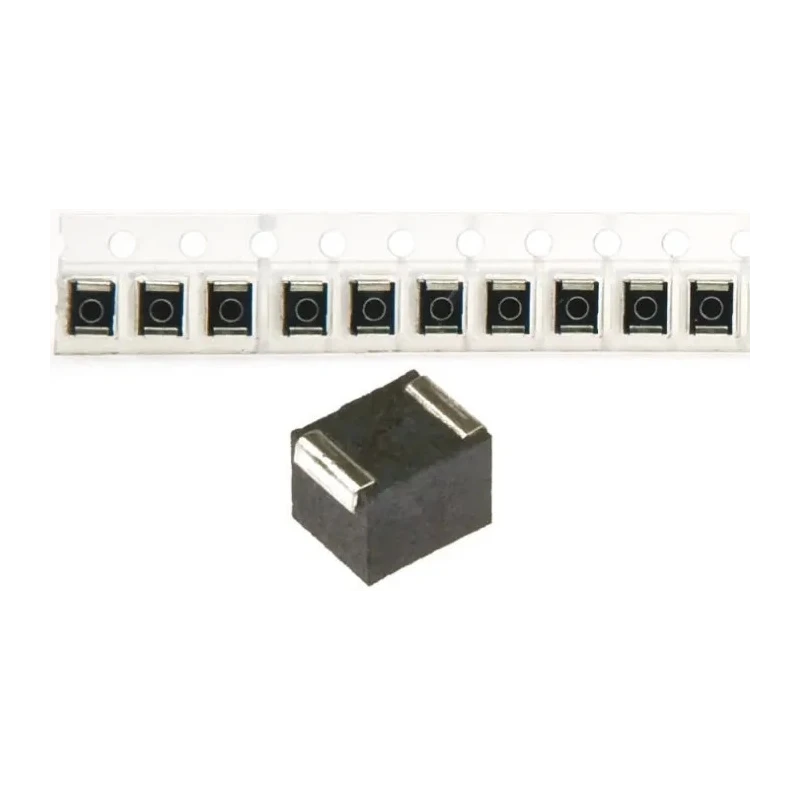

TDK 1210 Shielded Wirewound Surface Mount Inductor with Ferrite Core 47 μH ±5 % 60 mA Idc Q:30 NLV32T-470J-PF

TDK NLV32T-470J-PF is a 1210 size shielded wirewound surface mount inductor with a ferrite core delivering 47 μH inductance and ±5 % tolerance. This inductor is designed for high performance in various electronic applications requiring compact, reliable, and efficient components.

The inductor supports a maximum dc current of 60 mA and features a high quality factor of 30, providing sharp frequency response critical for signal line integrity. Its construction uses a ferrite core and wirewound technique for enhanced magnetic stability and minimal energy loss.

The shielded design effectively reduces electromagnetic interference, making it suitable for sensitive electronics like TVs, VCRs, digital cameras, xDSL modems, car audio systems, ECU modules, and hard disk drives (HDDs). The thermoplastic resin packaging offers high heat resistance, allowing operation up to 105°C and down to -40°C for improved durability under harsh conditions.

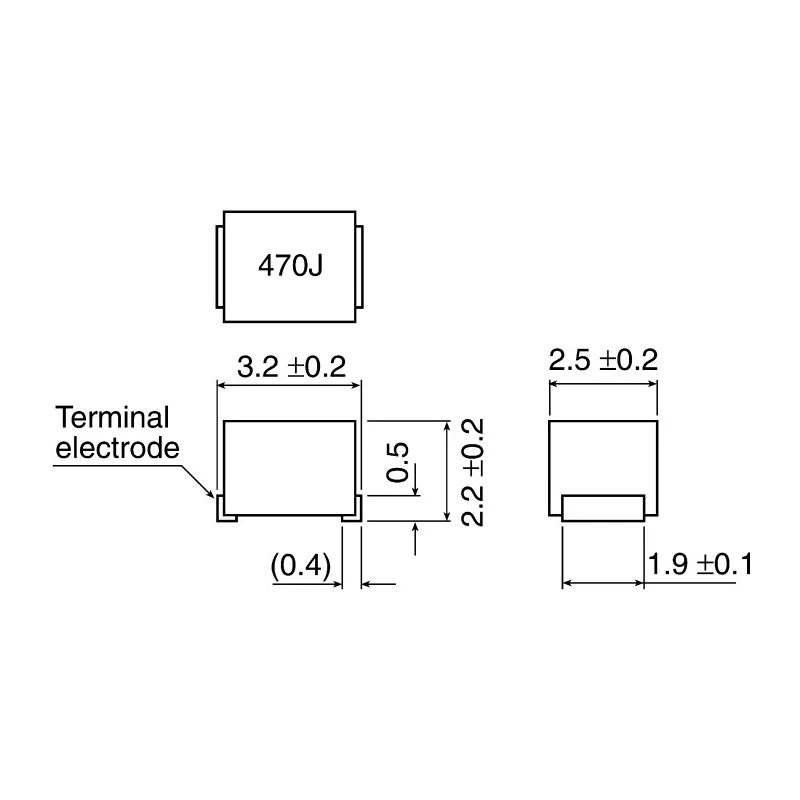

Measuring 3.2 mm in length, 2.5 mm in depth, and 2.2 mm in height, this compact 1210 footprint component is suitable for modern surface mount technology (SMT) assembly lines. The inductor’s pins count of two and surface mount termination style simplify automated manufacturing processes.

Compliant with RoHS directives, the NLV32T-470J-PF supports environmental and regulatory standards for reduced hazardous substances. Its maximum self-resonant frequency is 15 MHz, and the maximum dc resistance is limited to 7 Ω, optimizing performance in power and signal applications.

Constructed with a ferrite core to ensure stable magnetic properties. Provides shielding to minimize electromagnetic interference. Compact 1210 package size suitable for surface mount applications. Offers a maximum operating temperature of 105°C for reliable performance.

Low maximum dc resistance of 7Ω improves efficiency. Designed for various electronic devices such as TVs, VCRs, digital cameras, and automotive ECU systems. Features a wirewound construction with surface mount termination style.

Complies with RoHS standards ensuring environmental safety. Has a moulded thermoplastic resin exterior enhancing heat resistance. Operates within a temperature range of -40°C to +105°C.

This inductor is ideal for use in industrial, consumer electronics, automotive electronics, telecommunications, and computer hardware sectors. It is supplied on reels, facilitating efficient insertion into machinery and improving production efficiency. Explore more Surface Mount Inductors for high-quality, reliable components at EnvMart.
