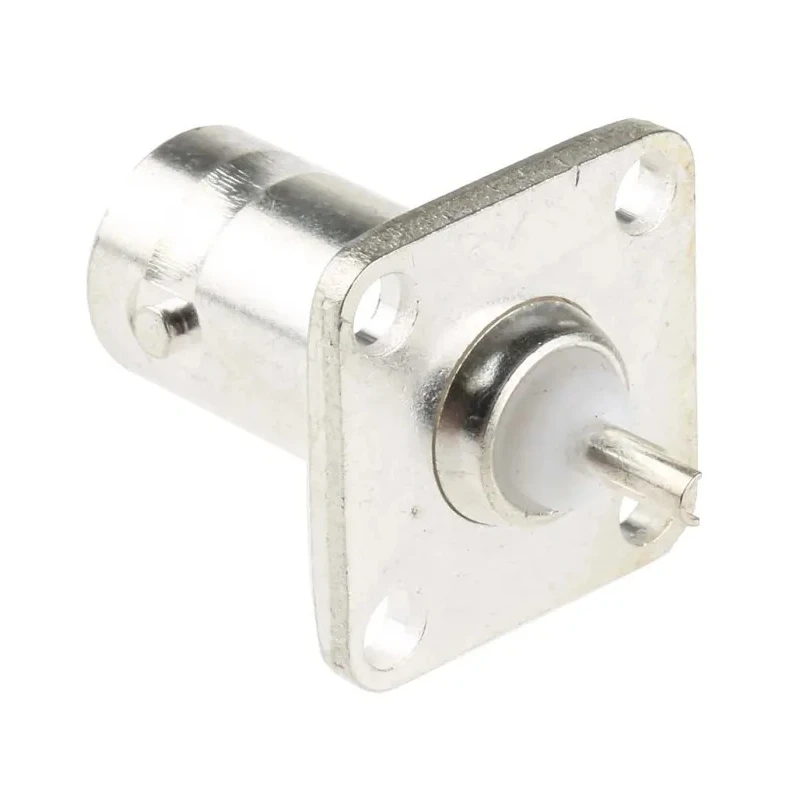

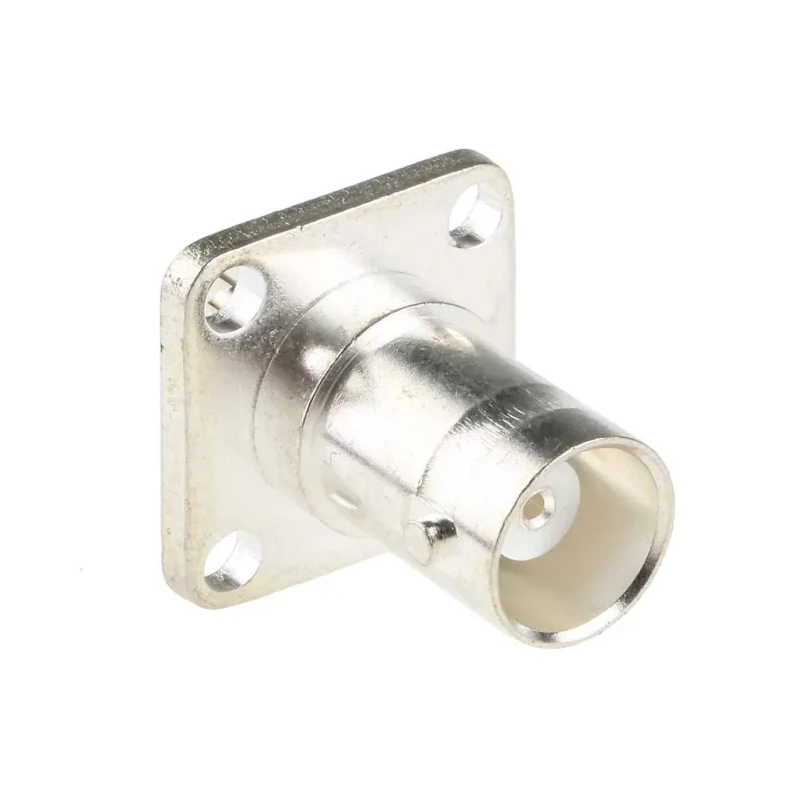

RS PRO Coaxial Connector Flange Female BNC, 50 Ω, Straight Body Solder 546-4487
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 546-4487 |
| Mount Type | Flange |
| Operating Frequency | 4GHz |
| Contact Material | Copper |
| Series | RS PRO |
| Termination Type | Solder |
| Maximum Operating Temperature | 165°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 50Ω |
| Contact Plating | Silver |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Silver |
| • Insulation material | PTFE |
| RS PRO Coaxial Connector Panel Mount Female BNC, 50 Ω, Straight Body SolderBrand | RS PRO |
| BNC strt panel mnt skt,50?,solder bktBrand | RS PRO |
Key Features
- The connector features a solid integrated flange for secure panel mounting.
- Silver-plated contacts ensure excellent conductivity.
- Termination is by solder pin method for reliable connections.
- Suitable for operating frequencies up to 4GHz with a temperature range from -65°C to 165°C.
- It features a robust nickel-plated body and PTFE insulation for durability and performance.
- Designed for use with coaxial cables in various RF signal transmission applications.
- The bayonet coupling system provides secure and convenient mating.
- Ideal for antenna connections, telecom, broadcast, medical equipment, and CCTV installations.
Product Description
RS PRO 546-4487 Coaxial Connector Flange Female BNC is a high-quality coaxial connector manufactured for demanding RF signal applications. It operates at an impedance of 50 Ω and supports frequencies up to 4GHz.
This panel mount connector features a solid, integrated flange for a secure fit to panels and devices. The body is robust nickel plated, ensuring mechanical strength and corrosion resistance while maintaining excellent signal integrity.
The female BNC connector includes silver-plated copper contacts for high conductivity and low loss. The termination utilizes a solder pin method, providing a reliable and stable connection for coaxial cables. PTFE insulation material adds to the connector's stability and performance reliability.
The connector is rated for a broad temperature range from -65°C to 165°C, making it suitable for varied industrial and commercial environments.
Common industrial applications include antenna connections for radio and television, telecom and satcom systems, medical device instrumentation, and CCTV video surveillance setups. The bayonet coupling mechanism ensures quick and secure cable connections in the field.
The connector has a solid integrated flange for panel fixings. Silver plated contacts for excellent electrical conductivity. Termination by solder pin ensures secure cable attachment. Operates at 50 Ω impedance and frequencies up to 4GHz.
Robust nickel plated body with PTFE insulation. Wide temperature tolerance from -65°C to 165°C for reliability. Used in telecommunications, broadcast, medical, and CCTV applications. Bayonet coupling system for secure and easy mating.
Select RS PRO products to access rigorously tested components trusted worldwide for high quality and industry compliance. This Coaxial Connector is an excellent choice for professional RF and signal transmission infrastructure.
Explore more connectors and electronic components in the RS PRO series at EnvMart for your industrial and commercial project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates at an impedance of 50 Ω, making it suitable for various RF signal applications.
It supports operating frequencies up to 4GHz, allowing for efficient signal transmission in RF applications.
The connector utilizes a solder pin termination method, ensuring a reliable and stable connection for coaxial cables.
It features a robust nickel-plated body, silver-plated copper contacts for high conductivity, and PTFE insulation for stability and performance.
It can operate within a temperature range from -65°C to 165°C, suitable for various industrial environments.
This coaxial connector is designed for panel mounting, featuring a solid integrated flange for secure installation.
It is commonly used in antenna connections, telecommunications, broadcast systems, medical devices, and CCTV installations.
It features a bayonet coupling system, which provides secure and convenient mating for cable connections.
The connector has a female contact gender, designed to connect with male counterparts in coaxial applications.
The connector is classified as standard size, making it compatible with a wide range of panel mounting applications.
The country of origin for this product is Taiwan, where it is manufactured to meet industry standards.
This model has a straight orientation, which is typical for coaxial connectors used in various applications.
