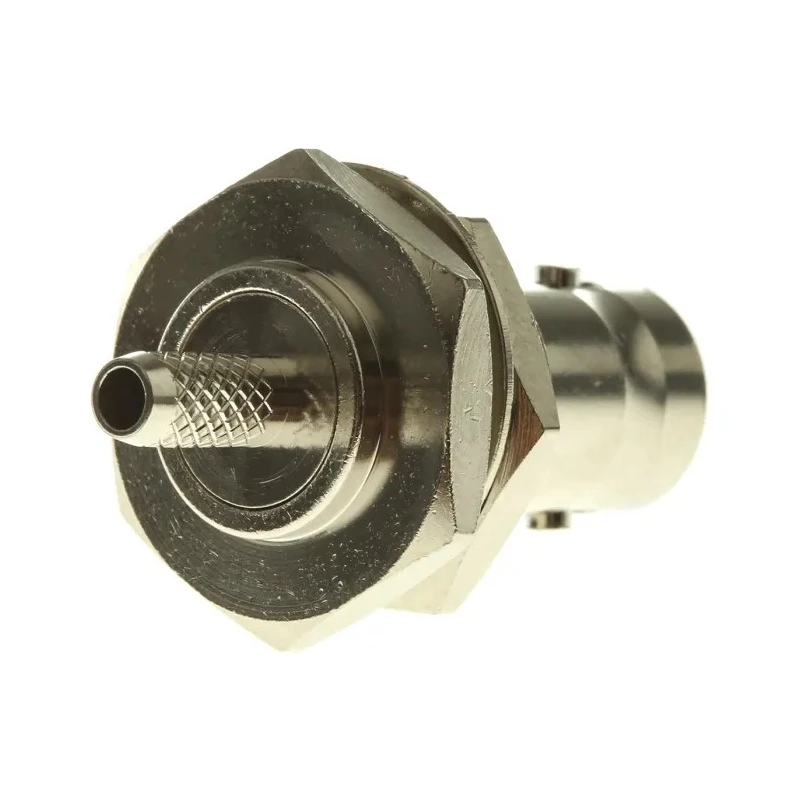

RS PRO Coaxial Connector Panel Mount Female BNC 75 Ω Straight Body Crimp 546-3923
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 546-3923 |
| Mount Type | Panel Mount |
| Operating Frequency | 1GHz |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Cable Type | RG179 |
| Minimum Operating Temperature | -65°C |
| Polarity | Normal |
| Impedance | 75Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| • Insulation material | PTFE |
| RS PRO, jack Panel Mount, 75Ω, Crimp Termination, Straight BodyBrand | RS PRO |
Key Features
- This connector features a nickel-plated body for durability and corrosion resistance.
- Gold-plated brass contacts ensure excellent conductivity and long service life.
- Designed for RG179 cable compatibility and suitable for operating frequencies up to 1 GHz.
- Includes a bulkhead mount with a screw-on nut for secure panel installation.
- Features a PTFE insulator providing reliable electrical insulation.
- Operates within a temperature range of -65°C to 85°C ensuring robust performance in diverse environments.
- Employs a reliable bayonet coupling mechanism typical of BNC connectors.
- Ideal for RF signal applications including antenna connections, telecom, CCTV, satcom, and medical equipment.
Product Description
RS PRO 546-3923 is a high-quality coaxial connector designed for panel mounting with a female BNC interface. This 75 Ω impedance connector features a straight body crimp termination suitable for RG179 cables. Its nickel-plated body provides heavy-duty build quality while ensuring corrosion resistance in harsh environments. The gold-plated brass contact pins offer excellent conductivity and enhanced durability over extended use. The PTFE insulator increases reliability by providing superior electrical insulation.
The connector supports operating frequencies up to 1 GHz and operates effectively within temperature ranges from -65°C to 85°C, making it suitable for diverse industrial and laboratory applications.

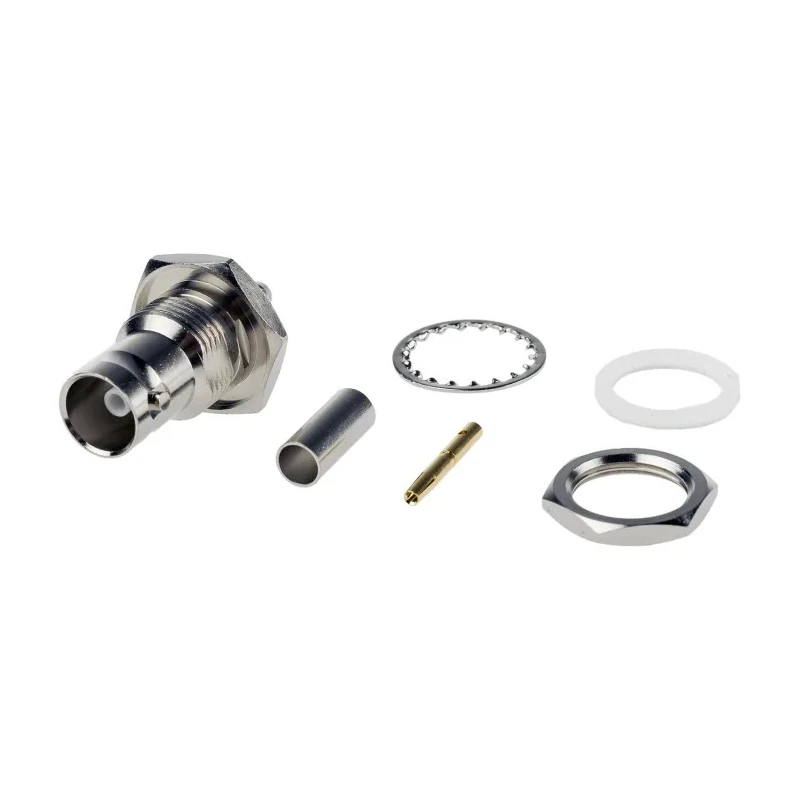

Its bulkhead design includes a secure screw-on nut allowing for reliable panel mounting in electronic enclosures. The typical bayonet coupling mechanism offers quick and secure cable connections.
This connector is widely used across multiple RF signal applications, including antenna connections, telecom systems, cable modems, satellite communication, CCTV installations, and medical equipment setups requiring robust electrical performance.
Nickel-plated body enhances durability and corrosion resistance. Gold-plated brass contacts provide maximum efficiency and conductivity. Compatible with RG179 coaxial cable, optimized for 75 Ω impedance. Crimp termination ensures reliable cable connection.
Operating frequency up to 1 GHz meets RF signal requirements. PTFE insulation material improves electrical isolation. Wide operating temperature range from -65°C to 85°C. Bulkhead mount with screw nut for secure panel installation.
This RS PRO coaxial connector is suited for demanding industrial, telecommunications, broadcast, and medical applications requiring consistent signal integrity and rugged physical design. Explore more Coaxial Connectors and related RF components with RS PRO on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports operating frequencies up to 1 GHz, making it suitable for various RF signal applications.
It is designed for compatibility with RG179 coaxial cables, ensuring optimal performance at 75 Ω impedance.
The connector operates effectively within a temperature range of -65°C to 85°C, allowing for use in diverse environments.
The body is nickel-plated for corrosion resistance, while the contacts are made of gold-plated brass for excellent conductivity. It also features a PTFE insulator for reliable electrical insulation.
This model features a crimp termination type, ensuring a secure and reliable connection to the cable.
It is designed for panel mounting and includes a bulkhead mount with a screw-on nut for secure installation.
This connector has a female contact gender, making it suitable for connecting with male connectors.
The impedance of this model is rated at 75 Ω, which is standard for RF applications.
This connector features a straight body orientation, which is typical for BNC connectors.
It is widely used in RF signal applications, including antenna connections, telecom systems, CCTV installations, and medical equipment setups.
The body of this connector is nickel-plated, enhancing its durability and corrosion resistance.
The country of origin for this connector is Taiwan, indicating where it was produced.
