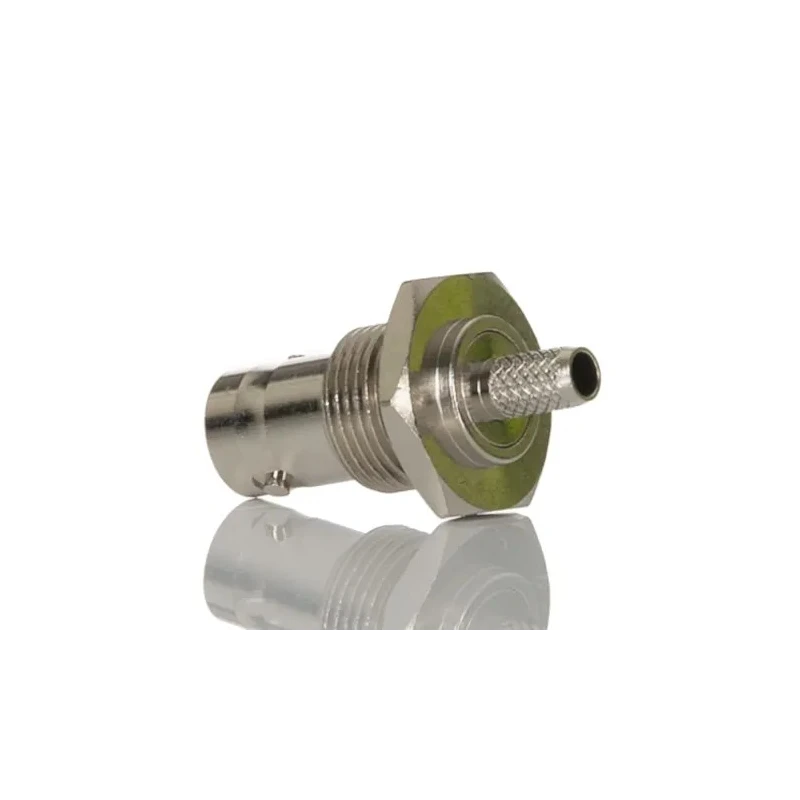

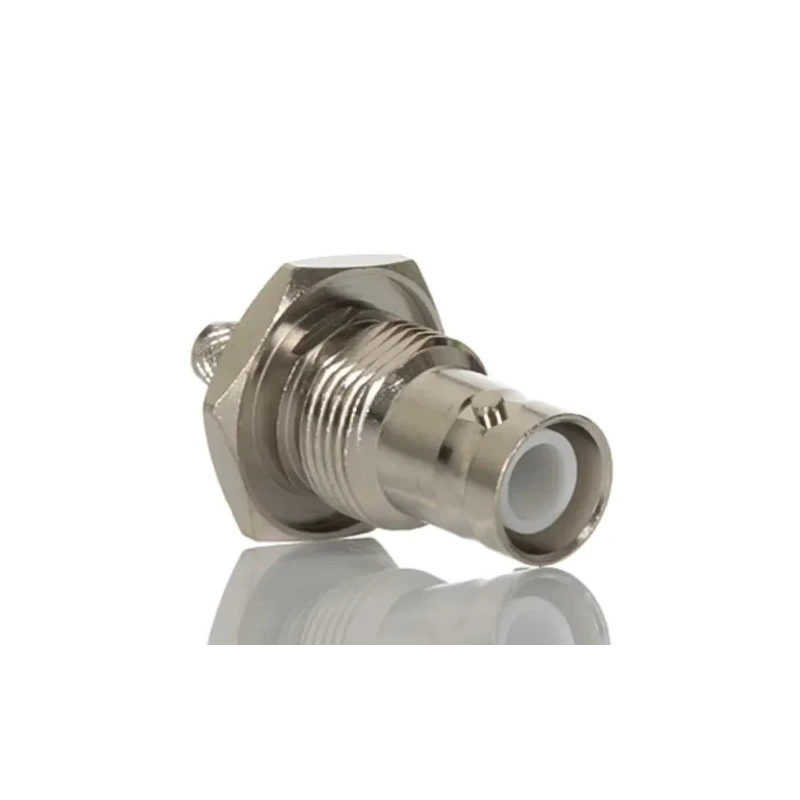

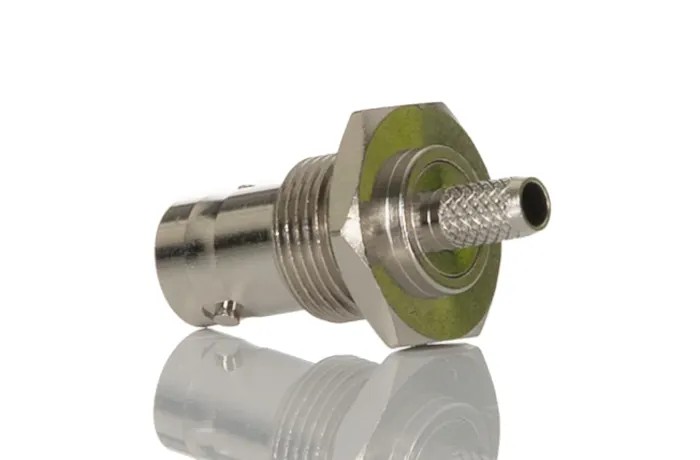

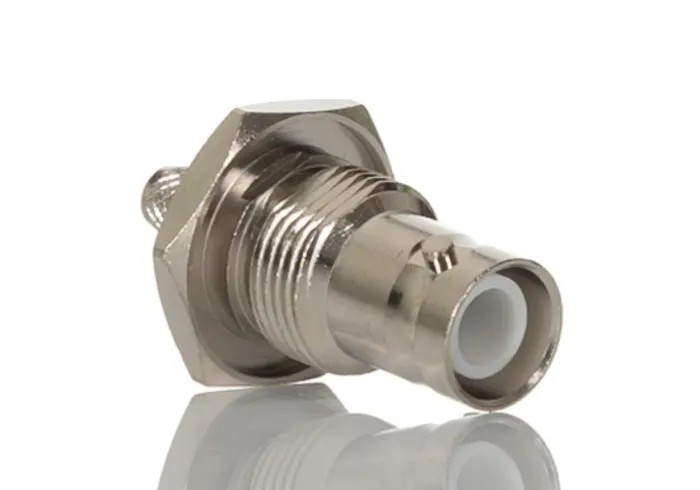

RS PRO Coaxial Connector Panel Mount Female BNC 50 Ω Straight Body Crimp 4GHz 85°C 546-2784
Specifications
| Country of Origin | Taiwan |
|---|---|
| Size | Standard |
| Brand | RS PRO |
| Orientation | Straight |
| Model | 546-2784 |
| Mount Type | Panel Mount |
| Operating Frequency | 4GHz |
| Contact Material | Brass |
| Series | RS PRO |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -65°C |
| Polarity | Reverse |
| Impedance | 50Ω |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel |
| RS PRO Coaxial Connector Panel Mount Female BNC, 50 Ω, Straight Body CrimpBrand | RS PRO |
Key Features
- The connector features a nickel-plated bulkhead body for durability.
- It has a gold-plated female contact ensuring excellent conductivity.
- Termination is by crimp method for secure cable connection.
- Reverse polarity design offers enhanced security against accidental mismating.
- Suitable for operating temperatures ranging from -65°C to 85°C.
- PTFE insulation material increases reliability and performance.
- The connector supports a voltage rating of 335V.
- Ideal for use in telecommunications, medical equipment, CCTV, and broadcast applications.
Product Description
RS PRO 546-2784 Coaxial Connector Panel Mount Female BNC is engineered for industrial and electronic use, offering a high-frequency connection at 50 Ω impedance and up to 4GHz operating frequency. This connector features a robust nickel-plated bulkhead body with a secure bayonet coupling mechanism typical of BNC connectors. It includes a gold-plated female contact made of brass that ensures excellent conductivity and a long service life, encapsulated in PTFE insulation for enhanced electrical reliability.

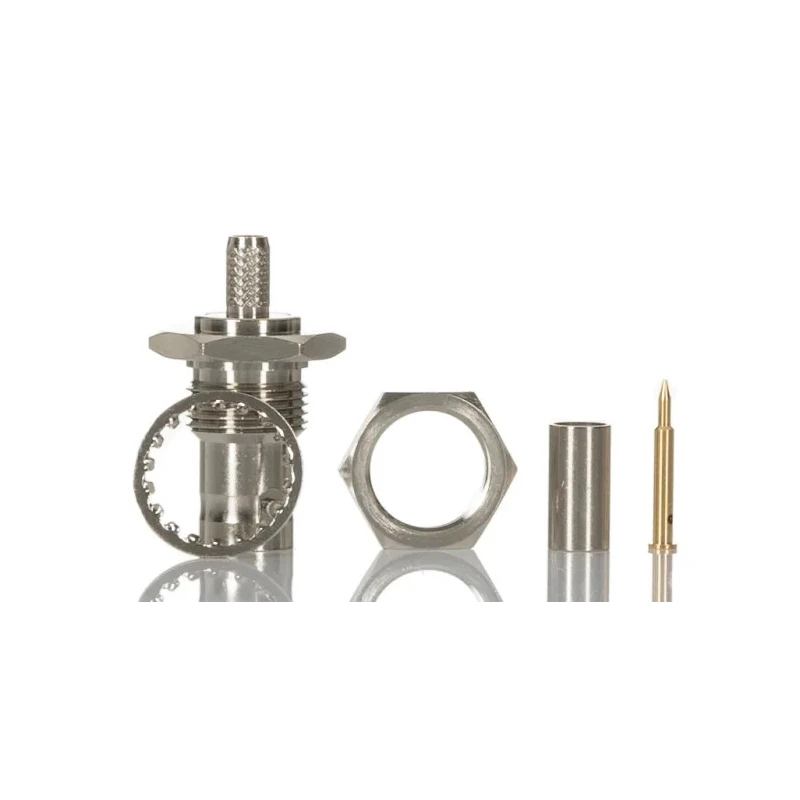

Designed with a reverse polarity to prevent accidental connection with standard BNC plugs, this crimp termination style panel mount connector is straightforward to install onto panels or chassis with its screw-on nut bulkhead design.
The connector operates effectively in harsh temperature environments from -65°C to 85°C and supports a voltage rating up to 335V. These specifications make it suitable for a wide variety of applications including telecommunications infrastructure, medical and test equipment, satellite communication, CCTV camera systems, and broadcast equipment.
The RS PRO series represents professional-grade components delivering reliability and performance essential in demanding environments. Nickel-plated bulkhead body ensures mechanical strength and corrosion resistance. Gold plated female contact enhances signal integrity and conductivity.
Reverse polarity design adds connection security by preventing mismating. Crimp termination provides a reliable and secure cable end connection. High operating frequency capability of 4GHz supports advanced RF applications.
Wide temperature range suitability from -65°C to 85°C. Voltage rating of 335V meets typical electronic application demands. PTFE insulation material improves durability and signal stability.
This connector is ideal for industrial, laboratory, telecommunications, HVAC, manufacturing, and commercial electronic systems requiring stable and durable RF connections. For comprehensive product selections, browse the RS PRO category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This BNC connector supports a maximum operating frequency of 4GHz, making it suitable for high-frequency applications.
The impedance rating of this connector is 50Ω, which is standard for many RF applications.
This model operates effectively in temperatures ranging from -65°C to 85°C, accommodating various environmental conditions.
It utilizes a crimp termination method, providing a secure connection for cables.
The contact is made of brass and is gold-plated to enhance conductivity and signal integrity.
The reverse polarity design helps prevent accidental mismating with standard BNC plugs, enhancing connection security.
The body of this connector is nickel-plated, which provides mechanical strength and corrosion resistance.
It is suitable for telecommunications, medical equipment, CCTV, and broadcast applications due to its reliable performance.
This connector is a female type, designed for panel mount applications.
The country of origin for this connector is Taiwan.
This connector is classified as a standard size, suitable for typical installation requirements.
It features PTFE insulation material, which enhances reliability and performance in electrical applications.
