| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 1.85mm |
| Length | 4.25mm |
| Model | BZX79-C18,113 |
| Mount Type | Through Hole |
| Series | BZX79 |
| Maximum Operating Temperature | 200°C |
| Package Type | SOD-27 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 18V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 45Ω |
| Typical Voltage Temperature Coefficient | 14.4mV/°C |
| 18V Zener diode,BZX79C18 500mWBrand | NXP |

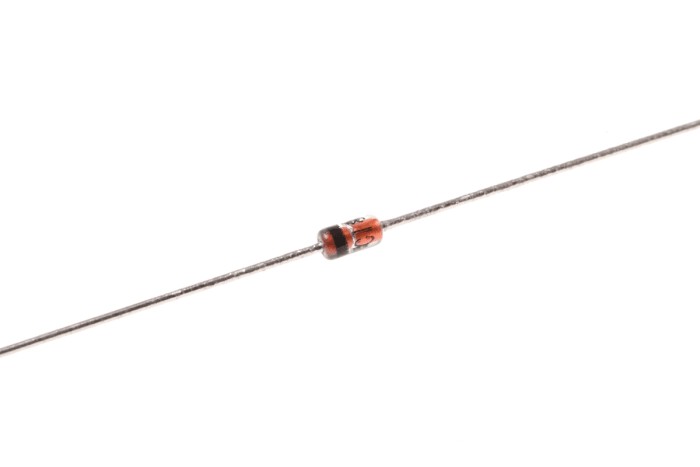

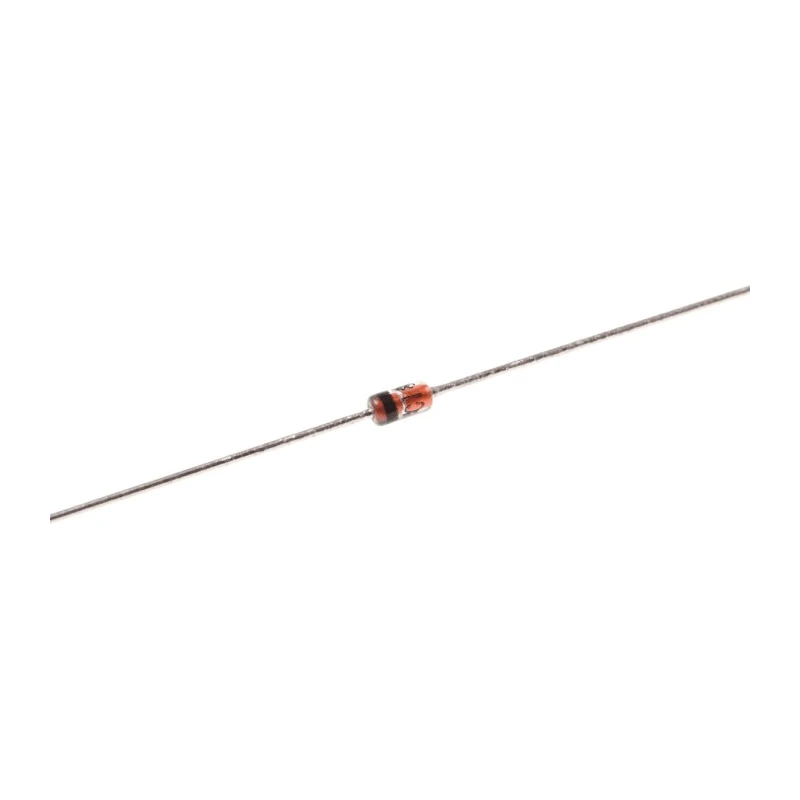

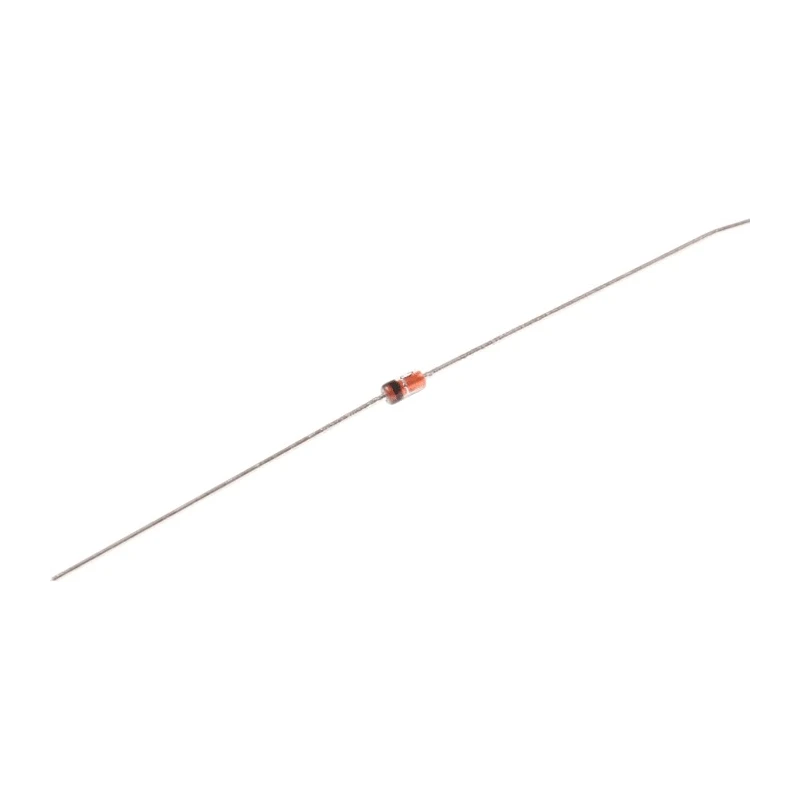

Nexperia BZX79-C18,113 18 V Zener Diode is engineered for voltage regulation in electronic circuits, offering a nominal Zener voltage of 18 volts and power dissipation of 500 mW. This single diode features a through hole, 2-pin SOD-27 package design suitable for robust mounting on printed circuit boards.
Capable of operating within a wide temperature range from -65°C to 200°C, the diode maintains reliable performance across harsh industrial and commercial applications. Its low maximum reverse leakage current of 50 nA and maximum Zener impedance of 45 Ω help minimize power loss and ensure steady voltage regulation.
The diode's voltage temperature coefficient is 14.4 mV/°C, which supports stable voltage levels even with temperature fluctuations. These qualities make the BZX79-C18,113 ideal for use in power supply circuits, voltage reference assemblies, and other industrial semiconductor applications.
Typical applications include electronic equipment protection, voltage stabilization in manufacturing systems, and use in measuring and control devices in laboratories and industrial environments.
Single diode configuration ensures precise voltage stabilization. Nominal Zener voltage of 18 V with ±5% tolerance for accurate application. Maximum power dissipation of 500 mW for stable performance. Through hole mount type with 2-pin SOD-27 package for easy PCB installation.
Maximum reverse leakage current of 50 nA minimizes power loss. Operating temperature range from -65°C to 200°C for diverse environments. Typical voltage temperature coefficient of 14.4 mV/°C for stable voltage under temperature variations.
Maximum Zener impedance of 45 Ω supporting consistent voltage regulation. Compact dimensions: 4.25 mm length and 1.85 mm height. Manufactured in China ensuring high production standards.
This Nexperia Zener Diode is supplied as new condition and conforms to typical quality standards expected in semiconductor manufacturing. Designed for enhancing electrical circuit reliability, it is an essential component in electronic assembly and repair.
