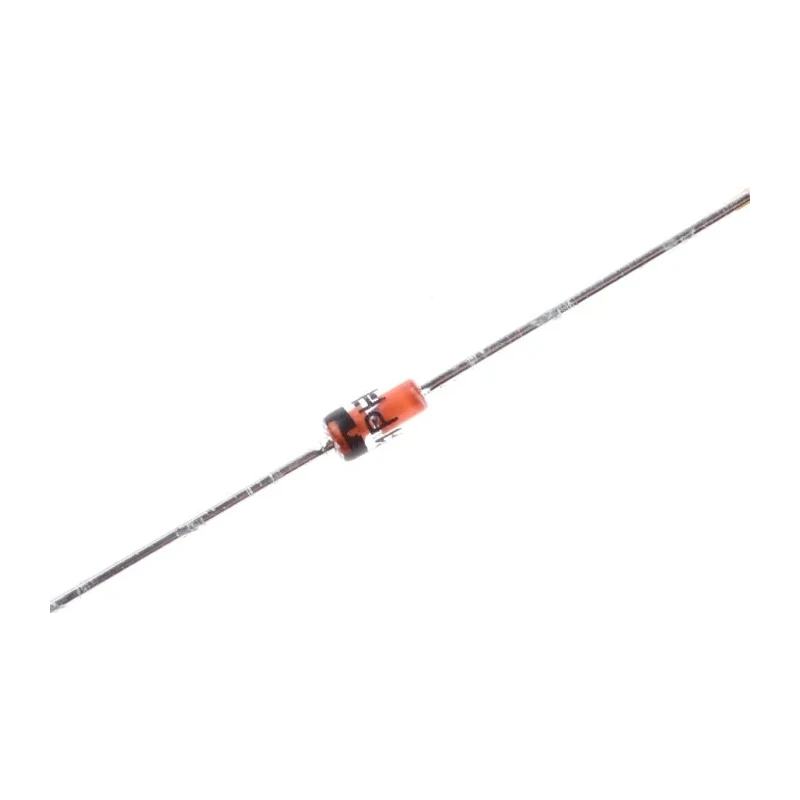

Nexperia 9.1 V 500 mW Zener Diode Single Through Hole 2-Pin SOD-27 BZX79-C9V1,113

Free Delivery in India | Lowest Global Shipping Charges

Nexperia 9.1 V 500 mW Zener Diode Single Through Hole 2-Pin SOD-27 BZX79-C9V1,113

Name: Nexperia 9.1 V 500 mW Zener Diode Single Through Hole 2-Pin SOD-27 BZX79-C9V1,113
Brand: Nexperia
SKU: 196853
Price: 0.05 USD
Availability: InStock



Category Zener Diodes Brand Nexperia Condition New

Specifications

Country of Origin	China
Brand	Nexperia
Height	1.85mm
Length	4.25mm
Model	BZX79-C9V1,113
Mount Type	Through Hole
Series	BZX79
Maximum Operating Temperature	200°C
Package Type	SOD-27
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	500nA
Nominal Zener Voltage Vz	9.1V
Zener Type	Voltage Regulator
Maximum Zener Impedance	15Ω
Typical Voltage Temperature Coefficient	5.5mV/°C
9.1V Zener diode,BZX79C9V1 500mWBrand	NXP

Key Features

Nominal Zener voltage of 9.1 V ensures accurate voltage regulation.
Maximum power dissipation of 500 mW enables reliable operation under rated power.
Through hole mount type and 2-pin SOD-27 package for easy PCB insertion.
Test current of 5 mA and maximum Zener impedance of 15 Ω enhance performance stability.
Wide operating temperature range from -65°C to 200°C supports industrial applications.
Low maximum reverse leakage current of 500 nA reduces power losses.
Compact dimensions with length 4.25 mm and height 1.85 mm for space-efficient design.

Product Description

Nexperia BZX79-C9V1,113 Zener Diode is a through hole mounted, 9.1 V voltage regulator diode with a power rating of 500 mW designed for discrete semiconductor applications. It features a single diode configuration in a compact SOD-27 2-pin package.

This component is ideal for voltage regulation and stabilization tasks in electronic circuits where precise voltage control is critical. With a nominal Zener voltage of 9.1 V and a tolerance of ±5%, the diode maintains reliable voltage clamping. The device supports an extensive operating temperature range from -65°C to 200°C, making it suitable for demanding industrial and commercial electronics.

The diode's test current is set at 5 mA, and it offers a maximum Zener impedance of 15 Ω, ensuring good regulation characteristics. Its maximum reverse leakage current is limited to 500 nA, which minimizes leakage and power consumption in standby modes.

Its small form factor with 4.25 mm length and 1.85 mm height simplifies integration into compact PCB designs. This high-quality diode from the BZX79 series is manufactured in China by Nexperia, known for electronic components suited for power and discrete semiconductor applications.

Nominal Zener voltage of 9.1 V ensures accurate voltage regulation. Maximum power dissipation of 500 mW enables reliable operation under rated power. Through hole mounting and 2-pin SOD-27 package for easy PCB insertion.

Wide operating temperature range from -65°C to 200°C supports industrial applications. Low reverse leakage current reduces power losses. Compact dimensions support space-efficient designs. Voltage regulator diode type suitable for stabilization circuits.

Test current of 5 mA and maximum impedance of 15 Ω enhance performance stability.

This Nexperia Zener diode is widely applicable in industrial, electronic manufacturing, power supply, and laboratory circuit design environments where precise voltage control is necessary. Browse EnvMart for similar high-quality electronic components and semiconductors.
