| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 1.85mm |
| Length | 4.25mm |
| Model | BZX79-C5V6,113 |
| Mount Type | Through Hole |
| Series | BZX79 |
| Maximum Operating Temperature | 200°C |
| Package Type | SOD-27 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 1μA |
| Nominal Zener Voltage Vz | 5.6V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 40Ω |
| Typical Voltage Temperature Coefficient | 1.2mV/°C |

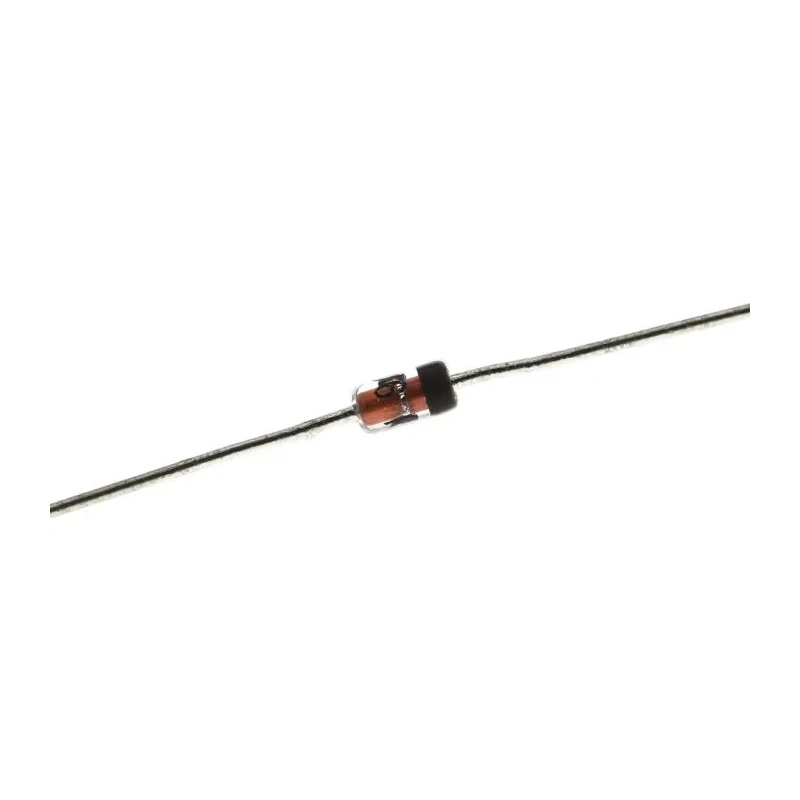

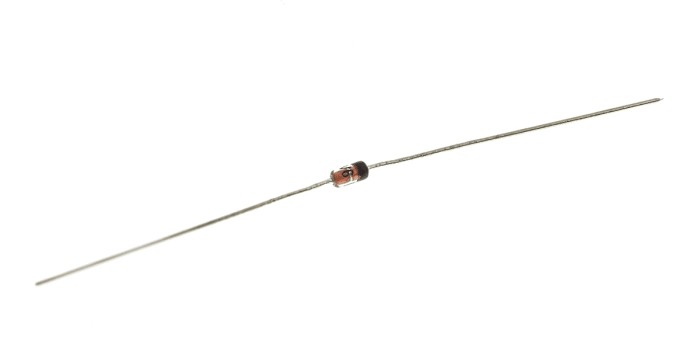

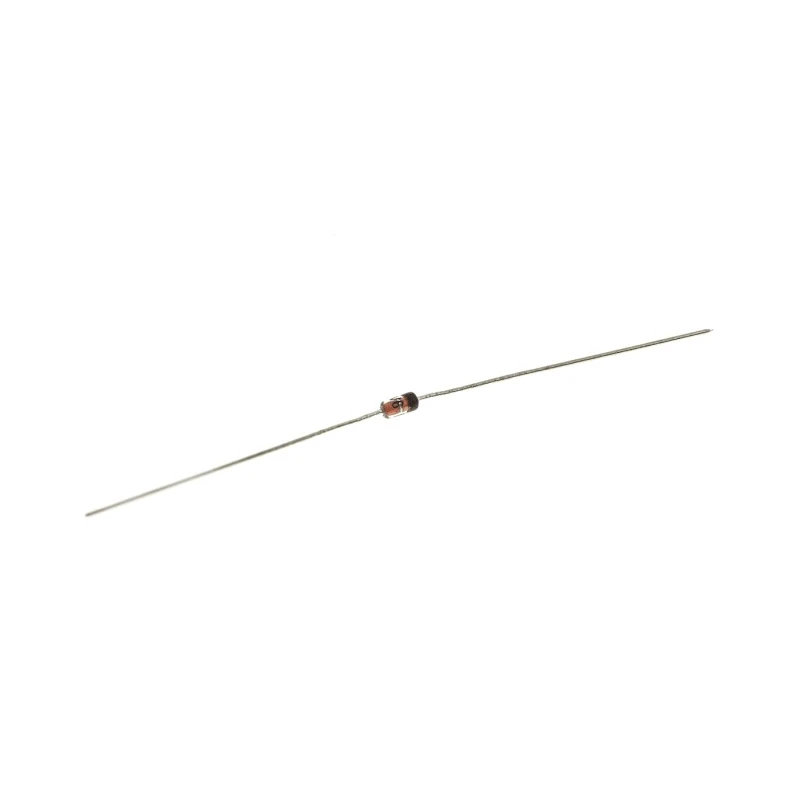

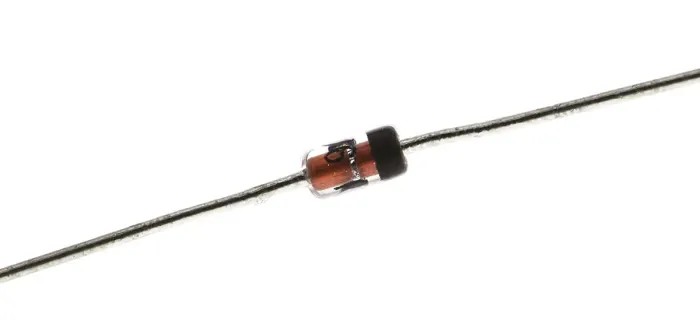

Nexperia BZX79-C5V6,113 single Zener diode is a high-quality voltage regulator component designed for reliable operation in electronic circuits requiring precise voltage stabilization at 5.6 V nominal Zener voltage. This diode supports a maximum power dissipation of 500 mW and a tight tolerance of ±5%, making it ideal for industrial, electronic components manufacturing, and laboratory semiconductor assemblies.
The diode's through-hole mount type with SOD-27 package and 2-pin configuration provides ease of installation in circuit boards, allowing efficient current flow and voltage control. Its small dimensions of 1.85 mm height and 4.25 mm length ensure compact PCB layouts without compromising performance.
Engineered to operate reliably within a broad temperature range from -65°C to 200°C, this diode maintains stable voltage regulation thanks to its 1.2 mV/°C typical voltage temperature coefficient. Its low maximum reverse leakage current of 1 µA and maximum Zener impedance of 40 Ω contribute to energy-efficient functioning with minimal loss.
This BZX79 series Zener diode is widely used in power supply regulation, overvoltage protection circuits, and other semiconductor-based electronic applications requiring steady voltage references.
This Zener diode operates with a test current of 5 mA for reliable voltage regulation. The package type is SOD-27 with a compact 2-pin design suitable for through-hole mounting. It features a maximum Zener impedance of 40 ohms and low reverse leakage current of 1 microampere.
Rated operating temperatures range from -65°C to 200°C for durable industrial applications. The diode has a height of 1.85 mm and length of 4.25 mm for easy PCB integration. Typical voltage temperature coefficient is 1.2 mV/°C ensuring stable voltage across temperature changes.
It is part of the BZX79 series optimized for voltage regulation in semiconductor circuits. Manufactured in China and suitable for various electronic and electrical semiconductor applications. Discover a broad range of semiconductor components in the Electronics & Electricals category at EnvMart for diverse industrial and commercial uses.
