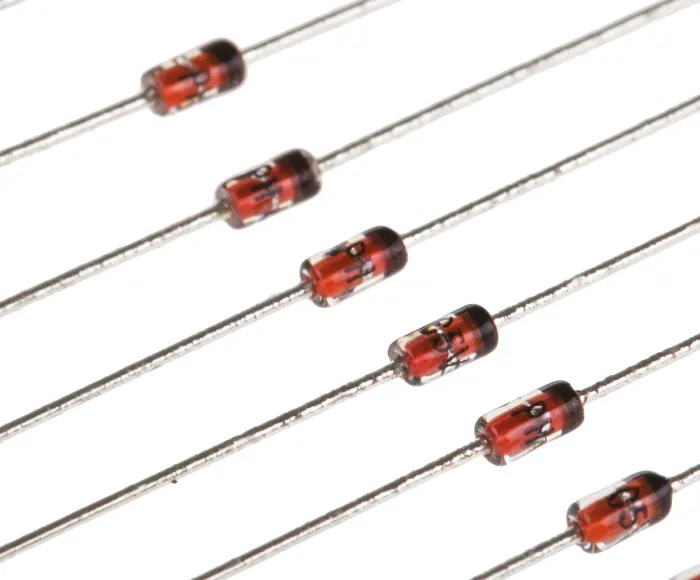

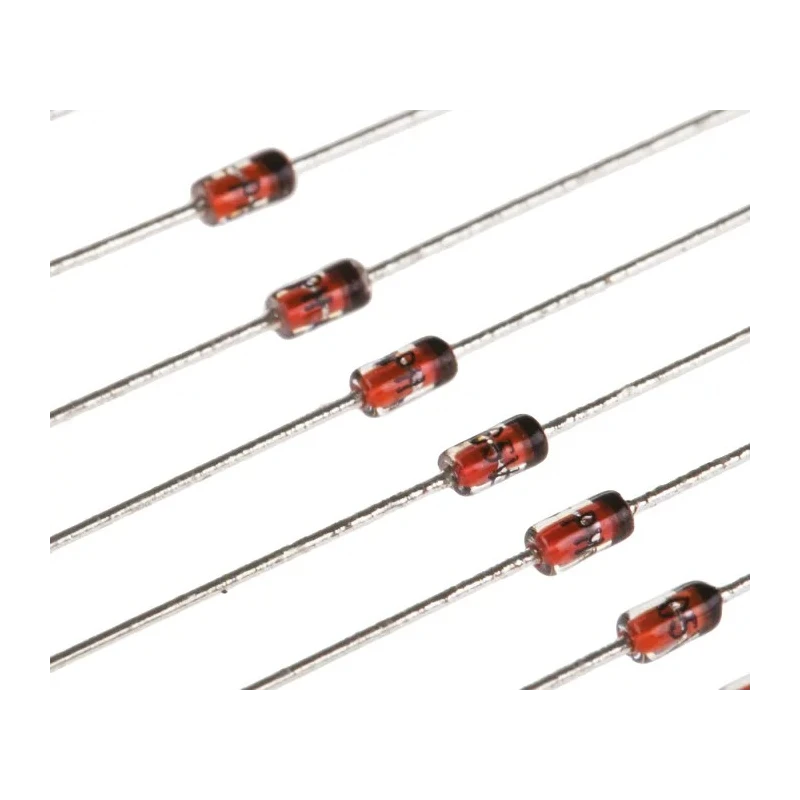

Nexperia 5.1 V 500 mW Through Hole 2-Pin SOD-27 Zener Diode BZX79-C5V1,113

Nexperia BZX79-C5V1,113 is a high-quality, single element Zener diode designed as a voltage regulator with a nominal Zener voltage of 5.1 V. It features a maximum power dissipation rating of 500 mW and a tolerance of ±5%, making it suitable for precise low-power voltage regulation applications.

This through-hole mounted device comes in a compact SOD-27 package with 2 pins, facilitating easy insertion into printed circuit boards. It is tested at a current of 5 mA and supports reliable operation with a maximum reverse leakage current of 2 μA.

The diode has robust operating temperature limits ranging from -65°C up to 200°C, ensuring functionality under extreme thermal conditions. Its typical voltage temperature coefficient of -0.8 mV/°C enhances stability across varying temperatures. Physical dimensions of length 4.25 mm and height 1.85 mm enable integration in compact electronic designs.

Zener Diodes like this are widely employed in industrial, electronics, laboratory, and manufacturing sectors for voltage regulation, over-voltage protection, and circuit stabilization.

Nominal Zener voltage: 5.1 V with ±5% tolerance. Maximum power dissipation: 500 mW for low-power circuits. Package: Through-hole SOD-27 with 2 pins. Operating temperature range: -65°C to 200°C. Max reverse leakage current: 2 μA for minimal power loss.

Typical voltage temperature coefficient: -0.8 mV/°C. Compact size: 4.25 mm length, 1.85 mm height. Set includes a single Zener diode device as described. Explore the comprehensive range of semiconductor components available at EnvMart to meet all industrial and electronic circuit design needs.
